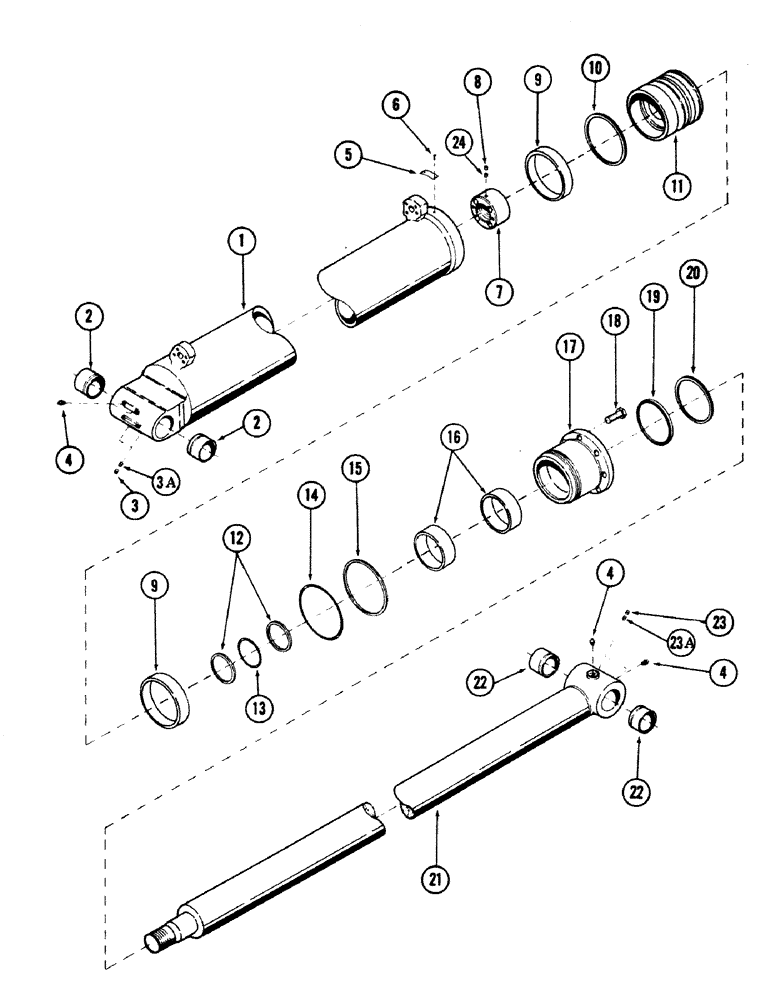

Запчасти Case 50 (8-218) - TOOL CYLINDER, (6.50" ID X 36.30" STROKE) (08) - HYDRAULICS

S955021

CYLINDER, tool, Includes: Ref. 1 - 24

1шт.

1

S608962

TUBE, cylinder, Includes: Ref. 2 and 3 53" L

1шт.

2

S229548

BUSHING

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

3

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FIITING, grease - 1/2" NPT x 45 degrees

2шт.

5

S107989

TAG, identification

1шт.

6

S23395

SCREW

drive - no. 7 NC x 5/16"

2шт.

7

S510006

NUT

locking

1шт.

8

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" NC x 3/8"

1шт.

9

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

Part of Seal Kit, P/N S613321

1шт.

10

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of Seal Kit, P/N S613321

1шт.

11

S511135

PISTON

1шт.

12

S114154

BACK-UP RING

RING, back up

2шт.

Part of Seal Kit, P/N S613321

1шт.

13

S6594

O-RING,2.484" ID x 2.762" OD x 0.139"

- 2.484" ID x 2.762" OD

1шт.

Part of Seal Kit, P/N S613321

1шт.

14

S6801

O-RING,5.975" ID x 6.525" OD x 0.275"

- 5.975" ID x 6.525" OD

1шт.

Part of Seal Kit, P/N S613321

1шт.

15

S114994

WASHER

backup

1шт.

Part of Seal Kit, P/N S613321

1шт.

16

S236422

OIL SEAL

RING, wear

2шт.

Part of Seal Kit, P/N S613321

1шт.

17

S511134

HEAD ASSY.

HEAD

1шт.

18

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

BOLT - 3/4" NC x 2-1/4" Gr 8

6шт.

19

S116473

SEAL

rod

1шт.

Part of Seal Kit, P/N S613321

1шт.

20

S104444

WIPER

1шт.

Part of Seal Kit, P/N S613321

1шт.

21

S511136

ROD ASSY.

ROD, Includes: Ref. 22 - 24

1шт.

22

S229548

BUSHING

2шт.

23

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

23

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

24

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set - 1/4" NC x 3/8"

1шт.

25

S613321

KIT

seal (Includes Ref. 9, 10, 12 thru 16, 19 and 20)

1шт.
