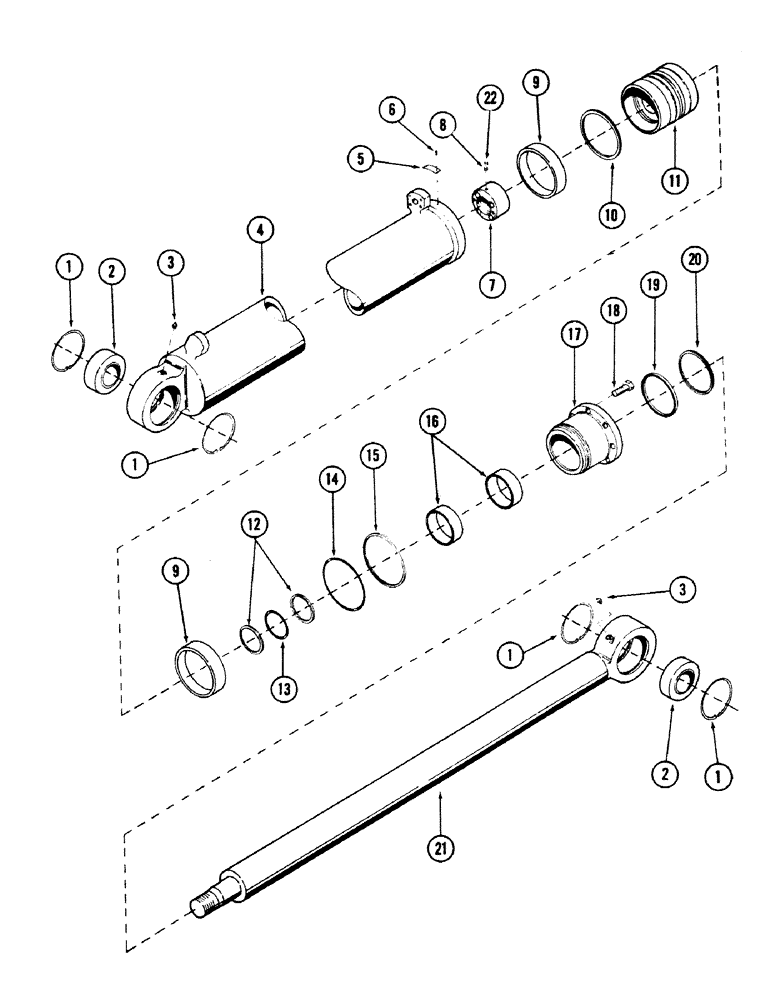

Запчасти Case 50 (8-216) - CROWD CYLINDER (08) - HYDRAULICS

S954307

CYLINDER

- crowd, Includes: Ref. 1 - 22

1шт.

1

S39325

RING

- retaining

4шт.

2

S104419

BUSHING

- self aligning

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITIING - grease, 1/8" NPT straight

2шт.

4

S608060

TUBE - cylinder 64.88" L

1шт.

5

S107989

TAG - identification

1шт.

6

S23395

SCREW

- drive, no. 7 NC x 5/16"

2шт.

7

S509529

NUT

- locking

1шт.

8

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4" NC x 3/8" (Cone point)

1шт.

9

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear

2шт.

Part of Seal Kit, P/N S613319

1шт.

10

S234198

SEAL

1шт.

Part of Seal Kit, P/N S613319

1шт.

11

S509527

PISTON

1шт.

12

S114155

OIL SEAL

RING - back up

2шт.

Part of Seal Kit, P/N S613319

1шт.

13

S6596

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- 2.734" ID x 3.012" OD

1шт.

Part of Seal Kit, P/N S613319

1шт.

14

S6803

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6.475" ID x 7.025" OD

1шт.

Part of Seal Kit, P/N S613319

1шт.

15

S114167

BACK-UP RING

RING - back up

1шт.

Part of Seal Kit, P/N S613319

1шт.

16

S236422

OIL SEAL

RING - wear

2шт.

Part of Seal Kit, P/N S613319

1шт.

17

S509525

HEAD

1шт.

18

28-1236

CAPSCREW,Hex, 3/4" - 16 x 2 1/4", Gr 8

BOLT - 3/4" x 2-1/4" NF hex (Grade 8)

10шт.

19

S116473

SEAL

- rod

1шт.

Part of Seal Kit, P/N S613319

1шт.

20

S104444

WIPER

1шт.

Part of Seal Kit, P/N S613319

1шт.

21

S509521

ROD

1шт.

22

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4" NC x 3/8" (Cup point)

1шт.

23

S613319

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

KIT - seal (Includes Ref. 9, 10, 12 thru 16, 19 and 20)

1шт.
