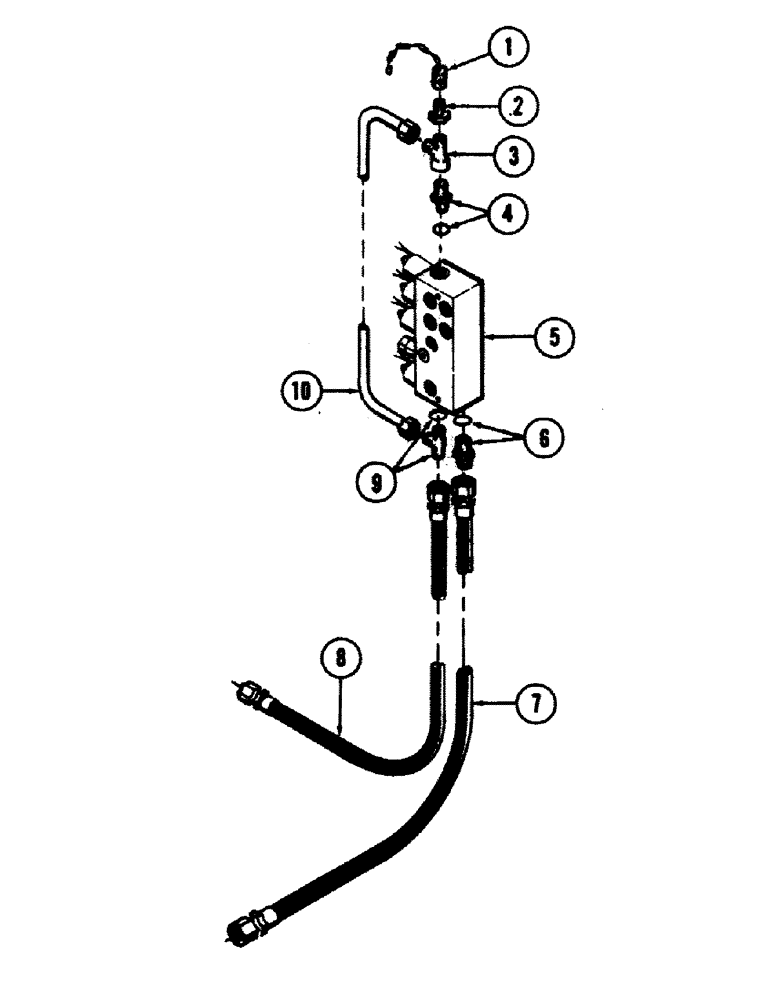

Запчасти Case 50 (8-212) - MONOBLOCK SUPPLY AND DRAIN TUBING (08) - HYDRAULICS

1

S206608

CAP

DISCONNECT, quick

1шт.

2

S206607

DISC

CAP, dust

1шт.

3

S114909

TEE

1шт.

4

218-5440

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared)

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

REF

INSTRUCTION

VALVE, solenoid monoblock (See Figure 8-166)

1шт.

6

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (5/8" tube) - 7/8" - 14 male x 9/16" - 18 male - 37 degree flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

S8578

HOSE

high pressure - 1/2" (12.7 MM) ID x 26" (660.6 MM) long - (With 7/8" - 14 female pressed on couplings)

1шт.

8

S227395

HOSE

high pressure - 3/8" ID (9.5 MM) x 21" (533.4 MM) long - (With 9/16" - 18 female pressed on couplings)

1шт.

9

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

S235979

TUBE, hydraulic 0.375" OD x 10.44, 2.06" L

1шт.
