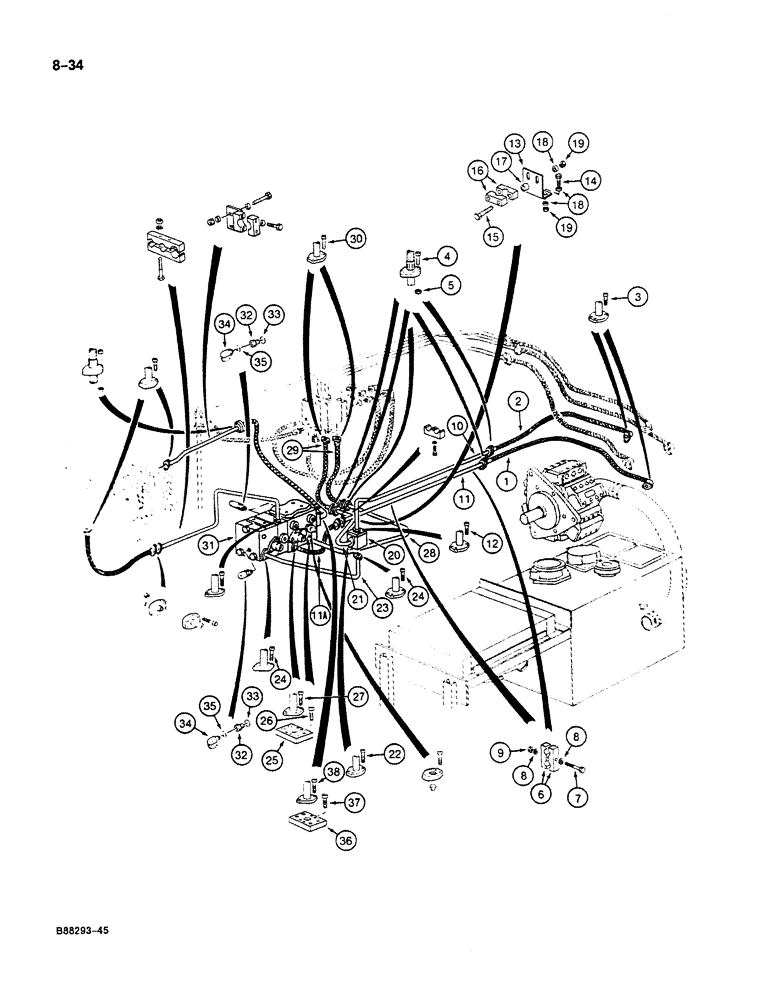

Запчасти Case 125B (8-034) - HYDRAULIC PUMP LINES, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

P4931957

HOSE

- pump to drive control valve, 31-1/2" (800 mm) long

1шт.

2

P1031966

HOSE

- pump to junction block, 25-5/8" (650 mm) long

1шт.

3

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Hose flange to hydraulic pump

4шт.

4

P1232958

SCREW

- hose to tube flange

10шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange screw

10шт.

6

P820353

SHIN

CLAMP - tube

4шт.

7

P133084

SCREW

BOLT - tube clamp

2шт.

8

P3528793

WASHER

SPACER - clamp bolt

4шт.

9

P34596

LOCK NUT

NUT - hex, clamp bolt

2шт.

10

P5349086

PIPE

TUBE - pump to junction block

1шт.

11

P6947174

PIPE

TUBE - pump to drive control block

1шт.

11a

P1031916

HOSE

- 25-5/8" (650 mm) long, pump to drive control valve

1шт.

12

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Tube flange at junction block

2шт.

13

P4625667

SUPPORT

BRACKET - clamp mounting

1шт.

14

P933818

SCREW

BOLT - mounting bracket

2шт.

15

P933808

SCREW

BOLT -, Serial Range: clamp-bracket

2шт.

16

P723438

SHIN

CLAMP - tube

2шт.

17

P4328730

WASHER

SPACER - clamp to mounting bracket

2шт.

18

P3528795

WASHER

SPACER - bracket and clamp bolt

6шт.

19

P34598

SAFETY NUT

NUT - hex, bracket and clamp bolt

4шт.

20

P537235

TEE

BLOCK - junction, tube

1шт.

21

P7347631

PIPE

TUBE - junction block to power sensing valve

1шт.

22

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Tube flange at junction block

2шт.

23

P7347630

PIPE

TUBE - junction block to swing control valve

1шт.

24

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to block and swing control valve Hex Soc Hd, M10 x 35, 10.9

4шт.

25

P637327

RESTRICTOR

PLATE - adapter, flange to drive control valve

2шт.

26

P532988

SCREW

- adapter plate

4шт.

27

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Tube flange

4шт.

28

P7347632

PIPE

TUBE - drive control valve to power sensing valve

1шт.

29

P1031916

HOSE

- at power sensing valve, 19-3/4" (500 mm) long

2шт.

30

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Hose flange

4шт.

31

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

32

P637358

RESTRICTOR

ADAPTER - test port

3шт.

33

P1230443

O-RING

- adapter

3шт.

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port

3шт.

34

NSS

NOT SOLD SEPARAT

BODY - disconnct

1шт.

35

P7046042

SEAL

WASHER - seal, disconnect

1шт.

36

P637324

RESTRICTOR

PLATE - hose flange adapter

1шт.

37

P532924

SCREW

- mounting, adapter, Serial Range: plate-valve

4шт.

38

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Mounting, tube to adapter Hex Soc Hd, M10 x 35, 10.9

2шт.
