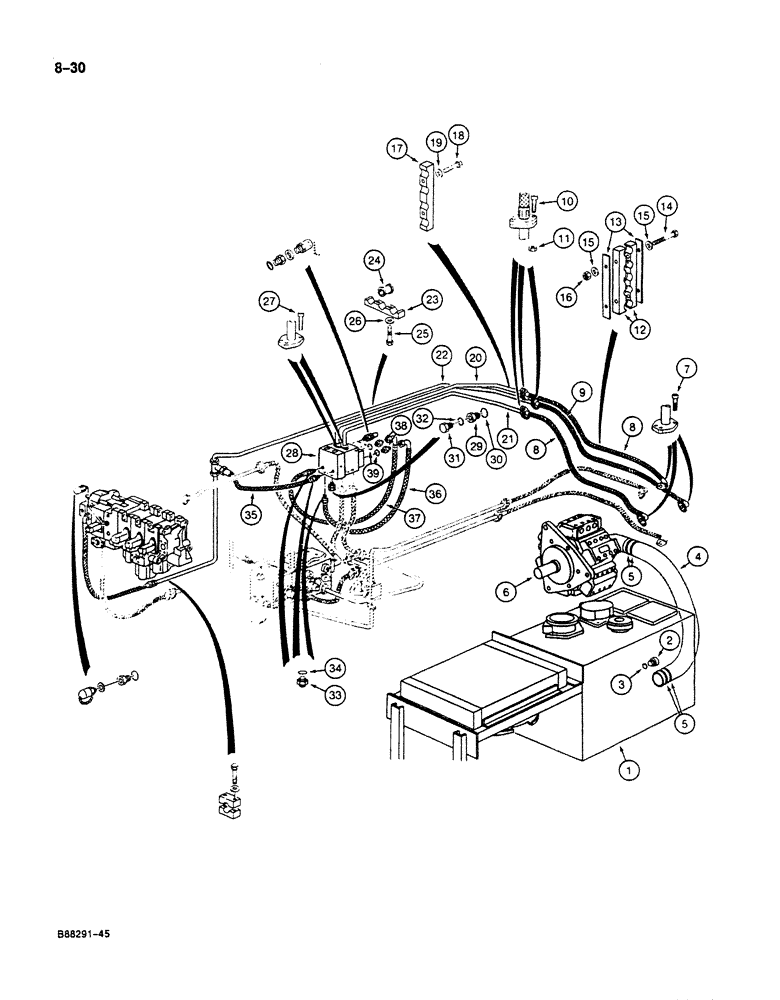

Запчасти Case 125B (8-030) - HYDRAULIC PUMP LINES, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, filters and gauges on Figure 8-2, mounting hardware on Figure 8-4

1шт.

2

P1737450

PLUG

- manifold, reservoir

1шт.

3

P130412

O-RING

- plug

1шт.

4

P5431906

LARGE HOSE

HOSE - suction, Serial Range: pump-reservoir

1шт.

5

P36946

COLLAR CLAMP

CLAMP - suction hose

4шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, parts list Figure 8-198

1шт.

7

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Hose flange Hex Soc Hd, M8 x 30, 10.9

6шт.

8

P4931957

HOSE

- pump to power sensing valve, 31-1/2" (800 mm) long

2шт.

9

P4931958

HOSE

- pump to attachment control valve, 39-3/8" (1000 mm) long

1шт.

10

P1232958

SCREW

- hose and tube flange

6шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange screw

6шт.

12

P4020337

SHIN

CLAMP - hose

2шт.

13

P2822860

PLATE

SPACER - hose clamp

2шт.

14

P933816

SCREW

BOLT - hose clamp

2шт.

15

P3528795

WASHER

SPACER - bolt

4шт.

16

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

17

P3220376

SHIN

CLAMP - tube

1шт.

18

P28374

SCREW

BOLT - tube clamp

2шт.

19

P3528793

WASHER

SPACER - tube clamp

2шт.

20

P5249109

PIPE

TUBE - to power sensing valve, upper

1шт.

21

P5249110

PIPE

TUBE - to power sensing valve, lower

1шт.

22

P6749120

PIPE

TUBE - to attachment control valve, at tee

1шт.

23

P2023420

SHIN

CLAMP - tube

1шт.

24

P741450

BUSHING

INSULATOR - tube

3шт.

25

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- tube clamp Hex, M10 x 35, 8.8, Full Thd

2шт.

26

P3528795

WASHER

SPACER - clamp bolt

2шт.

27

P0732978Q

SCREW

Tube flange Hex Soc Hd, M8 x 30, 10.9

4шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.

29

P637358

RESTRICTOR

ADAPTER - plug, power sensing valve

1шт.

30

P1230443

O-RING

- adapter

1шт.

31

P1737452

PLUG

- power sensing valve

1шт.

32

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

33

P2337591

UNION

ADAPTER - straight

3шт.

34

P1230443

O-RING

- adapter

3шт.

35

P31939

HOSE

- power sensing valve to tee, 19-5/8" (500 mm) long

1шт.

36

P4431999

HOSE

- crossover, power sensing valve, 19-3/4" (500 mm) long

1шт.

37

P4831901

HOSE

- crossover, power sensing valve, 31-1/2" (800 mm) long

1шт.

38

P3037546

UNION

ADAPTER - straight

2шт.

39

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.
