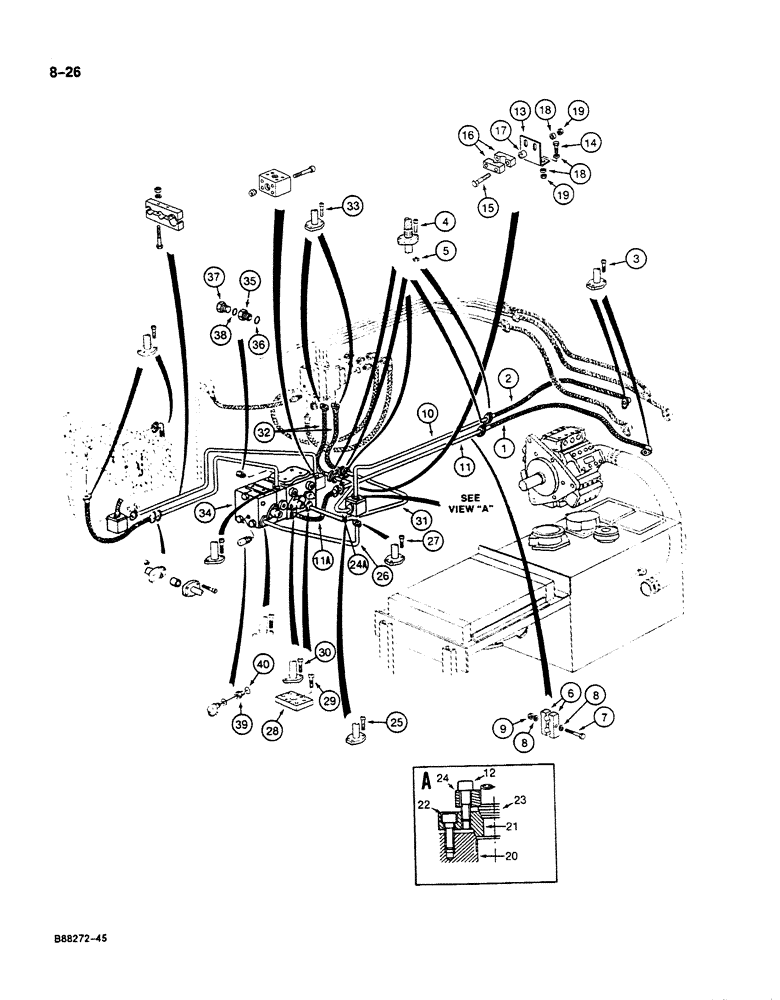

Запчасти Case 125B (8-026) - HYDRAULIC PUMP LINES, P.I.N. 74428, 74430 THROUGH 74433, 74435 THROUGH 74441, & 74446 THROUGH 74630 (08) - HYDRAULICS

1

P4931957

HOSE

- pump to drive control valve, 31-1/2" (800 mm) long

1шт.

2

P1031966

HOSE

- pump to junction block, 25-5/8" (650 mm) long

1шт.

3

P0732978Q

SCREW

Hose flange to hydraulic pump Hex Soc Hd, M8 x 30, 10.9

4шт.

4

P1232958

SCREW

- hose to tube flange

10шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange screw

10шт.

6

P820353

SHIN

CLAMP - tube

4шт.

7

P133887

SCREW

BOLT - tube clamp

2шт.

8

P3528793

WASHER

SPACER - clamp bolt

4шт.

9

P34596

LOCK NUT

NUT - hex, clamp bolt

2шт.

10

P5349086

PIPE

TUBE - pump to junction block

1шт.

11

P6947174

PIPE

TUBE - pump to drive control valve

1шт.

11a

P1031916

HOSE

- 25-5/8" (650 mm) long, pump to drive control valve

1шт.

Ref #11B - P731990 Hose is 650 mm

1шт.

Ref #11A - (Is 500 mm)

1шт.

12

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Tube flange Hex Soc Hd, M8 x 30, 10.9

2шт.

13

P4625667

SUPPORT

BRACKET - clamp mounting

1шт.

14

P933818

SCREW

BOLT - mounting bracket

2шт.

15

P933808

SCREW

BOLT -, Serial Range: clamp-bracket

2шт.

16

P723438

SHIN

CLAMP - tube

2шт.

17

P4328730

WASHER

SPACER - clamp to mounting bracket

2шт.

18

P3528795

WASHER

SPACER - bracket and clamp bolt

6шт.

19

P34598

SAFETY NUT

NUT - hex, bracket and clamp bolt

4шт.

20

P537235

TEE

BLOCK - junction, tube

1шт.

21

P637327

RESTRICTOR

PLATE - cover, block, if used

1шт.

22

P532988

SCREW

BOLT - hex socket head, plate to junction block, if used

2шт.

23

P37729

BUSHING

SLEEVE - tube, if used

1шт.

24

P724184

SHIN

FLANGE - tube, if used

1шт.

24a

P7347631

PIPE

TUBE - junction block to power sensing valve

1шт.

25

P0732978Q

SCREW

Tube flange Hex Soc Hd, M8 x 30, 10.9

2шт.

26

P7347630

PIPE

TUBE - junction block to swing control valve

1шт.

27

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to block Hex Soc Hd, M10 x 35, 10.9

4шт.

28

P637327

RESTRICTOR

PLATE - adapter, flange to drive control valve

2шт.

29

P532988

SCREW

- adapter plate

4шт.

30

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Tube flange Hex Soc Hd, M8 x 30, 10.9

4шт.

31

P7347632

PIPE

TUBE - drive control valve to power sensing valve

1шт.

32

P1031916

HOSE

- at power sensing valve, 19-3/4" (500 mm) long

2шт.

33

P0732978Q

SCREW

Hose flange Hex Soc Hd, M8 x 30, 10.9

4шт.

34

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

35

P637358

RESTRICTOR

ADAPTER - valve plug

2шт.

36

P1230443

O-RING

- adapter

2шт.

37

P1737450

PLUG

- valve

2шт.

38

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

2шт.

39

P637358

RESTRICTOR

ADAPTER - test port

1шт.

40

P1230443

O-RING

- adapter

1шт.
