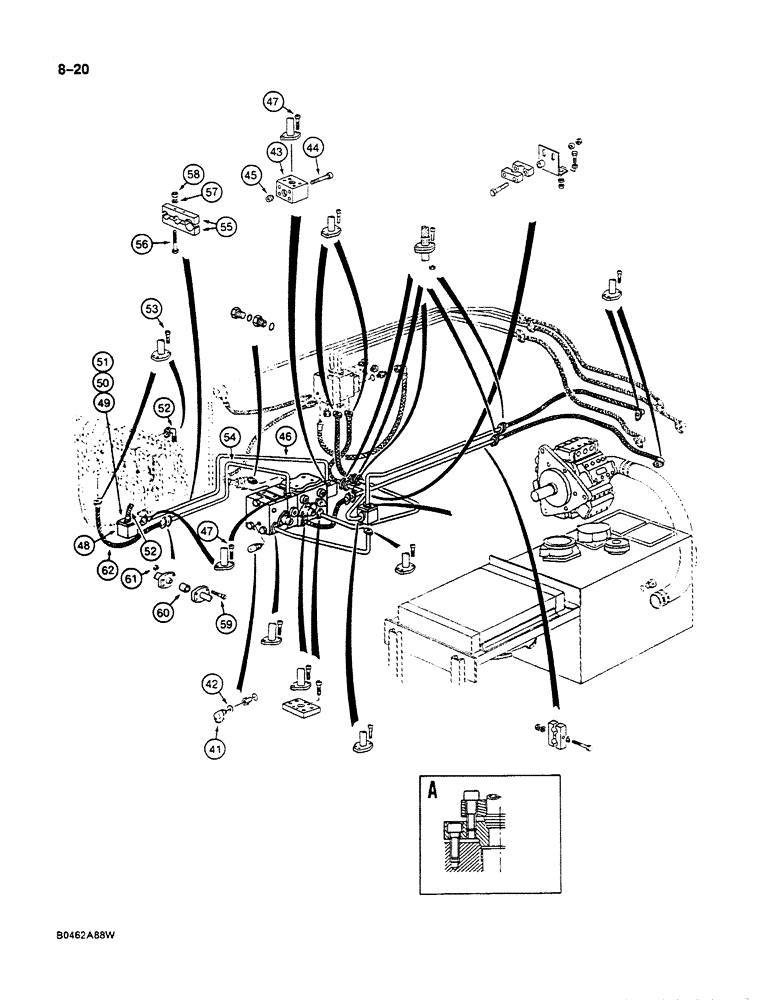

Запчасти Case 125B (8-020) - HYDRAULIC PUMP LINES, P.I.N. 74401 THROUGH 74427, 74429, 74434, AND 74442 THROUGH 74445 (08) - HYDRAULICS

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - disconnect

1шт.

42

P7046042

SEAL

WASHER - seal, disconnect

1шт.

43

P1337079

ANGLE

BLOCK - tube adapter

1шт.

44

P1032974

SCREW

- mounting, Serial Range: block-valve

4шт.

45

P1528830

JUNCTION

ADAPTER - block

1шт.

46

P5249112

PIPE,33.5 mm DIA

TUBE - drive control valve section to manifold block to attachment valve

1шт.

47

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange to valve and blocks Hex Skt Hd, M12 x 40, 10.9

6шт.

48

P937033

ANGLE

BLOCK - manifold, attachment valve, Serial Range: tube-hose

1шт.

49

P637325

RESTRICTOR

PLATE - adapter, manifold block

1шт.

50

P1232971

SCREW

BOLT - hex socket head, adapter plate

2шт.

51

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange to adapter plate Hex Soc Hd, M10 x 35, 10.9

2шт.

52

P3731962

HOSE

- 19-5/8" (500 mm) long, attachment control valve to manifold block

1шт.

53

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange to attachment control valve Hex Soc Hd, M10 x 35, 10.9

4шт.

54

P5249111

PIPE

TUBE - center block to attachment control valve

1шт.

55

P4020334

SHIN

CLAMP - tube

2шт.

56

P33824

SCREW

BOLT - tube clamp

2шт.

57

P3528795

WASHER

SPACER - clamp bolt

2шт.

58

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

59

P1232979

SCREW

- tube flange

2шт.

60

P1737758

JUNCTION

ADAPTER - tube flange to hose flange

1шт.

61

825-1408

NUT,M8, Cl 8

Flange screw M8, Cl 8

2шт.

62

P3731923

HOSE

- 21-13/16" (630 mm) long, at attachment control valve

1шт.
