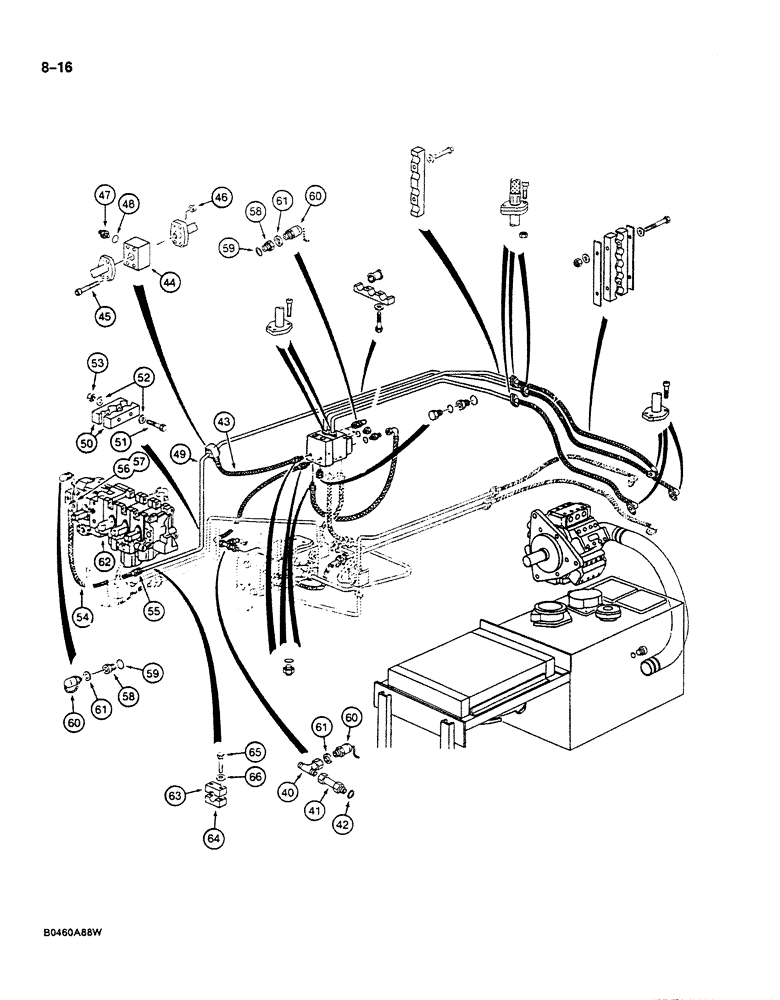

Запчасти Case 125B (8-016) - HYDRAULIC PUMP LINES, P.I.N. 74401 THROUGH 74427, 74429, 74434, AND 74442 THROUGH 74445 (08) - HYDRAULICS

40

P537294

TEE

- disconnect, at center block of drive and swing control valve

1шт.

41

P3037502

FITTING

TUBE - adapter, tee to center block

1шт.

42

P1230443

O-RING

- tube

1шт.

43

P31939

HOSE

- power sensing valve to adapter block, 24-3/4" (630 mm) long

1шт.

44

P3037751

JUNCTION

BLOCK - adapter, tube flange

1шт.

45

P1032912

SCREW

BOLT -, Serial Range: flanges-block

2шт.

46

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, at block

1шт.

47

NSS

NOT SOLD SEPARAT

ADAPTER - straight, at block

1шт.

48

P7046042

SEAL

- adapter

1шт.

49

P5249060

PIPE

TUBE - block to attachment control valve

1шт.

50

P4020333

SHIN

CLAMP - tube

2шт.

51

P33824

SCREW

BOLT - tube clamp

2шт.

52

P3528795

WASHER

SPACER - clamp bolt

4шт.

53

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

54

P3731942

HOSE

- to attachment control valve, 24-3/4" (630 mm) long

1шт.

55

P37554

UNION

ADAPTER - straight

1шт.

56

P3037501

UNION

ADAPTER - straight, at valve

1шт.

57

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

58

P637358

RESTRICTOR

ADAPTER - test port

2шт.

59

P1230443

O-RING

- adapter

2шт.

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port, Includes: Ref. 60 and 61

3шт.

60

NSS

NOT SOLD SEPARAT

BODY - disconnect

1шт.

61

P7046042

SEAL

WASHER - seal, disconnect

1шт.

62

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

63

P723438

SHIN

CLAMP - tube, upper half

1шт.

64

P2023481

SHIN

CLAMP - tube, lower half

1шт.

65

P833802

SCREW

BOLT - tube clamp

2шт.

66

P3528795

WASHER

SPACER - tube clamp

2шт.
