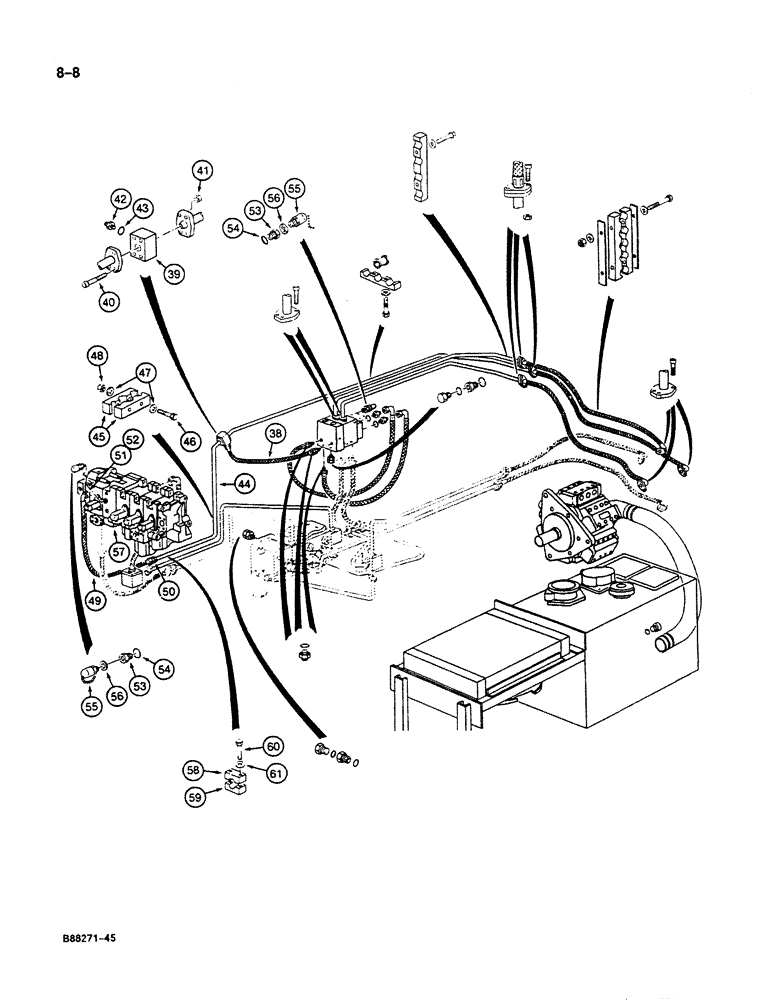

Запчасти Case 125B (8-008) - HYDRAULIC PUMP LINES, P.I.N. 74251 THROUGH 74400 (08) - HYDRAULICS

38

P31939

HOSE

- power sensing valve to block, 24-3/4" (630 mm) long

1шт.

39

P3037751

JUNCTION

BLOCK - adapter, tube flange

1шт.

40

P1032912

SCREW

BOLT -, Serial Range: flanges-block

2шт.

41

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, at block, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

ADAPTER - straight, at block

1шт.

43

P7046042

SEAL

- adapter

1шт.

44

P5249060

PIPE

TUBE - block to attachment control valve

1шт.

45

P4020333

SHIN

CLAMP - tube

2шт.

46

P33824

SCREW

BOLT - tube clamp

2шт.

47

P3528795

WASHER

SPACER - clamp bolt

4шт.

48

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

49

P3731942

HOSE

- to attachment control valve, 24-3/4" (630 mm) long

1шт.

50

P37554

UNION

ADAPTER - straight

1шт.

51

P3037501

UNION

ADAPTER - straight, at valve

1шт.

52

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

53

P637358

RESTRICTOR

ADAPTER - test port

2шт.

54

P1230443

O-RING

- adapter

2шт.

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port, Includes: Ref. 55 and 56

2шт.

55

NSS

NOT SOLD SEPARAT

BODY - disconnect

1шт.

56

P7046042

SEAL

WASHER - seal, disconnect

1шт.

57

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

58

P723438

SHIN

CLAMP - tube, upper half

1шт.

59

P2023481

SHIN

CLAMP - tube, lower half

1шт.

60

P833802

SCREW

BOLT - tube clamp

2шт.

61

P3528795

WASHER

SPACER - tube clamp

2шт.
