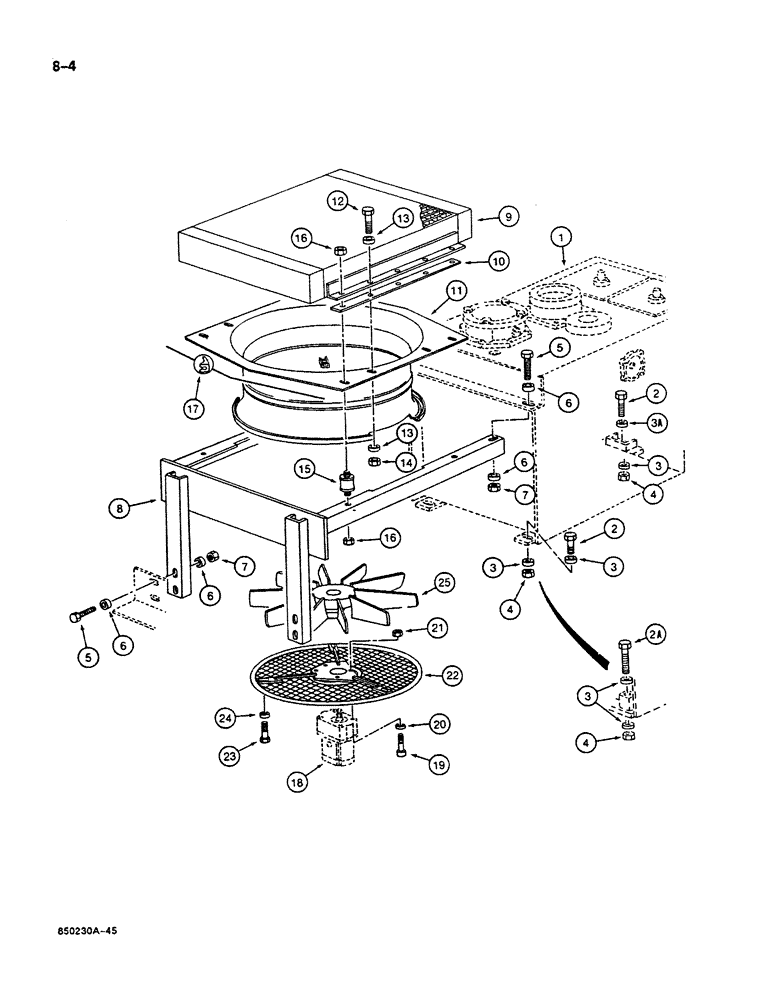

Запчасти Case 125B (8-004) - HYDRAULIC OIL COOLER AND FAN, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, for filters and gauges see Figure 8-2

1шт.

2

P33875

SCREW

BOLT - hex head, 16 mm x 70 mm, if used

3шт.

2a

P133883

SCREW

BOLT - hex head, 16 mm x 110 mm, if used

2шт.

3

P3528790

WASHER

SPACER - bolt, 11 mm thick

5шт.

3a

P4328746

WASHER

SPACER - bolt, 11 mm thick

1шт.

4

P134547

SAFETY NUT

NUT - hex, self-locking, 16 mm

3шт.

5

P28374

SCREW

BOLT - hex head, 12 mm x 50 mm, full threaded

6шт.

6

P3528793

WASHER

SPACER - frame mounting bolt

12шт.

7

P34596

LOCK NUT

NUT - hex, frame mounting bolt

6шт.

8

P4228235

SUPPORT

FRAME - mounting, oil cooler

1шт.

9

P3037769

COOLER ASSY.

COOLER - hydraulic oil

1шт.

10

P2623182

PLATE

- spacer, Serial Range: cooler-shroud

2шт.

11

P4340320

ORIFICE RING

SHROUD - cooler fan

1шт.

12

P133884

SCREW

BOLT -, Serial Range: cooler-shroud

4шт.

13

P3528794

WASHER

SPACER - cooler mounting bolt

8шт.

14

P134596

SAFETY NUT

NUT - hex, cooler mounting bolt

4шт.

15

P41474

STOP

MOUNT - flexible, cooler and, Serial Range: shroud-frame

4шт.

16

P34598

SAFETY NUT

NUT - hex, flexible mount

8шт.

17

REF

INSTRUCTION

GUARD - shroud edge, 2.3 ft (0.7 m) long, cut from P303111 edge guard

2шт.

18

REF

INSTRUCTION

MOTOR ASSEMBLY - cooler fan, see Figures 8-276 and 8-278 for correct assembly and components

1шт.

19

P732980

SCREW

- mounting, Serial Range: fan-screen

4шт.

20

P34611

WASHER

- lock, mounting screw

4шт.

21

P134596

SAFETY NUT

NUT - hex, mounting screw

4шт.

22

P4728212

SIEVE

SCREEN - protective, fan

1шт.

23

P933818

SCREW

BOLT -, Serial Range: screen-shroud

3шт.

24

P2428713

SPACER - screen mounting bolt

3шт.

25

P2843209

FAN

- cooler

1шт.
