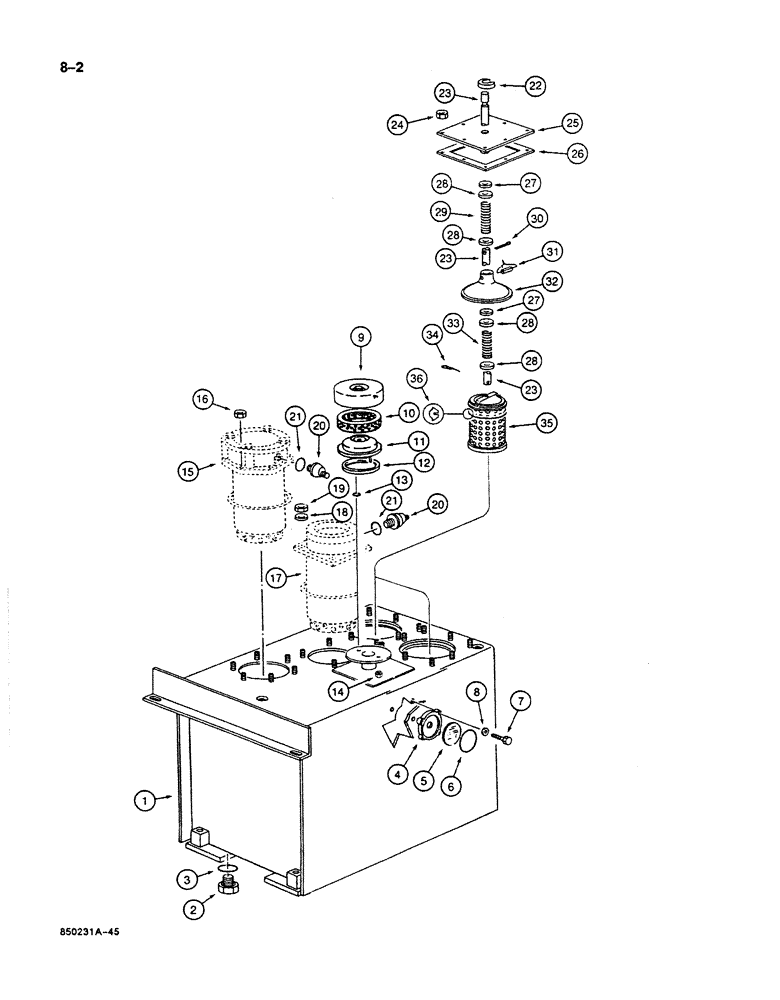

Запчасти Case 125B (8-002) - HYDRAULIC RESERVOIR, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P1540234

OIL RESERVOIR

RESERVOIR - hydraulic oil, mounting hardware on Figure 8-4

1шт.

2

P1737444

PLUG

- reservoir drain

2шт.

3

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- drain plug

2шт.

4

P130109

BODY

GAUGE - sight, oil level

1шт.

5

P45055

SIGHTGLASS

GLASS - sight gauge

1шт.

6

P30337

O-RING

- sight gauge

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Gauge to tank

4шт.

8

P28424

COMPOSITE SEAL

WASHER - flat, gauge bolt

4шт.

P1337410

PLUG

BREATHER ASSEMBLY - hydraulic tank, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - breather

1шт.

10

P850566

CARTRIDGE

FILTER - tank breather

1шт.

11

NSS

NOT SOLD SEPARAT

BASE - breather

1шт.

12

P945279

SEAL

-, Serial Range: breather-tank

1шт.

13

P230441

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- breather mounting stud

2шт.

14

P134596

SAFETY NUT

NUT - mounting stud

2шт.

15

REF

INSTRUCTION

FILTER ASSEMBLY - return oil, see Figure 8-282 for correct assembly and components

1шт.

16

P34113

NUT

- hex, filter to tank studs

6шт.

17

REF

INSTRUCTION

FILTER ASSEMBLY - leak return, parts list Figure 8-284

1шт.

18

P35002

WASHER

- lock, filter to tank studs

4шт.

19

P34113

NUT

- hex, filter to tank studs

4шт.

20

P841828

ELECTRO/HYD CONTACT

SENDING UNIT - filter condition

2шт.

21

P28424

COMPOSITE SEAL

SEAL - sending unit

2шт.

22

P45648

WASHER

RETAINER - shutoff rod

2шт.

23

P529938

STEM

ROD - reservoir oil shutoff

2шт.

24

P34113

NUT

- hex, cover to tank studs

16шт.

25

P140486

COVER

- access, suction filters

2шт.

26

P346033

GASKET

-, Serial Range: cover-tank

2шт.

27

P46023

WASHER

SEAL - shutoff rod

4шт.

28

P34613

WASHER

- spring retainer

8шт.

29

P38191

COMPRESSION SPRING

SPRING - shutoff rod, upper

2шт.

30

P35521

SPLIT PIN

COTTER PIN - retainer washer

2шт.

31

P35732

SPLIT PIN/SAFETY PIN

PIN - safety, shutoff, Serial Range: valve-rod

2шт.

32

P140482

BLANK-OFF PLUG

VALVE - oil shutoff, see Ref. 36 for seal from valve to filter (included with P250563 filter assembly)

2шт.

33

P738135

COMPRESSION SPRING

SPRING - shutoff rod, lower

2шт.

34

P36018

SPLIT PIN/SAFETY PIN

PIN - safety, spring retainer

2шт.

P250563

FILTER BOWL

FILTER ASSEMBLY - tank suction, Includes: Ref. 35 and 36

2шт.

35

NSS

NOT SOLD SEPARAT

FILTER - suction

1шт.

36

P646095

SEAL

-, Serial Range: filter-valve

1шт.
