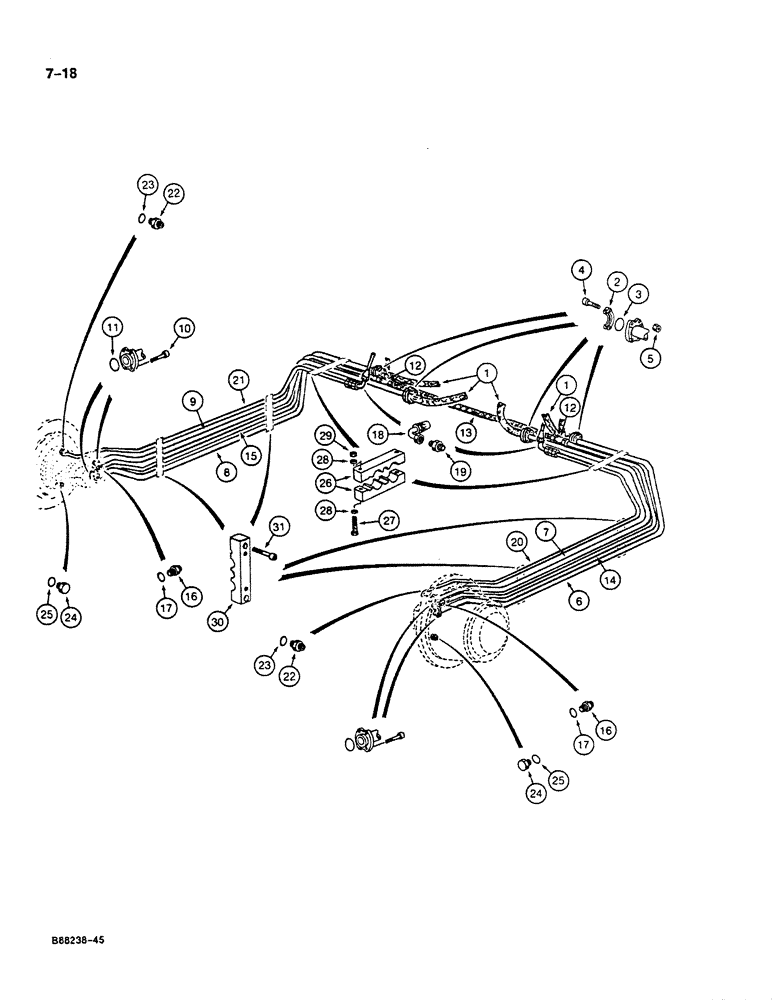

Запчасти Case 125B (7-18) - TRACK DRIVE, RANGE DRIVE & BRAKE HYD. LINES, LOWER LINES TO DRIVE MOTORS & BRAKES (07) - BRAKES

1

REF

INSTRUCTION

HOSE - drive motor tube to selector valve, see Figure 7-16 for continuation of hydraulic lines to selector valve and hydraulic swivel

4шт.

2

P4024266

CLAMP

FLANGE - split, tube to selector valve hose

8шт.

3

P1130483

O-RING

- split flange

4шт.

4

P732994

SCREW

BOLT - hex socket head, 10 mm x 50 mm, class 10.9

16шт.

5

825-1408

NUT,M8, Cl 8

- hex, 10 mm

16шт.

6

P7049177

PRESSURE PIPE

TUBE - selector valve to right-hand motor, reverse drive

1шт.

7

P7049178

PRESSURE PIPE

TUBE - selector valve to right-hand motor, forward drive

1шт.

8

P7049176

PRESSURE PIPE

TUBE - selector valve to left-hand motor, reverse drive

1шт.

9

P7049175

PRESSURE PIPE

TUBE - selector valve to left-hand motor, forward drive

1шт.

10

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

11

P1130483

O-RING

- tube flange to drive motor

4шт.

12

P937277

TEE

- leak return tube

2шт.

13

P5931971

HOSE

- 31-1/2" (800 mm) long, crossover, leak return tubes

1шт.

14

P7049173

PIPE

TUBE - leak return, right-hand drive motor

1шт.

15

P7049174

PIPE

TUBE - leak return, left-hand drive motor

1шт.

P3237533

UNION

ADAPTER ASSEMBLY - leak return tube to drive motor, Includes: Ref. 16 and 17

2шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - leak return tube to drive motor

1шт.

17

P1145268

SEAL

- adapter

1шт.

18

P4037590

END FITTING

ELBOW - 90 degree, pilot hose to brake release tube

2шт.

19

P3237535

UNION

ADAPTER -, Serial Range: elbow-tube

2шт.

20

P7049172

PIPE

TUBE - brake release, right-hand motor

1шт.

21

P7049171

PIPE

TUBE - brake release, left-hand motor

1шт.

P4037584

UNION

ADAPTER ASSEMBLY - brake release tube to drive motor, Includes: Ref. 22 and 23

2шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - brake release tube to drive motor

1шт.

23

P7046042

SEAL

- adapter

1шт.

P2537447

PLUG

ASSEMBLY - drive motor, Includes: Ref. 24 - 25

2шт.

24

NSS

NOT SOLD SEPARAT

PLUG - drive motor

1шт.

25

P7046042

SEAL

- plug

1шт.

26

P4820334

SHIN

CLAMP - drive and brake tubes, upper track frame

4шт.

27

P133084

SCREW

BOLT - hex head, 12 mm x 110 mm, full threaded

4шт.

28

P3528793

WASHER

SPACER - bolt, 8 mm thick

8шт.

29

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

30

P4820335

SHIN

CLAMP - drive and brake tubes, track frame side

4шт.

31

P32943

SCREW

BOLT - hex socket head, 12 mm x 35 mm

8шт.
