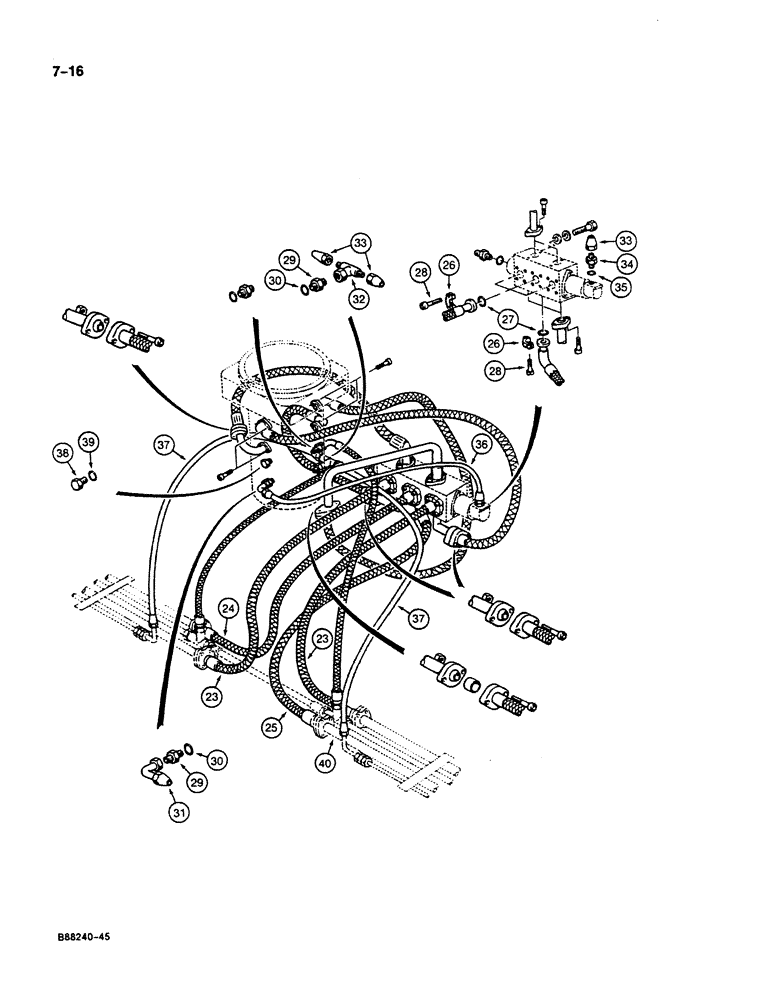

Запчасти Case 125B (7-16) - TRACK DRIVE, RANGE DRIVE & BRAKE HYD. LINES, SWIVEL TO SELECTOR VALVE & LOWER LINES (07) - BRAKES

23

P5431993

HOSE

- 31-1/2" (800 mm) long, selector valve to right-hand motor reverse drive and left-hand motor forward drive

2шт.

24

P5931952

HOSE

- 39-3/8" (1000 mm) long, selector valve to left-hand motor reverse drive

1шт.

25

P6531961

HOSE

- 39-3/8" (1000 mm) long, selector valve to right-hand motor forward drive

1шт.

26

P4024266

CLAMP

FLANGE - split, hose to selector valve

8шт.

27

P1130483

O-RING

- hose flange

4шт.

28

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

P4037575

UNION

ADAPTER ASSEMBLY - swivel to pilot control tube and tee, Includes: Ref. 29 and 30

2шт.

29

NSS

NOT SOLD SEPARAT

ADAPTER - pilot control tube and tee

1шт.

30

P5746063

SEAL

- adapter

1шт.

31

P4037590

END FITTING

ELBOW - 90 degree, pilot hose to selector valve

1шт.

32

P1237233

TEE

- pilot hose, swivel to brake release tubes

1шт.

33

P4037588

END FITTING

ADAPTER - pilot hose to tee and adapter

3шт.

P4037573

UNION

ADAPTER ASSEMBLY - pilot hose to selector valve, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

ADAPTER - pilot hose to selector valve

1шт.

35

P945295

SEAL

- adapter

1шт.

36

REF

INSTRUCTION

HOSE - pilot control, swivel to selector valve, 31-1/2" (800 mm) long, cut from P1103640

1шт.

37

REF

INSTRUCTION

HOSE - pilot control, swivel to brake release tubes, 39-3/8" (1000 mm) long, cut from P1103640

2шт.

P1437458

PLUG

ASSEMBLY - hydraulic swivel port, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG - hydraulic swivel port

1шт.

39

P5746063

SEAL

- plug

1шт.

40

REF

INSTRUCTION

TUBE - hose to right-hand motor, forward drive, see Figure 7-18 for continuation of hydraulic, Serial Range: lines-motors

1шт.
