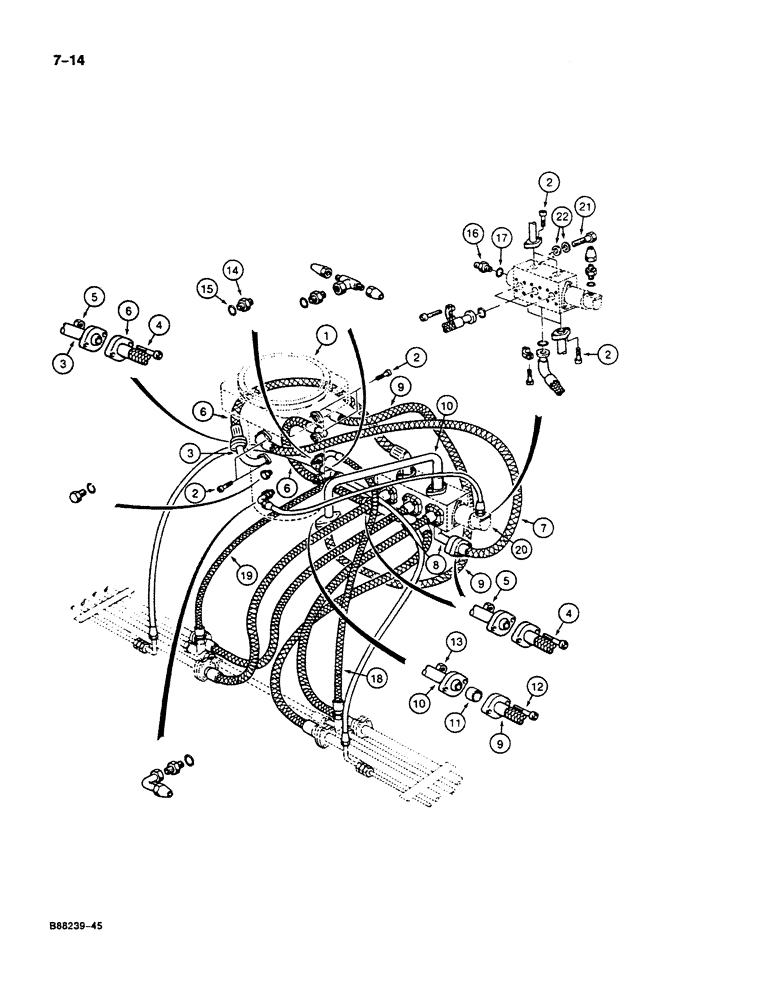

Запчасти Case 125B (7-14) - TRACK DRIVE, RANGE DRIVE & BRAKE HYD. LINES, SWIVEL TO SELECTOR VALVE & LOWER LINES, PIN 74880-74963 (07) - BRAKES

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

3

P7447113

PIPE

TUBE - swivel to selector valve, right-hand motor, forward drive

1шт.

4

P732991

SCREW

BOLT - hex socket head, 10 mm x 55 mm, class 10.9

6шт.

5

825-1408

NUT,M8, Cl 8

- hex, self-locking, 10 mm

6шт.

6

P1031967

HOSE

- 25-5/8" (650 mm) long, swivel to selector valve, for left-hand and right-hand motor, forward drive

2шт.

7

P1031967

HOSE

- 25-5/8" (650 mm) long, swivel to selector valve, for right-hand motor, reverse drive

1шт.

8

P7447113

PIPE

TUBE - at selector valve, right-hand motor reverse drive and left-hand motor forward drive

2шт.

9

P3231910

HOSE

- 39-3/8" (1000 mm) long, swivel to selector valve, left-hand motor, reverse drive

1шт.

10

P7347640

PIPE

TUBE - swivel to selector valve, left-hand motor, reverse drive

1шт.

11

P1737758

JUNCTION

ADAPTER - hose to tube flange

1шт.

12

P1432903

SCREW

BOLT - hex socket head, 10 mm x 85 mm, class 10.9

2шт.

13

825-1408

NUT,M8, Cl 8

- hex, self-locking, 10 mm

2шт.

P3237543

UNION

ADAPTER ASSEMBLY - swivel to right-hand motor leak return hose (Ref. 18), Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ADAPTER -, Serial Range: swivel-hose

1шт.

15

P5746063

SEAL

- adapter

1шт.

P3237541

UNION

ADAPTER ASSEMBLY - selector valve to left-hand motor leak return hose (Ref. 19), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - selector, Serial Range: valve-hose

1шт.

17

P945295

SEAL

- adapter

1шт.

18

P5431966

HOSE

- 39-3/8" (1000 mm) long, tee to swivel, right-hand motor leak return

1шт.

19

P5931971

HOSE

- 31-1/2" (800 mm) long, tee to selector valve, left-hand motor leak return

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - selector, parts list Figure 8-230

1шт.

21

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

22

P3528795

WASHER

SPACER - mounting bolt, 7 mm thick

8шт.
