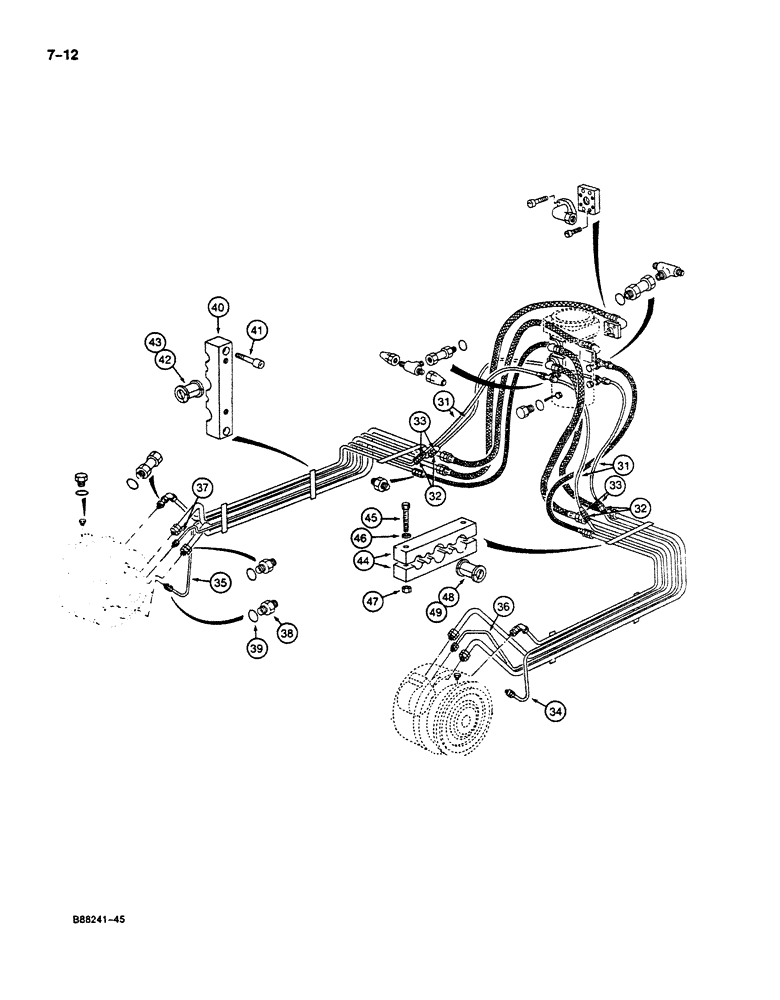

Запчасти Case 125B (7-12) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74845 THROUGH 74879 (07) - BRAKES

31

REF

INSTRUCTION

HOSE - pilot control, 39-3/8" (1000 mm) long, cut from P1103640 hose

4шт.

32

P3237535

UNION

ADAPTER - pilot, Serial Range: hose-tube

4шт.

33

P4037588

END FITTING

NUT - pilot, Serial Range: hose-adapter

4шт.

34

P3849124

TUBE - pilot control, right-hand motor brake release

1шт.

35

P6849125

PIPE

TUBE - pilot control, left-hand motor brake release

1шт.

36

P6849126

PIPE

TUBE - pilot control, right-hand motor brake range

1шт.

37

P6849127

PIPE

TUBE - pilot control, left-hand motor drive range

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, tube to drive motor, Includes: Ref. 38 and 39

4шт.

38

NSS

NOT SOLD SEPARAT

ADAPTER - straight, tube to drive motor

1шт.

39

P945295

SEAL

- adapter

1шт.

40

P4020367

SHIN

CLAMP - tubes to side of track frame

4шт.

41

P32943

SCREW

- clamp to track frame

8шт.

42

P3141453

BUSHING

- rubber, tube clamp, 5/8" (16 mm) ID

4шт.

43

P741450

BUSHING

- rubber, tube clamp, 3/4" (20 mm) ID

8шт.

44

P4020368

SHIN

CLAMP - tube

4шт.

45

P133084

SCREW

BOLT - tube clamp

4шт.

46

P3528793

WASHER

SPACER - bolt

4шт.

47

P34596

LOCK NUT

NUT - hex, clamp bolt

4шт.

48

P3141453

BUSHING

- rubber, tube clamp, 5/8" (16 mm) ID

2шт.

49

P741450

BUSHING

- rubber, tube clamp, 3/4" (20 mm) ID

4шт.
