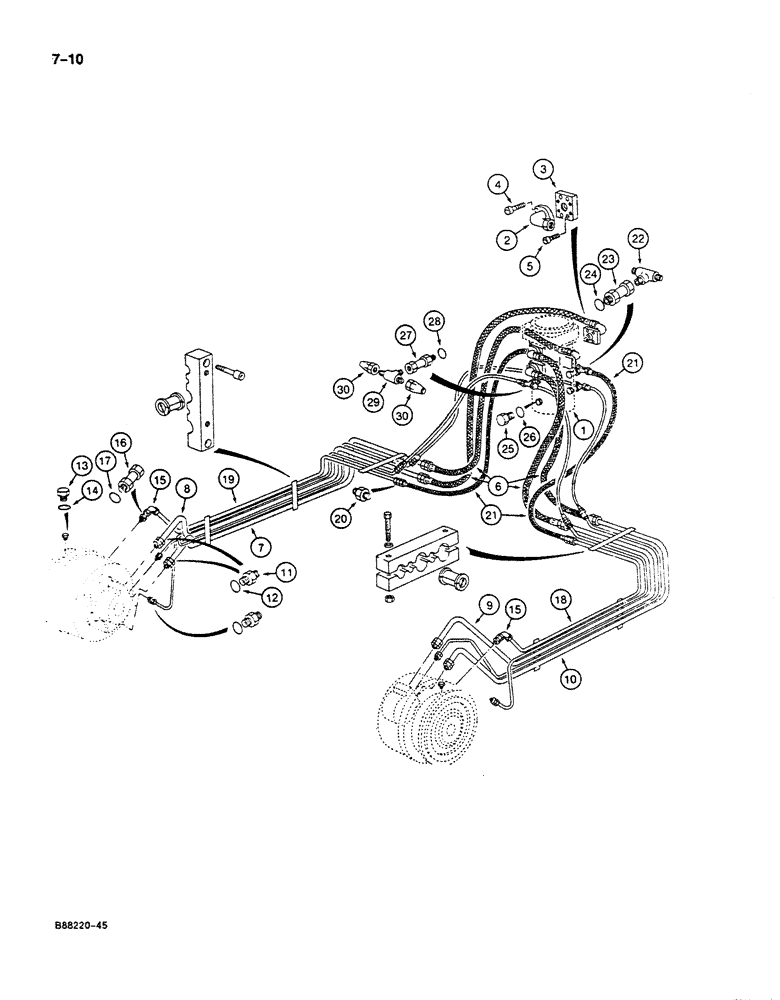

Запчасти Case 125B (7-10) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74845 THROUGH 74879 (07) - BRAKES

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

2

P4947134

PIPE

TUBE - 90 degree, connecting, swivel to drive motor hoses

4шт.

3

P637327

RESTRICTOR

ADAPTER -, Serial Range: tube-swivel

4шт.

4

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9

8шт.

5

P532988

SCREW

BOLT - hex socket head, 10 mm x 25 mm, class 10.9

8шт.

6

P31992

HOSE

- 39-3/8" (1000 mm) long, swivel to drive motors

4шт.

7

P5649178

PIPE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P5649176

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

9

P5649177

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

10

P5649175

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

P3037501

UNION

ADAPTER ASSEMBLY - straight, tube to drive motor, Includes: Ref. 11 and 12

4шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER - straight, tube to drive motor

1шт.

12

P5746063

SEAL

- adapter

1шт.

P1437456

PLUG

ASSEMBLY - drive motor case, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

PLUG - drive motor case

1шт.

14

P945295

SEAL

- plug

1шт.

15

P37073

ELBOW-CONNECTION

ELBOW - 90 degree, at motor

2шт.

P2337593

FITTING

TUBE ASSEMBLY - motor case drain, at motor, Includes: Ref. 16 and 17

2шт.

16

NSS

NOT SOLD SEPARAT

TUBE - motor case drain, at motor

1шт.

17

P945293

WASHER, SEALING

O-RING - tube

1шт.

18

P5449090

PIPE

TUBE - right-hand motor case drain

1шт.

19

P5449091

PIPE

TUBE - left-hand motor case drain

1шт.

20

P37550

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

21

P3231989

HOSE

- motor case drain, at swivel, 39-3/8" (1000 mm) long

2шт.

22

P37237

TEE

- drain, Serial Range: hoses-swivel

1шт.

P2337594

FITTING

TUBE ASSEMBLY - connecting, drain hoses to swivel, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - connecting, drain hoses to swivel

1шт.

24

P5746063

SEAL

- tube

1шт.

P1437458

PLUG

ASSEMBLY - hydraulic swivel port, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - hydraulic swivel port

1шт.

26

P5746063

SEAL

- plug

1шт.

P3037508

FITTING

TUBE ASSEMBLY - connecting, pilot control hoses to swivel, Includes: Ref. 27 and 28

2шт.

27

NSS

NOT SOLD SEPARAT

TUBE - connecting, pilot control, Serial Range: hoses-swivel

1шт.

28

P5746063

SEAL

- connecting tube

1шт.

29

P1237226

TEE

- pilot, Serial Range: hoses-tube

2шт.

30

P4037588

END FITTING

NUT - pilot, Serial Range: hoses-tee

4шт.
