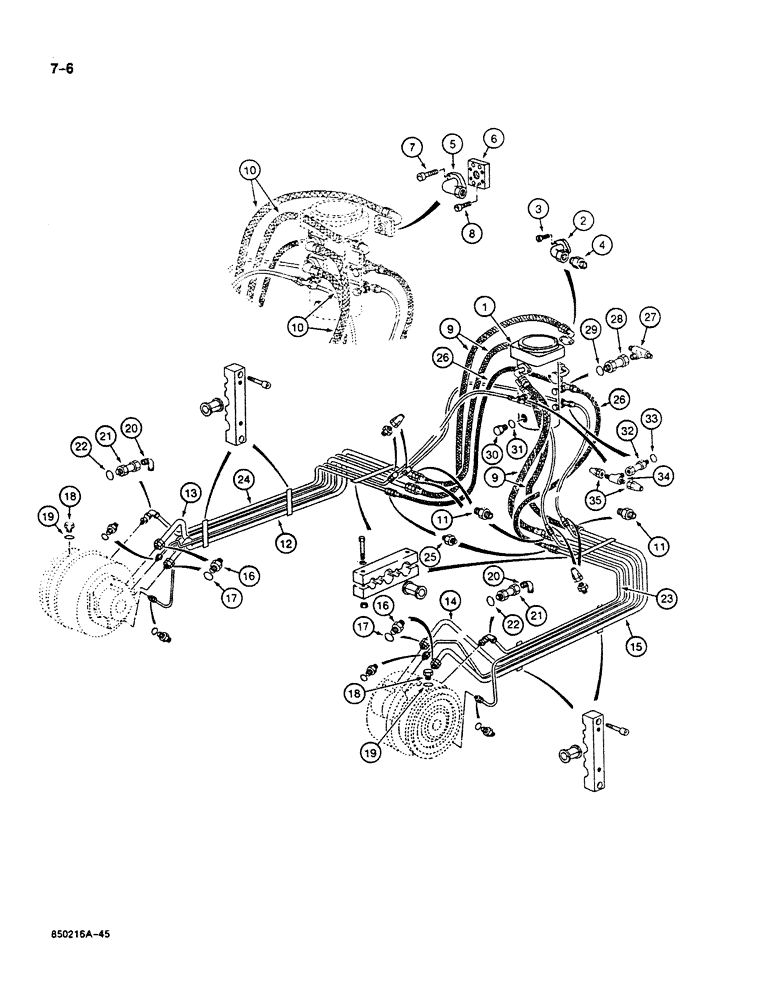

Запчасти Case 125B (7-06) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74631 THROUGH 74844 (07) - BRAKES

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

2

P3047172

TUBE,26.75 mm OD x 115, 115 mm L

- 90 degree, connecting, swivel to drive motor hoses, if used

4шт.

3

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Used with Ref. 2 Hex Soc Hd, M10 x 35, 10.9

8шт.

4

P837550

UNION

ADAPTER - straight, tube to hose, used with reference number 2

4шт.

5

P4947134

PIPE

TUBE - 90 degree, connecting, swivel to drive motor hoses, if used

4шт.

6

P637327

RESTRICTOR

ADAPTER - tube to swivel, used with reference number 5

4шт.

7

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Used with Ref 5

8шт.

8

P532988

SCREW

BOLT - hex socket head, 10 mm x 25 mm, class 10.9, used with reference number 6

8шт.

9

P3731936

HOSE

- 39-3/8" (1000 mm) long, swivel to drive motors, used with reference numbers 2 and 4

4шт.

10

P31992

HOSE

- 39-3/8" (1000 mm) long, swivel to drive motors, used with reference numbers 5 and 6

4шт.

11

P37554

UNION

ADAPTER - straight, hose to tube, used with reference number 9 only

4шт.

12

P5649178

PIPE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

13

P5649176

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

14

P5649177

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

15

P5649175

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

16

P3037501

UNION

ADAPTER - straight, tube to drive motor

4шт.

17

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

4шт.

P1437456

PLUG

ASSEMBLY - drive motor case, Includes: Ref. 18 - 19

2шт.

18

NSS

NOT SOLD SEPARAT

PLUG - drive motor case

1шт.

19

P945295

SEAL

- plug

1шт.

20

P37073

ELBOW-CONNECTION

ELBOW - 90 degree, at motor

2шт.

21

P2337593

FITTING

TUBE - motor case drain, at motor

2шт.

22

P1230443

O-RING

- tube

2шт.

23

P5449090

PIPE

TUBE - right-hand motor case drain

1шт.

24

P5449091

PIPE

TUBE - left-hand motor case drain

1шт.

25

P37550

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

26

P3231989

HOSE

- motor case drain, at swivel, 39-3/8" (1000 mm) long

2шт.

27

P37237

TEE

- drain, Serial Range: hoses-swivel

1шт.

28

P2337594

FITTING

TUBE - connecting, drain, Serial Range: hoses-swivel

1шт.

29

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- tube

1шт.

P1437458

PLUG

ASSEMBLY - hydraulic swivel port

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - hydraulic swivel port

1шт.

31

P5746063

SEAL

O-RING - plug

1шт.

32

P3037508

FITTING

TUBE - connecting, pilot control, Serial Range: hoses-swivel

2шт.

33

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- connecting tube

2шт.

34

P37248

TEE

- pilot, Serial Range: hoses-tube

2шт.

35

P4037535

END FITTING

NUT - pilot, Serial Range: hoses-tee

4шт.
