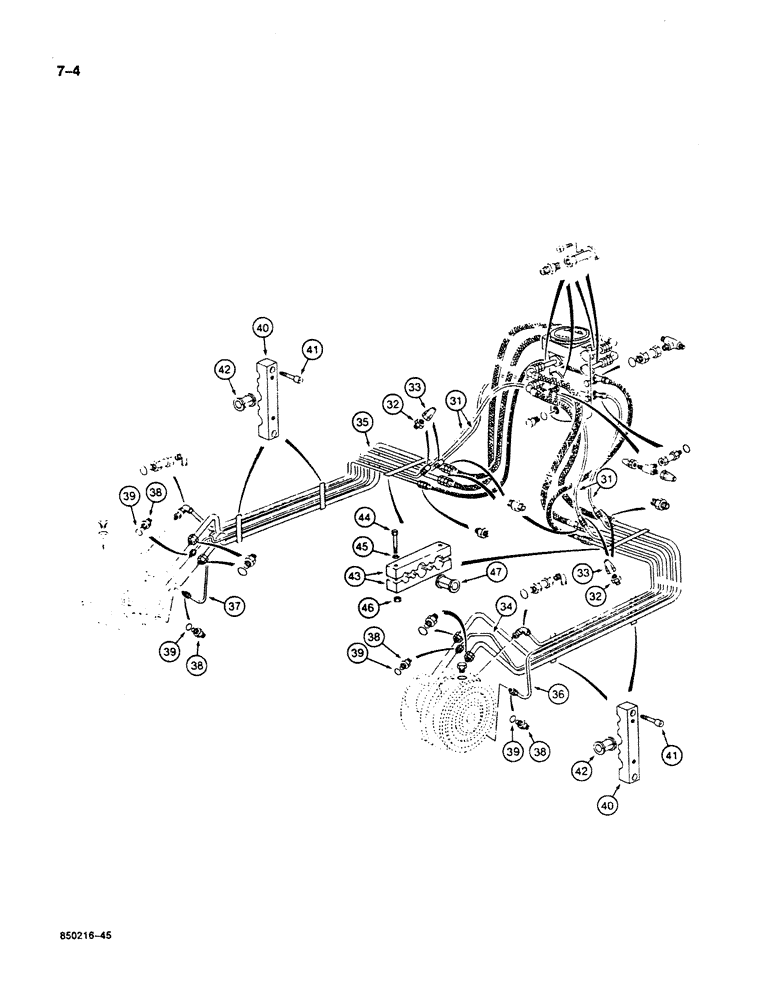

Запчасти Case 125B (7-04) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74251 THROUGH 74630 (07) - BRAKES

31

REF

INSTRUCTION

HOSE - pilot control, 39-3/8" (1000 mm) long, cut from P1103640 hose

4шт.

32

P37553

UNION

ADAPTER - pilot, Serial Range: hose-tube

4шт.

33

P1237561

END FITTING

NUT - pilot, Serial Range: hose-adapter

4шт.

34

P5649172

PIPE

TUBE - pilot control, right-hand motor drive range

1шт.

35

P5649171

PIPE,10 mm DIA

TUBE - pilot control, left-hand motor drive range

1шт.

36

P5649174

PIPE,10 mm DIA

TUBE - pilot control, right-hand motor brake release

1шт.

37

P5649173

PIPE

TUBE - pilot control, left-hand motor brake release

1шт.

38

P3037546

UNION

ADAPTER - staight, tube to drive motor

4шт.

39

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

4шт.

40

P4020367

SHIN

CLAMP - tubes to side of track frame

4шт.

41

P32943

SCREW

- clamp to track frame

8шт.

42

P3141453

BUSHING

- rubber, tube clamp, 0.63" (16 mm) ID

8шт.

42

P741450

BUSHING

- rubber, tube clamp, 0.79" (20 mm) ID

12шт.

43

P4020368

SHIN

CLAMP - tube, top

4шт.

44

P233061

SCREW

BOLT - tube clamp

4шт.

45

P3528793

WASHER

SPACER - bolt

4шт.

46

P34596

LOCK NUT

NUT - clamp bolt

4шт.

47

P3141453

BUSHING

- rubber, tube clamp, 0.63" (16 mm) ID

4шт.

47

P741450

BUSHING

- rubber, tube clamp, 0.79" (20 mm) ID

6шт.
