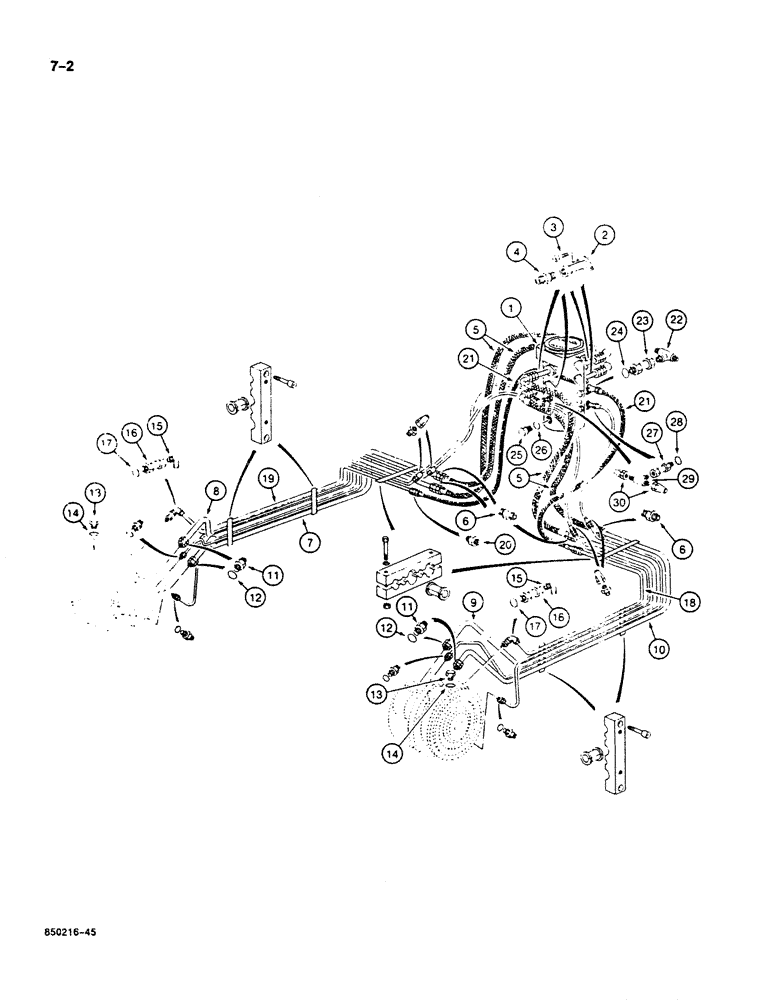

Запчасти Case 125B (7-02) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74251 THROUGH 74630 (07) - BRAKES

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

2

P1937694

PIPE,26.75 mm DIA x 90 mm L

TUBE - connecting, swivel to drive motor hoses

4шт.

3

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube to swivel Hex Soc Hd, M10 x 35, 10.9

8шт.

4

P837550

UNION

ADAPTER - straight, Serial Range: tube-hose

4шт.

5

P3731930

HOSE

- swivel to drive motors

4шт.

6

P37554

UNION

ADAPTER - straight, Serial Range: hose-tube

4шт.

7

P5649178

PIPE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P5649176

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

9

P5649177

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

10

P5649175

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

11

P3037501

UNION

ADAPTER - straight, tube to drive motor

4шт.

12

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

4шт.

13

P1737451

PLUG

- drive motor case

2шт.

14

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

2шт.

15

P37073

ELBOW-CONNECTION

ELBOW - 90 degree, at motor

2шт.

16

P2337593

FITTING

TUBE - motor case drain, at motor

2шт.

17

P1230443

O-RING

- tube

2шт.

18

P5449090

PIPE

TUBE - right-hand motor case drain

1шт.

19

P5449091

PIPE

TUBE - left-hand motor case drain

1шт.

20

P37550

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

21

P3231989

HOSE

- motor case drain, at swivel, 39-3/8" (1000 mm) long

2шт.

22

P37237

TEE

- drain, Serial Range: hoses-swivel

1шт.

23

P2337594

FITTING

TUBE - connecting, drain, Serial Range: hoses-swivel

1шт.

24

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- tube

1шт.

25

P1737444

PLUG

- hydraulic swivel port

1шт.

26

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- plug

1шт.

27

P3037508

FITTING

TUBE - connecting, pilot control, Serial Range: hoses-swivel

2шт.

28

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- connecting tube

2шт.

29

P37248

TEE

- pilot, Serial Range: hoses-tube

2шт.

30

P1237561

END FITTING

NUT - pilot, Serial Range: hoses-tee

4шт.
