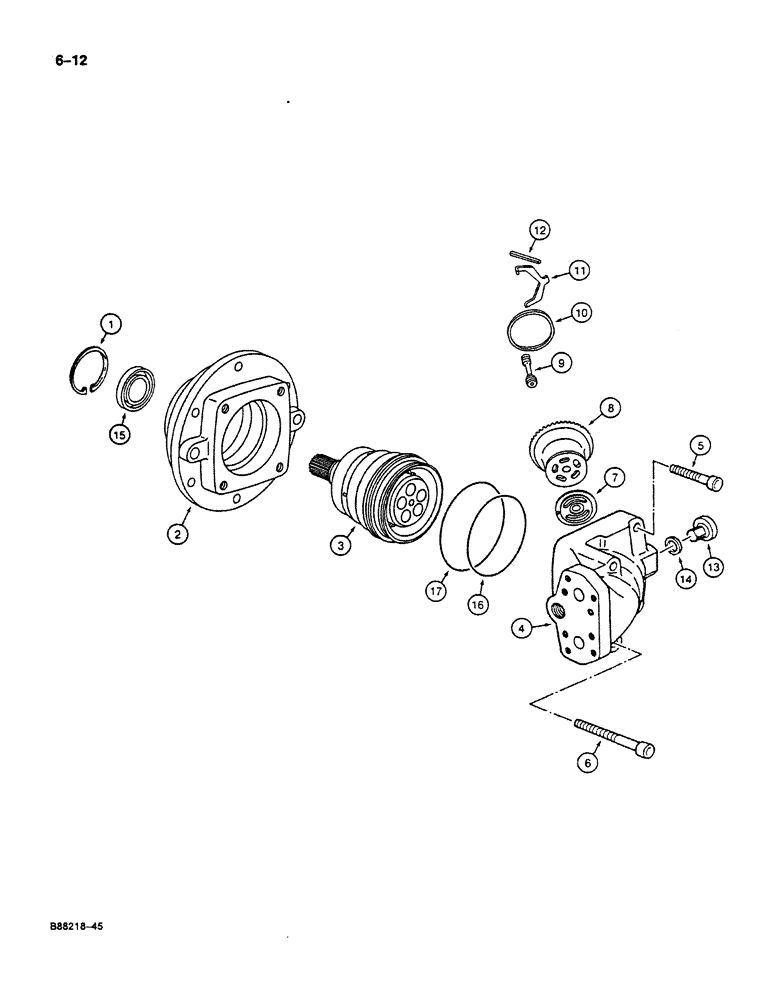

Запчасти Case 125B (6-12) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74880 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (06) - POWER TRAIN

P2343781

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Ref. 1 - 17

2шт.

1

P936325

RING, SNAP

SNAP RING - seal retaining

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor, drive shaft end

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - motor, port end

1шт.

5

P632935

SCREW

BOLT - hex socket head, 12 mm x 70 mm, class 10.9

2шт.

6

P732916

SCREW

BOLT - hex socket head, 12 mm x 120 mm, class 10.9

2шт.

7

P8346205

ELEC SUPPORT PLATE

PLATE - valve

1шт.

8

P150224

LOCK, CYLINDER

BLOCK - cylinder

1шт.

9

P1729868

PISTON

- cylinder block

5шт.

10

NSS

NOT SOLD SEPARAT

RING - cylinder block

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - cylinder block

1шт.

13

P3237480

PLUG

- rear housing

1шт.

14

P1245273

WASHER

SEAL - plug

1шт.

P5449674

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 15 - 17

1шт.

15

P7146036

OIL SEAL

SEAL - shaft, at housing

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.
