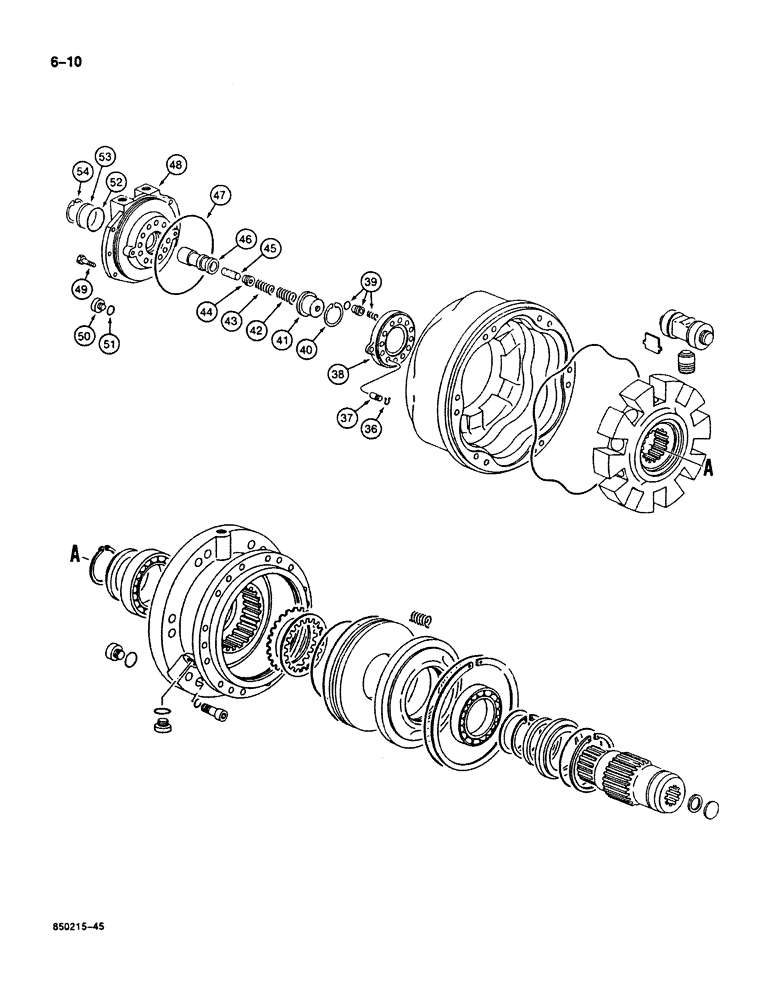

Запчасти Case 125B (6-10) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74251 THROUGH 74879 (06) - POWER TRAIN

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - track drive, continued from Figure 6-08, Includes: Ref. 36 - 54

2шт.

P5646217

VALVE, CONTROL

DISTRIBUTOR ASSEMBLY - motor, Includes: Ref. 36 - 54

1шт.

36

P1936914

SEGMENT

SNAP RING - pin

2шт.

37

P836004

SPLIT PIN/SAFETY PIN

DOWEL PIN - plate

2шт.

38

P7130117

LARGE PLATE

PLATE - distributor

1шт.

39

P3637789

KIT

SPRING AND GUIDE - distributor plate, set of 12

1шт.

40

P36239

RING, SNAP

SNAP RING - spool cap

1шт.

41

P1729027

WASHER

CAP - spool

1шт.

42

P1838154

COMPRESSION SPRING

SPRING - spool, large

1шт.

43

P1838153

COMPRESSION SPRING

SPRING - spool, small

1шт.

44

P1637480

PLUG

- end

1шт.

45

NSS

NOT SOLD SEPARAT

PLUNGER - spool

1шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - distributor

1шт.

47

P1830419

O-RING

- distributor housing, (171.75 x 164.69 x 3.53)

1шт.

Part of Seal Kit, P/N P4349606

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - distributor

1шт.

49

P1332910

SCREW

BOLT - hex socket head, 12 mm x 35 mm, class 10.9, distributor housing

6шт.

50

P1037454

PLUG

- housing

1шт.

51

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- plug

1шт.

Part of Seal Kit, P/N P4349606

1шт.

52

P130413

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- end cover

1шт.

Part of Seal Kit, P/N P4349606

1шт.

53

P1945008

WASHER

COVER - end, housing

1шт.

54

P36239

RING, SNAP

SNAP RING - end cover

1шт.

P4349606

SEAL PACKAGE

KIT - seal, includes Refs. 47, 51 and 52 on this figure and figure 6-9

1шт.
