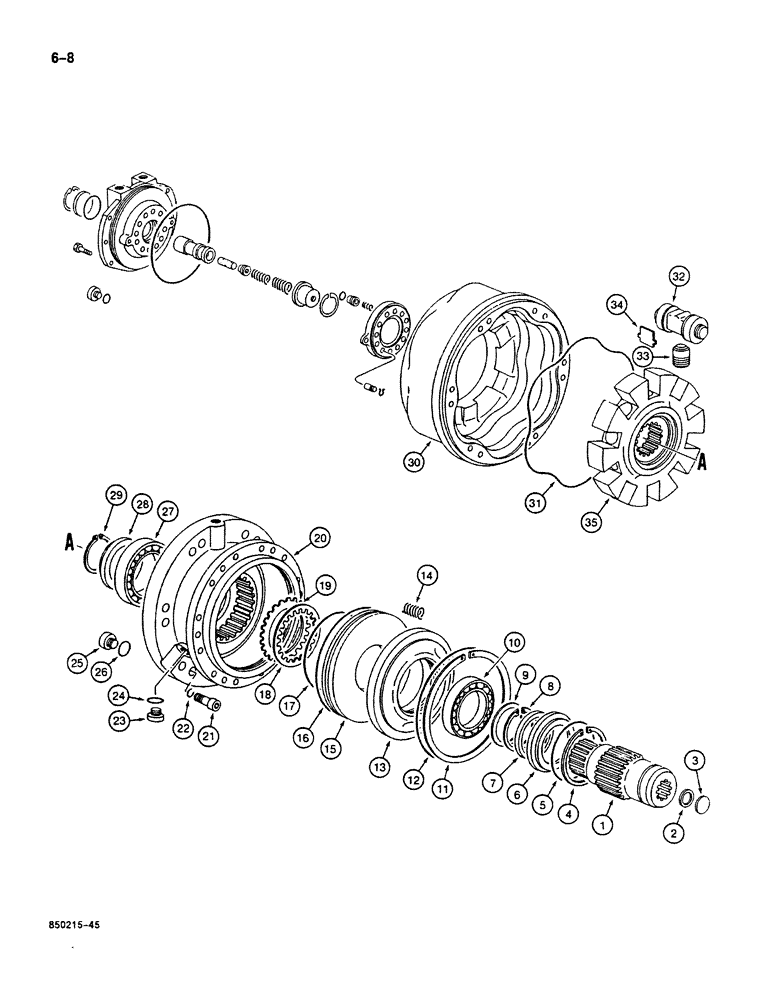

Запчасти Case 125B (6-08) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74251 THROUGH 74879 (06) - POWER TRAIN

P2543752

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 35

2шт.

P5146299

SHAFT

DRIVE SHAFT ASSEMBLY - motor, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

DRIVE SHAFT - motor

1шт.

2

P1745349

SHIM KIT

SHIM SET - shaft

1шт.

3

P1945014

WASHER

COVER - end

1шт.

P5146297

CYLINDER END CAP

BRAKE ASSEMBLY - track drive, Includes: Ref. 4 - 29

1шт.

4

P1936929

SEGMENT

SNAP RING - seal retainer

1шт.

5

P1430459

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- retainer

1шт.

Part of Seal Kit, P/N P4349606

1шт.

P5146298

CAP

RETAINER ASSEMBLY - seal, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

7

P3637743

OIL SEAL

SEAL - bearing

1шт.

Part of Seal Kit, P/N P4349606

1шт.

8

P36330

RING, SNAP

SNAP RING - bearing

1шт.

9

P1745343

SHIM KIT

SHIM SET - bearing

1шт.

10

P39624

BEARING

TAPERED ROLLER BEARING AND CUP ASSEMBLY - shaft

1шт.

11

P936207

RING, SNAP

SNAP RING - bearing support

1шт.

12

P1830414

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

- bearing support

1шт.

Part of Seal Kit, P/N P4349606

1шт.

13

P1729023

SUPPORT

- bearing

1шт.

14

P4037716

KIT

SPRING SET - brake piston, set of 21

1шт.

15

P5143140

PISTON

- brake

1шт.

16

P30373

O-RING

- piston, large

1шт.

Part of Seal Kit, P/N P4349606

1шт.

17

P30366

O-RING

- piston, small

1шт.

Part of Seal Kit, P/N P4349606

1шт.

18

P2639358

DISC

- friction, internal teeth

12шт.

19

P2639301

DISC

- steel, external teeth

10шт.

20

P5143136

SLEWING RING

HOUSING - brake

1шт.

21

P32962

SCREW

- brake housing

12шт.

22

P34715

WASHER, LOCK

WASHER - lock, housing screw

12шт.

23

P737464

PLUG

- brake housing, front

1шт.

24

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

1шт.

Part of Seal Kit, P/N P4349606

1шт.

25

P1037454

PLUG

- brake housing, rear

1шт.

26

R30898

SHIM,.050" Thk

O-Ring - plug .050" Thk

1шт.

Part of Seal Kit, P/N P4349606

1шт.

27

P2339826

BEARING

TAPERED ROLLER BEARING AND CUP ASSEMBLY - shaft

1шт.

28

P1729028

SPACER

- bearing

1шт.

29

P1936912

SEGMENT

SNAP RING - bearing

1шт.

P5646210

HOUSING

ASSEMBLY - motor, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

31

P7046025

SEAL

- motor housing

1шт.

Part of Seal Kit, P/N P4349606

1шт.

P6046271

CYLINDER BLOCK

ROTOR AND ROLLER ASSEMBLY - motor, Includes: Ref. 32 - 35

1шт.

32

P8046226

LARGE PIN

ROLLER SHAFT - motor, class 0 identification

10шт.

32

P8046227

LARGE PIN

ROLLER SHAFT - motor, class 5 identification

10шт.

For Refs. #32 P8046226 & #32 P8046227 refer to SAT # 30

1шт.

33

P7146252

PISTON

- motor, class 0 identification

10шт.

33

P7146253

PISTON

- motor, class 1 identification

10шт.

34

P5337798

KIT

PLATE - wear, set of 20

1шт.

35

NSS

NOT SOLD SEPARAT

ROTOR - drive motor

1шт.

P4349606

SEAL PACKAGE

KIT - seal, includes Refs. 5, 7, 12, 16, 17, 24, 16 and 31 on this figure and figure 6-11

1шт.
