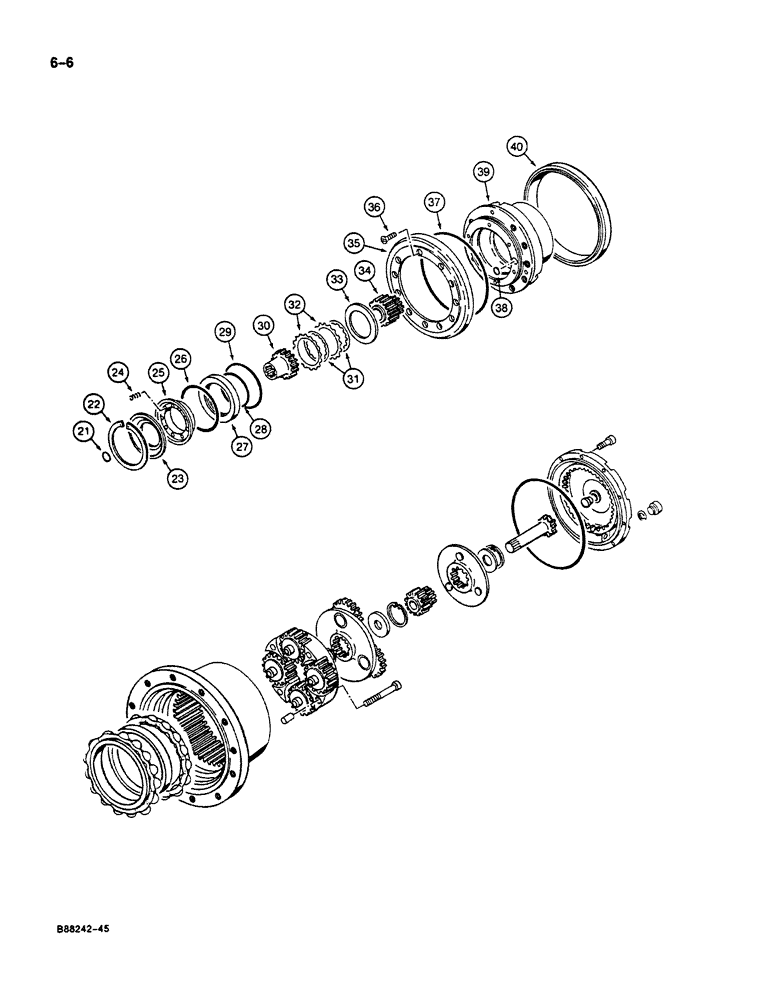

Запчасти Case 125B (6-06) - FINAL DRIVE TRANSMISSION, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - final drive, continued from Figure 6-4, Includes: Ref. 21- 40

2шт.

21

P936331

RING, SNAP

SNAP RING - brake, small

1шт.

22

P936356

RING, SNAP

SNAP RING - brake cap

1шт.

23

P1929066

DISC

CAP - brake

1шт.

24

P38287

SPRING

- brake piston

14шт.

25

P150229

PISTON

- brake

1шт.

26

P1330407

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

- piston, large, inner

1шт.

Part of Seal Kit, P/N P5449683

1шт.

27

P3628824

SPACER

RETAINER - O-ring

1шт.

28

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- piston, small

1шт.

Part of Seal Kit, P/N P5449683

1шт.

29

P1330407

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

- piston, large, outer

1шт.

Part of Seal Kit, P/N P5449683

1шт.

30

P4229111

COUPLING

- drive motor

1шт.

31

P3145090

DISC

- brake, metal, internal teeth

5шт.

32

P1245225

DISC

- brake, friction, external teeth

6шт.

33

P2828593

SPACER

- brake disc

1шт.

34

P4339387

GEAR

SUN GEAR - planetary

1шт.

35

P936358

RING

COVER - seal

1шт.

36

P3333004

SCREW

- special, seal cover

3шт.

37

P2230456

O-RING

- brake housing, large

1шт.

38

L30522

O-RING,0.492" ID x 0.106" Width

- brake housing, small

2шт.

39

P4229110

HUB

HOUSING - brake

1шт.

40

P8046027

SEAL

ASSEMBLY - brake housing

1шт.

P5449683

KIT

- seal, includes Refs. 26, 28 and 29

1шт.
