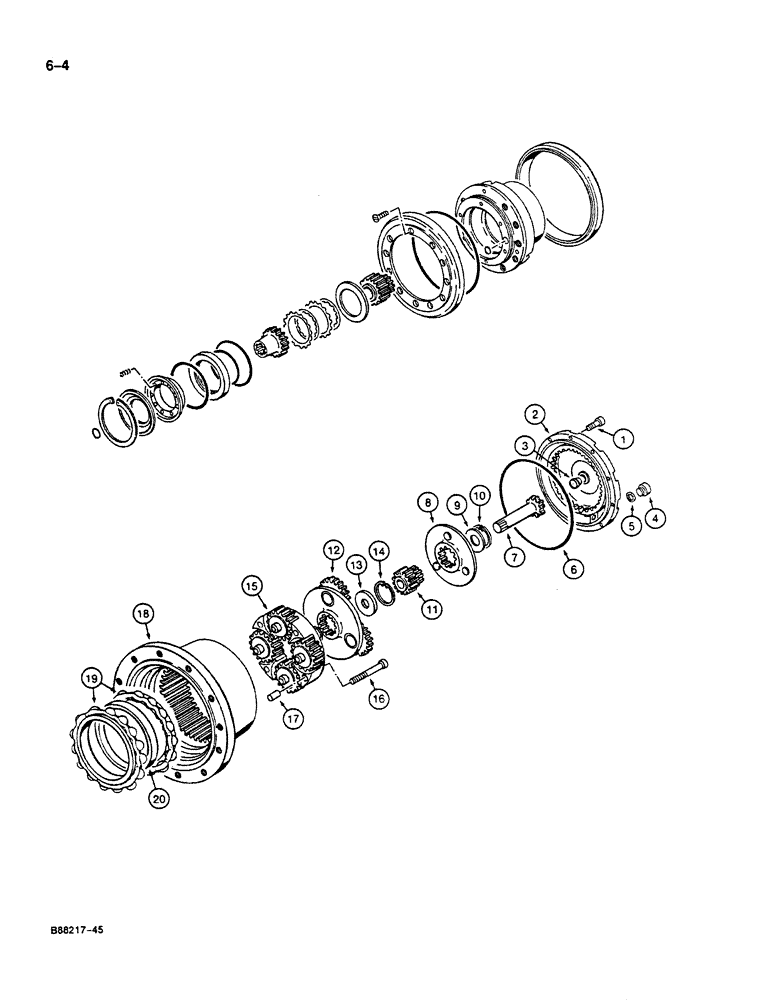

Запчасти Case 125B (6-04) - FINAL DRIVE TRANSMISSION, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (06) - POWER TRAIN

P2648525

REDUCER

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 20

2шт.

1

P1532917

BOLT

- hex socket head, 10 mm x 25 mm, class 12.9, use Loctite 242 when assembling

10шт.

P5140366

COVER

ASSEMBLY - planetary, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

3

P3545017

HOLE PLUG BUTTON

BUSHING - planetary cover

1шт.

4

P2537489

PLUG

- planetary cover

2шт.

5

P545217

GASKET

SEAL - plug

2шт.

6

P2030430

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

-, Serial Range: cover-hub

1шт.

7

P4339388

GEAR

PINION SHAFT - transmission

1шт.

P4339389

PINION CARRIER

CARRIER ASSEMBLY - planetary, third stage, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CARRIER - planetary, third stage

1шт.

9

P2728966

RING

SPACER - third stage carrier

1шт.

10

P936349

RING

SNAP RING - spacer

1шт.

11

P4339373

GEAR

SUN GEAR - planetary

1шт.

P4339390

PINION CARRIER

CARRIER ASSEMBLY - planetary, second stage, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER - planetary, second stage

1шт.

13

P2828599

RING

SPACER - second stage carrier

1шт.

14

P36245

CIRCLIP

SNAP RING - sun gear

1шт.

Ref. # 14a - (First stage carrier) The needle bearings for this part are NSS. Dimensions are as follows: 16mm x 21.8mm. Buy locally.

1шт.

P4339391

PINION CARRIER

CARRIER ASSEMBLY - planetary, first stage, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - planetary, first stage

1шт.

17

P1929255

BUSHING

SPACER - bolt

4шт.

P8346270

SPARE PART SET

HUB ASSEMBLY - transmission, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - transmission

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - hub, consists of two bearings

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - hub bearing

1шт.
