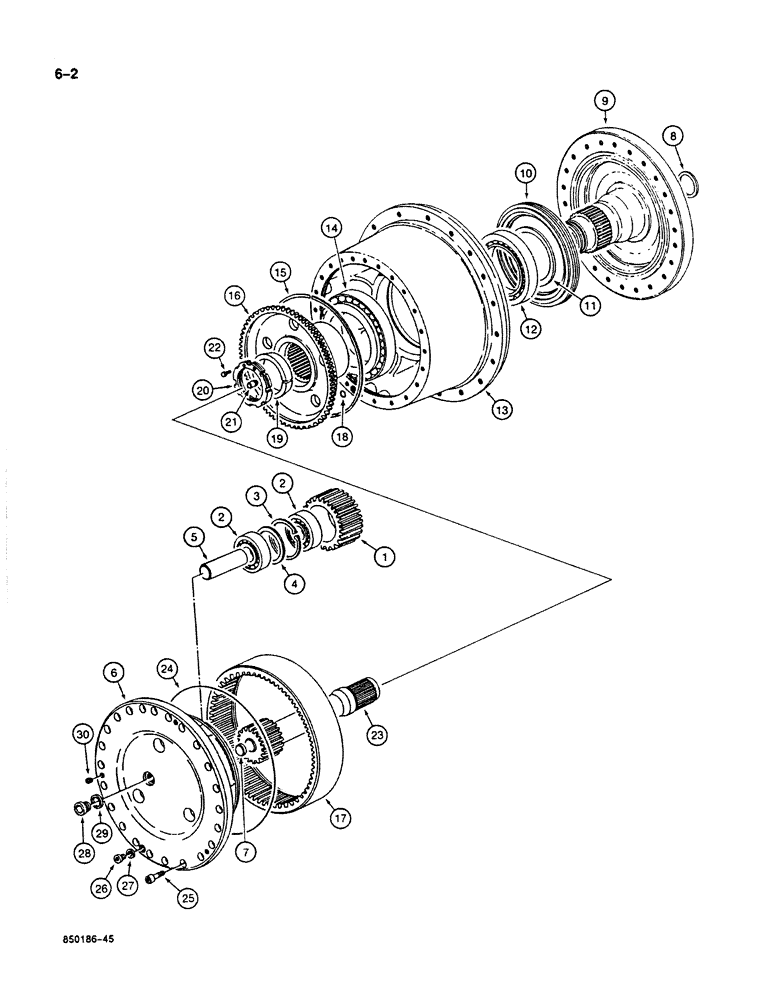

Запчасти Case 125B (6-02) - FINAL DRIVE TRANSMISSION, P.I.N. 74251 THROUGH 74879 (06) - POWER TRAIN

P1938952

RESTRICTOR

FINAL DRIVE TRANSMISSION ASSEMBLY - complete on this figure, Includes: Ref. 1 - 30

2шт.

P1938967

PINION CARRIER

PLANETARY GEAR AND CARRIER ASSEMBLY - final drive, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - planetary

3шт.

2

NSS

NOT SOLD SEPARAT

BALL BEARING - planetary gear

6шт.

3

NSS

NOT SOLD SEPARAT

SNAP RING - planetary gear

3шт.

4

NSS

NOT SOLD SEPARAT

WASHER - throughst

3шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - planetary gear

3шт.

6

NSS

NOT SOLD SEPARAT

CARRIER - planetary gear

1шт.

7

P145011

STOP

- planetary drive

1шт.

8

P46094

OIL SEAL

SEAL - spindle

1шт.

9

NSS

NOT SOLD SEPARAT

SPINDLE - final drive

1шт.

10

P7546046

SEAL

- spindle, inner

1шт.

11

P4628729

WASHER

SPACER - bearing

1шт.

12

P339806

BEARING

BALL BEARING - spindle

1шт.

13

P5140343

HOUSING

- final drive transmission

1шт.

14

P1139830

BEARING

BALL BEARING - planetary hub

1шт.

P1448586

HUB

ASSEMBLY - planetary, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SNAP RING - planetary hub

1шт.

16

NSS

NOT SOLD SEPARAT

HUB - planetary

1шт.

17

NSS

NOT SOLD SEPARAT

RING GEAR - planetary

1шт.

18

P2230423

O-RING

- seal

1шт.

19

P1929025

CONE

- locking

1шт.

20

P1634597

NUT

- locking

1шт.

21

P727819

SET OF DOWELS

DOWEL PIN - shaft

1шт.

22

P733031

SCREW

- locking nut

2шт.

23

P1938968

SHAFT

AND GEAR - planetary drive

1шт.

24

P1230461

O-RING

-, Serial Range: carrier-housing

1шт.

25

P532924

SCREW

-, Serial Range: carrier-housing

24шт.

26

P37477

PLUG

- drain

1шт.

27

P28431

COMPOSITE SEAL

GASKET - drain plug

1шт.

28

P37496

PLUG

- fill

1шт.

29

P45233

COMPOSITE SEAL

GASKET - fill plug

1шт.

30

P32843

SCREW

SET SCREW - carrier

3шт.
