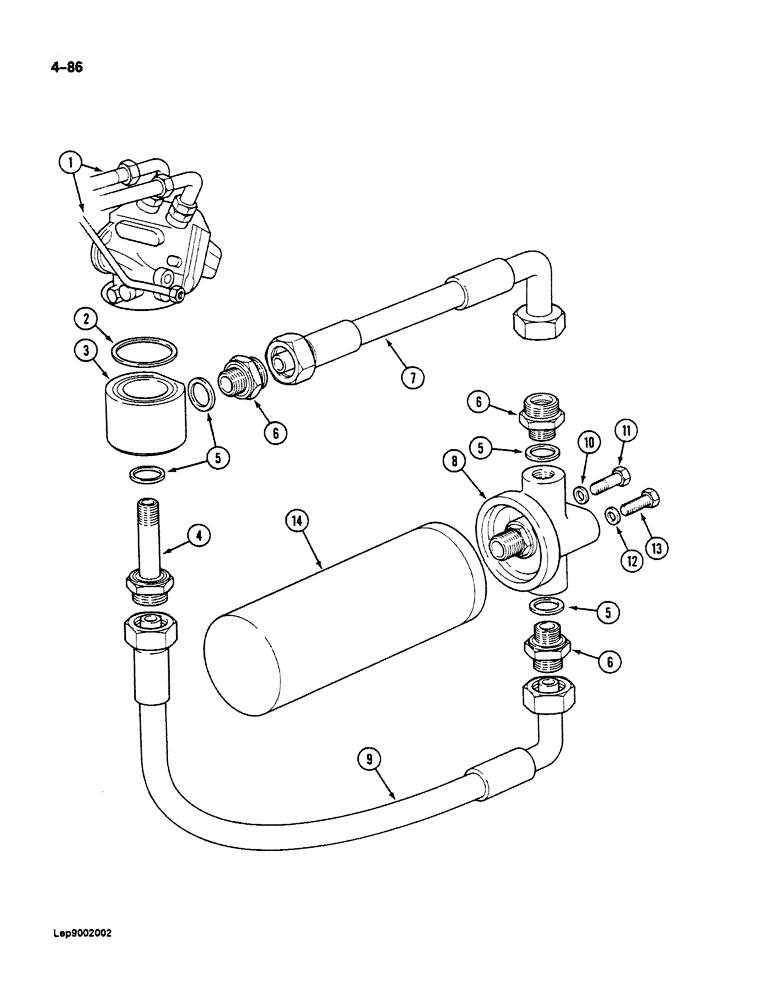

Запчасти Case 125B (4-86) - HEATER AND OIL LINES TO ENGINE, P.I.N. 26806 AND AFTER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HEATER AND OIL LINES - excavator, see Figures 4-82 and 4-84

1шт.

2

P130488

O-RING

- adapter

1шт.

3

P1737079

FITTING

BODY - filter head

1шт.

4

P4237587

BANJO BOLT

BOLT - special, hose mounting, at filter head, 22 mm, - 1.5

1шт.

5

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

4шт.

6

P4237588

UNION

ADAPTER - straight

3шт.

7

P7331936

HOSE

- 30 inch long (750 mm), body to head filter

1шт.

8

P2950515

SUPPORT

FILTER HEAD - engine oil filter

1шт.

9

P7331937

HOSE

- 39-3/8" long (1000 mm), filter, Serial Range: head-body

1шт.

10

P3528793

WASHER

SPACER - bolt, 8 mm thick

1шт.

11

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

1шт.

12

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

13

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

1шт.

14

REF

INSTRUCTION

ELEMENT - engine oil filter

1шт.
