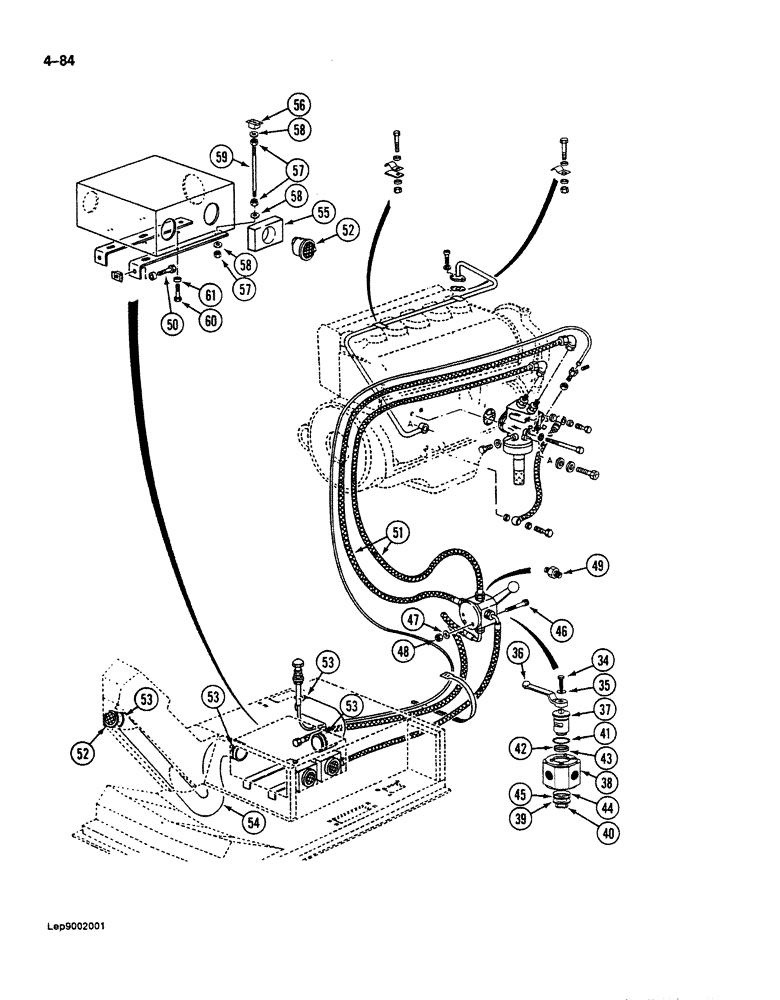

Запчасти Case 125B (4-84) - HEATER AND OIL LINES TO ENGINE, P.I.N. 26806 AND AFTER (04) - ELECTRICAL SYSTEMS

P837854

COCK

VALVE ASSEMBLY - shutoff, continued from Figure 4-82, Includes: Ref. 34 - 45

1шт.

34

NSS

NOT SOLD SEPARAT

BOLT - hex head, Serial Range: lever-spool

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - flat, lever bolt

1шт.

36

NSS

NOT SOLD SEPARAT

LEVER - shutoff

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - retainer ring

1шт.

40

P36313

RING, SNAP

RING - retainer

1шт.

P5449679

KIT

- repair, seal, Includes: Ref. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - spool

1шт.

42

NSS

NOT SOLD SEPARAT

RING - backup, seal

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - spool, upper

1шт.

44

NSS

NOT SOLD SEPARAT

O-RING - housing, lower

1шт.

45

NSS

NOT SOLD SEPARAT

RING - backup, seal

1шт.

46

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

47

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

48

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

49

P4037595

UNION

ADAPTER ASSEMBLY - straight

4шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

50

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Mounting bracket Hex, M10 x 30, 8.8

2шт.

51

P7331933

HOSE

- 31-1/2" (800 mm) long, oil filter to shutoff valve

2шт.

52

P3543238

DIFFUSER

- air

3шт.

53

P136922

CLAMP

- hose

4шт.

54

P5931910

LOOM

HOSE - heater to windshield diffuser

1шт.

55

P3441421

FOAM

BRACKET - mounting, air diffuser

2шт.

56

P1334560

NUT

- stud

2шт.

57

100016

NUT,M10 x 1.5, Cl 8

Stud M10, Cl 8

6шт.

58

P34611

WASHER

- flat, mounting stud

6шт.

59

P2527720

TRUSS ROD

STUD - heater mounting

2шт.

60

P33808

SCREW

BOLT - mounting bracket

4шт.

61

P3528799

WASHER

SPACER - mounting bolt

4шт.
