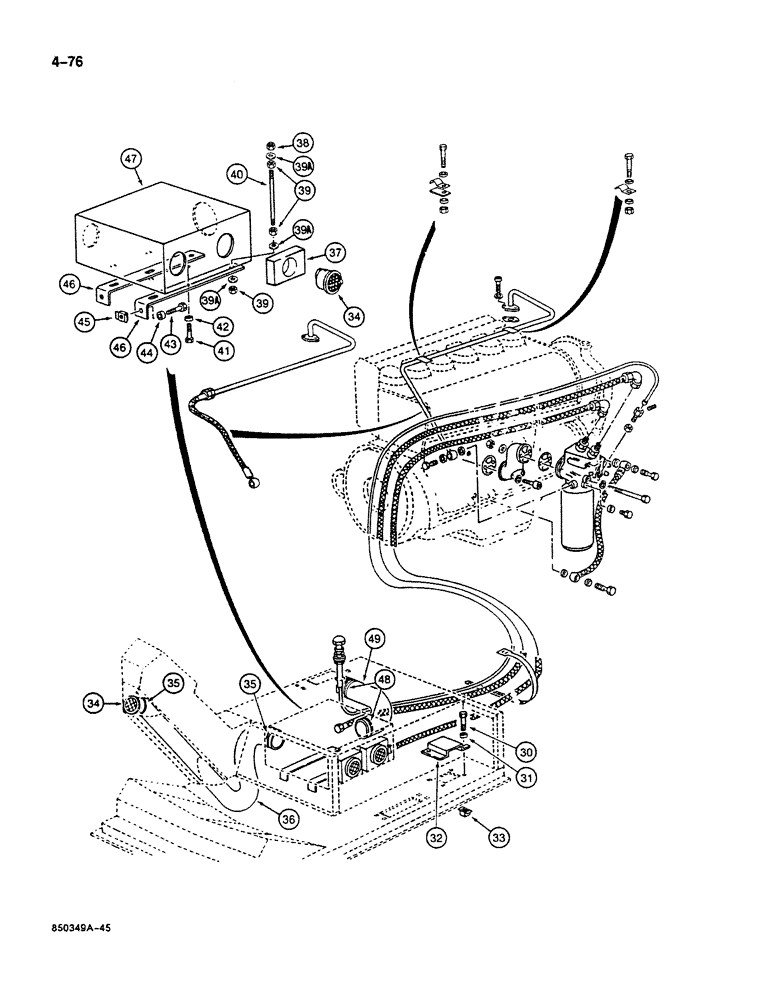

Запчасти Case 125B (4-76) - HEATER AND OIL LINES TO ENGINE, P.I.N. 74251 THROUGH 74857 (04) - ELECTRICAL SYSTEMS

30

120100

BOLT,M6 x 20mm, Cl 8.8

Bracket, continued from Figure 4-74 Hex, M6 x 20, 8.8

2шт.

31

P3528799

WASHER

SPACER - bolt

2шт.

32

P2726331

HOOD

BRACKET - oil heater

1шт.

33

P1334574

NUT

- bolt, bracket

2шт.

34

P3543238

DIFFUSER

- air

3шт.

35

P136922

CLAMP

- hose

2шт.

36

P5931910

LOOM

HOSE - heater to windshield diffuser

1шт.

37

P3441421

FOAM

BRACKET - mounting, air diffuser

2шт.

38

P1334560

NUT

- stud

2шт.

39

100016

NUT,M10 x 1.5, Cl 8

Stud M10, Cl 8

6шт.

39a

P34611

WASHER

- flat, mounting stud

6шт.

40

P2527720

TRUSS ROD

STUD - heater mounting

2шт.

41

P33808

SCREW

BOLT - mounting bracket

4шт.

42

P3528799

WASHER

SPACER - mounting bolt

4шт.

43

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Mounting bracket Hex, M10 x 30, 8.8

2шт.

44

P3528795

WASHER

SPACER - bolt

2шт.

45

P1334560

NUT

- bolt, mounting bracket

2шт.

46

P4625683

SUPPORT

BRACKET - heater mounting

2шт.

47

REF

INSTRUCTION

HEATER - engine oil, parts list Figure 4-88

1шт.

48

P136922

CLAMP

- hose

2шт.

49

P4931987

LOOM

HOSE - air flow

1шт.
