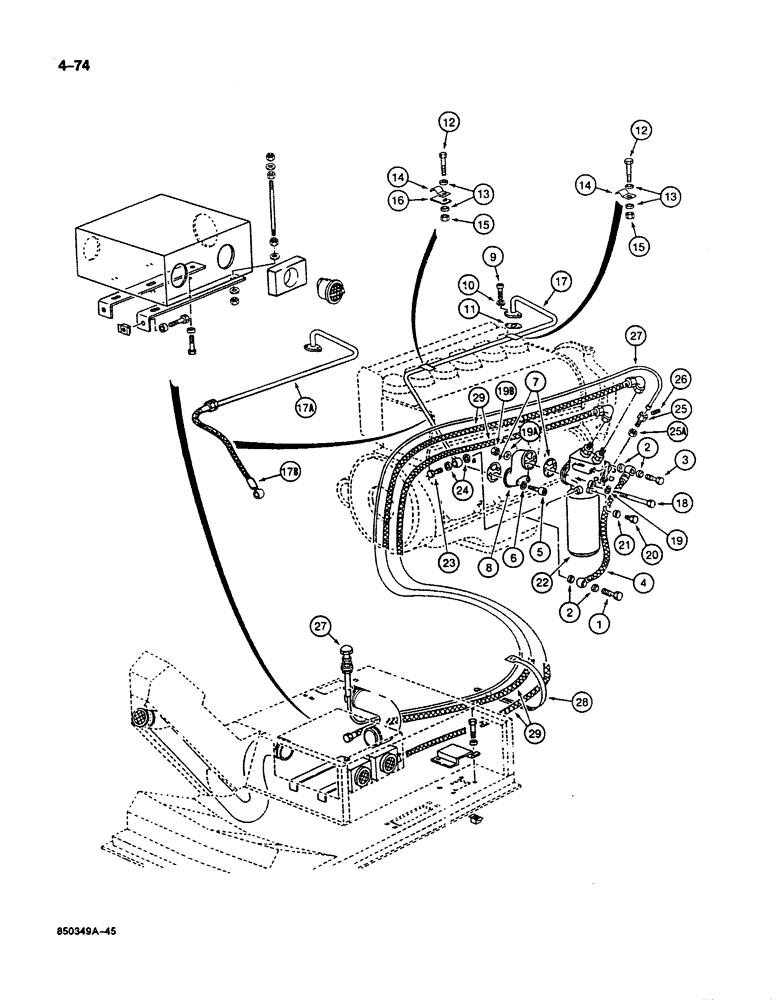

Запчасти Case 125B (4-74) - HEATER AND OIL LINES TO ENGINE, P.I.N. 74251 THROUGH 74857 (04) - ELECTRICAL SYSTEMS

1

P1533008

BOLT

- special, hose mounting, at engine

1шт.

2

P45201

WASHER, SEALING

SEAL - bolt

4шт.

3

P1030008

BOLT

BOLT - special, hose mounting, at engine oil filter

1шт.

4

P4931949

HOSE

- engine oil, 23-5/8" (600 mm) long

1шт.

5

P532911

SCREW

BOLT - filter manifold

2шт.

6

P34611

WASHER

- lock, manifold bolt

2шт.

7

P8846012

GASKET

SEAL - manifold

2шт.

8

P2346171

BRACKET

MANIFOLD - oil filter

1шт.

9

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

BOLT - tube flange

2шт.

10

P34709

WASHER

- lock

2шт.

11

P1246095

GASKET

- tube flange

1шт.

12

P33808

SCREW

BOLT - tube clamp

2шт.

13

P3528799

WASHER

SPACER - bolt

4шт.

14

P726821

DEUTZ PART

CLAMP - tube

2шт.

15

P234513

SAFETY NUT

NUT - clamp bolt

2шт.

16

P322711

PLATE

- clamp

1шт.

17

P5349004

PIPE

TUBE - engine oil, without hose, no longer used, replace with tube and hose (Ref. 17A and 17B)

1шт.

17a

P8347678

PIPE

TUBE - engine oil, use with hose (Ref. 17B)

1шт.

17b

P6631951

HOSE

- engine oil, use with tube (Ref. 17A)

1шт.

18

P132906

SCREW

BOLT - filter mounting

2шт.

19

P34611

WASHER

- lock, filter mounting bolt

2шт.

19a

P4328796

WASHER

SPACER - filter mounting bolt

2шт.

19b

P34598

SAFETY NUT

NUT - hex, filter mounting bolt

2шт.

20

P1737482

PLUG

- engine oil filter

1шт.

21

P7146072

SEAL

- plug

1шт.

22

REF

INSTRUCTION

FILTER HEAD ASSEMBLY - engine oil, parts list Figure 2-14

1шт.

23

P1537719

BANJO BOLT

BOLT -, Serial Range: tube-filter

1шт.

24

P545219

COPPER SEAL

SEAL - bolt

2шт.

25

P5846265

STOP LOCK

RETAINER - cable

1шт.

25a

825-1106

NUT,Hex, M6, Cl 8

- lock, retainer

1шт.

26

P32813

SCREW

SET SCREW - retainer

1шт.

27

P2531346

CONTROL SLIDE

CABLE - control, heater oil flow

1шт.

28

P136922

CLAMP

TIE STRAP - hoses

5шт.

29

P4931956

HOSE

- oil heater

2шт.
