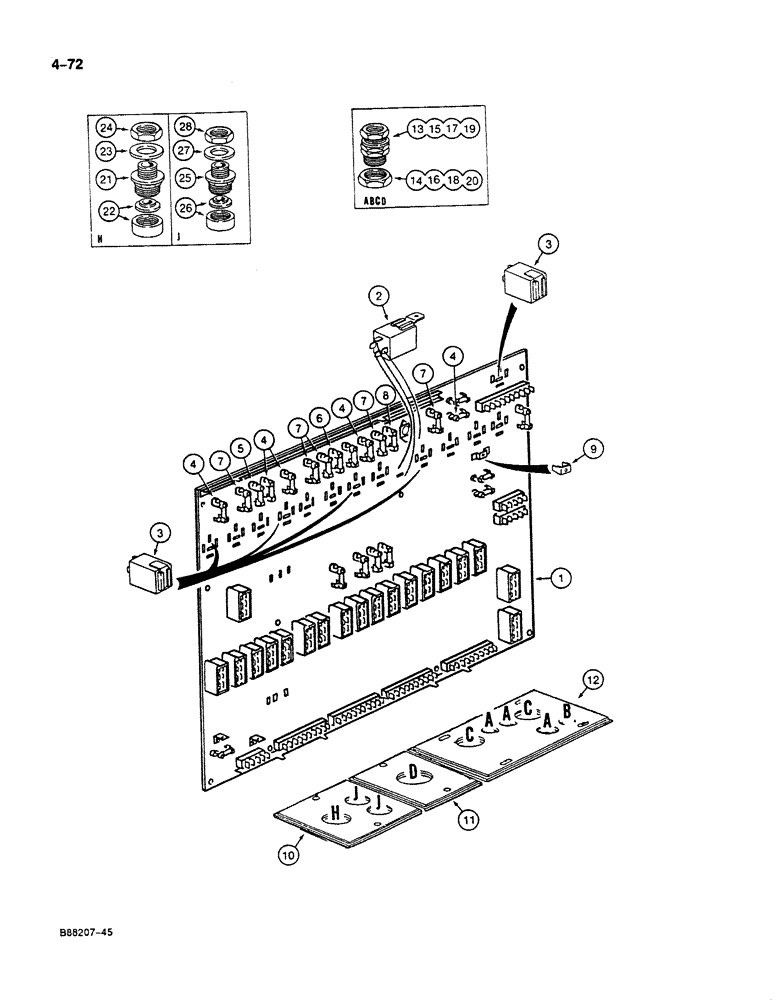

Запчасти Case 125B (4-72) - ELECTRICAL BOX, P.I.N. 74880 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P151678

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - electrical box

1шт.

2

P2041150

IGNITION SWITCH

MAGNETIC SWITCH - bolt-on type, for mounting hardware see Figures 4-68 and 4-70

1шт.

3

P3041116

IGNITION SWITCH

MAGNETIC SWITCH - plug-in type, at printed circuit

5шт.

4

P841297

FUSE

- circuit, 5 amp.

5шт.

5

P841296

FUSE

- circuit, 8 amp.

1шт.

6

P841295

FUSE

- circuit, 10 amp.

1шт.

7

P841294

FUSE

- circuit, 16 amp.

5шт.

8

P1241265

FUSE

- circuit, 30 amp.

1шт.

9

P640961

CONNECTION

CLIP - connector, printed circuit

1шт.

10

P4823469

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

11

P4823467

LARGE PLATE

PLATE - insulator, middle

1шт.

12

P4823471

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

13

P141431

GLAND

BUSHING - harness locking, 0.39" (10 mm) dia., "A" hole in plate

3шт.

14

P141439

NUT

- bushing, used with 0.39" (10 mm) dia. bushing

3шт.

15

P141430

GLAND

BUSHING - harness locking, 0.31" (8 mm) dia., "B" hole in plate

1шт.

16

P141438

NUT

- bushing, used with 0.31" (8 mm) dia. bushing

1шт.

17

P141434

GLAND

BUSHING - harness locking, 0.71" (18 mm) dia., "C" hole in plate

2шт.

18

P141452

NUT

- bushing, used with 0.71" (18 mm) dia. bushing

2шт.

19

P141435

GLAND

BUSHING - harness locking, 0.94" (24 mm) dia., "D" hole in plate

1шт.

20

P141453

NUT

- bushing, used with 0.94" (24 mm) dia. bushing

1шт.

21

P2340415

BODY

ADAPTER - plate cover, "H" hole in plate

1шт.

22

P2340414

CAP

COVER AND SEAL - adapter

1шт.

23

P7546026

SEAL

-, Serial Range: adapter-box

1шт.

24

P1634584

NUT

- locking, Serial Range: adapter-box

1шт.

25

P2340444

BODY

ADAPTER - plate cover, "J" hole in plate

2шт.

26

P2340443

CAP

COVER AND SEAL - adapter

2шт.

27

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

28

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.
