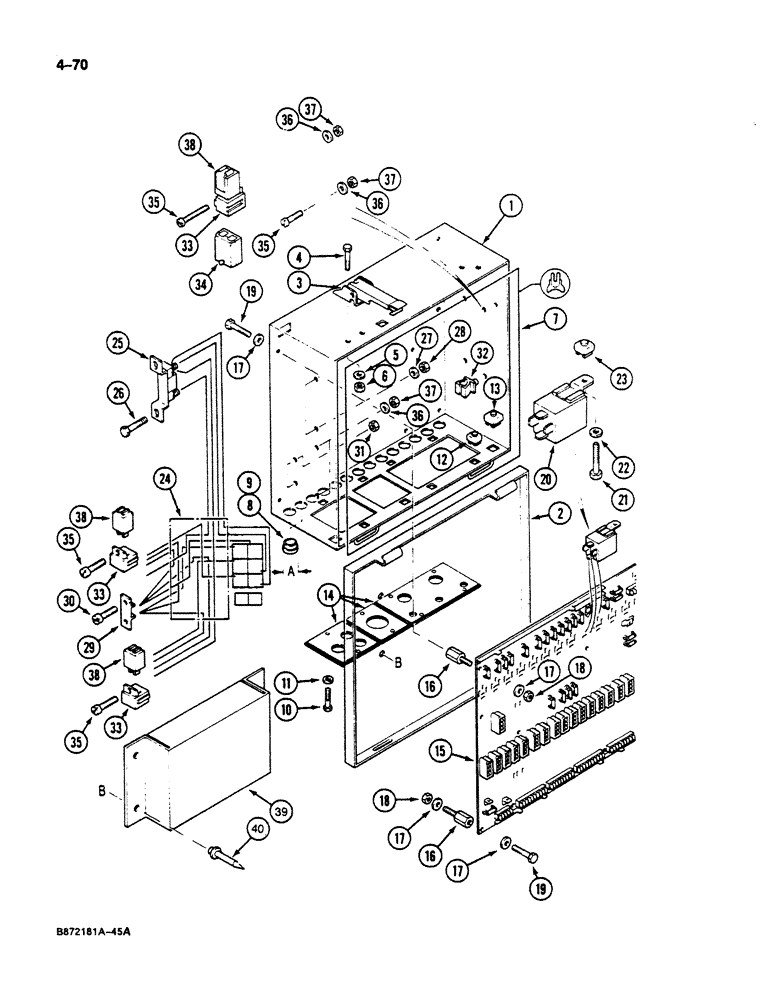

Запчасти Case 125B (4-70) - ELECTRICAL BOX, P.I.N. XXXXX AND AFTER. (04) - ELECTRICAL SYSTEMS

1

P2241093

CONTROL PANEL

BOX - electrical

1шт.

2

P8143811

DOOR

- electrical box

1шт.

3

P3036980

FASTENER

LATCH - door

2шт.

4

P433811

SCREW

BOLT - hex head, 4 mm x 10 mm

4шт.

5

P34603

WASHER

- flat, 4 mm

4шт.

6

P34107

NUT - hex, 4 mm

4шт.

7

P2047020

WINDOW FRAME

SEAL - door, rubber

1шт.

8

P1337491

PLASTIC PLUG

PLUG - electrical box, "A" dimension is 25/32" (20 mm)

7шт.

9

P2537453

PLASTIC PLUG

PLUG - electrical box, "A" dimension is 1" (25 mm)

6шт.

10

P32549

SCREW

BOLT - hex head, 6 mm x 16 mm

8шт.

11

P34607

WASHER

- flat, 6 mm

8шт.

12

P1334574

NUT

- cage type, 6 mm

8шт.

13

P1334560

NUT

- cage type, 10 mm

4шт.

14

REF

INSTRUCTION

PLATE - insulator, see Figure 4-72 for plates and related parts

3шт.

15

REF

INSTRUCTION

PRINTED CIRCUIT - electrical box, see Figure 4-72 for circuit board and related parts

1шт.

16

P2329172

SPACER

- special, printed circuit and receptacle mounting plate (Ref., Serial Range: 39)-box

15шт.

17

P34603

WASHER

- flat, 4 mm

24шт.

18

P2434505

SAFETY NUT

NUT - hex, self-locking, 4 mm

12шт.

19

P232604

SCREW

BOLT - hex head, 4 mm x 8 mm

12шт.

20

P2041150

IGNITION SWITCH

MAGNETIC SWITCH - bolt-on type

1шт.

21

P133857

SCREW

BOLT - hex head, 6 mm x 12 mm

1шт.

22

P35001

WASHER

- flat, 6 mm

1шт.

23

P1334574

NUT

- cage type, 6 mm

1шт.

24

P8547278

HARNESS

- electrical box

1шт.

25

P342440

RESISTOR

- electrical circuit

1шт.

26

P133857

SCREW

BOLT - hex head, 6 mm x 12 mm

2шт.

27

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

28

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm

2шт.

29

P40826

SLIDER

CONNECTOR - electrical circuit

1шт.

30

P32531

SCREW

- slotted head, 4 mm x 20 mm

2шт.

31

P34107

NUT - hex, 4 mm

2шт.

32

P2036942

SUPPORT

CLAMP - harness, electrical box

3шт.

33

P40710

PLATE

RECEPTACLE - harness, magnetic switch

3шт.

34

P1340711

CASE

RECEPTACLE - wiring, electrical box

1шт.

35

P32538

SCREW

- slotted head, 5 mm x 16 mm

3шт.

36

P4328717

WASHER

SPACER - screw, 3 mm thick

3шт.

37

P34108

NUT

- hex, 5 mm

3шт.

38

P3041116

IGNITION SWITCH

MAGNETIC SWITCH - plug-in type

3шт.

39

P2125317

DOOR

BOX - parts catalogue

1шт.

40

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

4шт.
