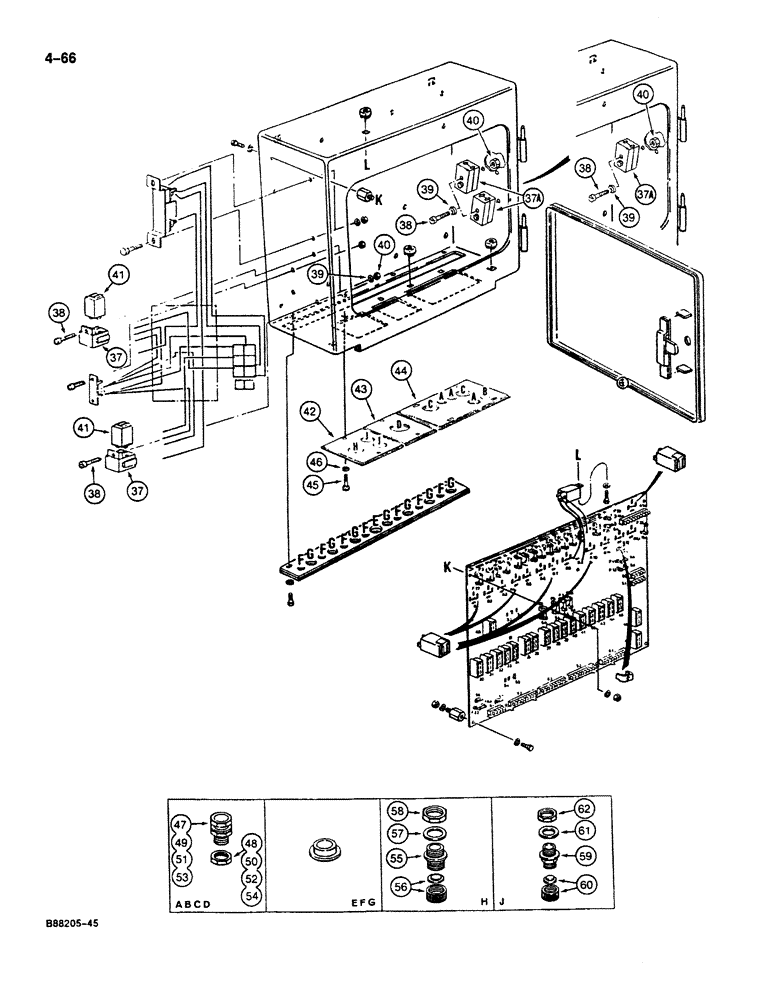

Запчасти Case 125B (4-66) - ELECTRICAL BOX, P.I.N. 74631 THROUGH 74879 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
37
P40710
PLATE
RECEPTACLE - harness, magnetic switch, continued from Figure 4-64
2шт.
37a
P1340711
CASE
RECEPTACLE - wiring, electrical box, 2 used on units, Serial Range: 74631-74852
1-2шт.
37a
P1340711
CASE
RECEPTACLE - wiring, electrical box, 1 used on units, Serial Range: 74853-74879
1-2шт.
38
P32538
SCREW
- slotted head, 5 mm x 16 mm
3-4шт.
39
P4328717
WASHER
SPACER - screw, 3 mm thick
3-4шт.
40
P34108
NUT
- hex, 5 mm
3-4шт.
41
P241140
RELAY
MAGNETIC SWITCH - plug-in type
2шт.
42
P2826198
LARGE PLATE
PLATE - insulator, left-hand side
1шт.
43
P3141477
LARGE PLATE
PLATE - insulator, middle
1шт.
44
P3141482
LARGE PLATE
PLATE - insulator, right-hand side
1шт.
45
P32549
SCREW
- slotted head, 6 mm x 16 mm
4шт.
46
P34607
WASHER
- flat, 6 mm
4шт.
47
P141431
GLAND
BUSHING - harness locking, 0.39" (10 mm) dia., "A" hole in plate
3шт.
48
P141439
NUT
- bushing, used with 0.39" (10 mm) dia. bushing
3шт.
49
P141430
GLAND
BUSHING - harness locking, 0.31" (8 mm) dia., "B" hole in plate
1шт.
50
P141438
NUT
- bushing, used with 0.31" (8 mm) dia. bushing
1шт.
51
P141434
GLAND
BUSHING - harness locking, 0.71" (18 mm) dia., "C" hole in plate
2шт.
52
P141452
NUT
- bushing, used with 0.71" (18 mm) dia. bushing
2шт.
53
P141435
GLAND
BUSHING - harness locking, 0.94" (24 mm) dia., "D" hole in plate
1шт.
54
P141453
NUT
- bushing, used with 0.94" (24 mm) dia. bushing
1шт.
55
P2340415
BODY
ADAPTER - plate cover, "H" hole in plate
1шт.
56
P2340414
CAP
COVER AND SEAL - adapter
1шт.
57
P7546026
SEAL
-, Serial Range: adapter-box
1шт.
58
P1634584
NUT
- locking, Serial Range: adapter-box
1шт.
59
P2340444
BODY
ADAPTER - plate cover, "J" hole in plate
2шт.
60
P2340443
CAP
COVER AND SEAL - adapter
2шт.
61
P7546066
SEAL
-, Serial Range: adapter-box
2шт.
62
P2434510
NUT
- locking, Serial Range: adapter-box
2шт.
Выбрано товаров: 28
