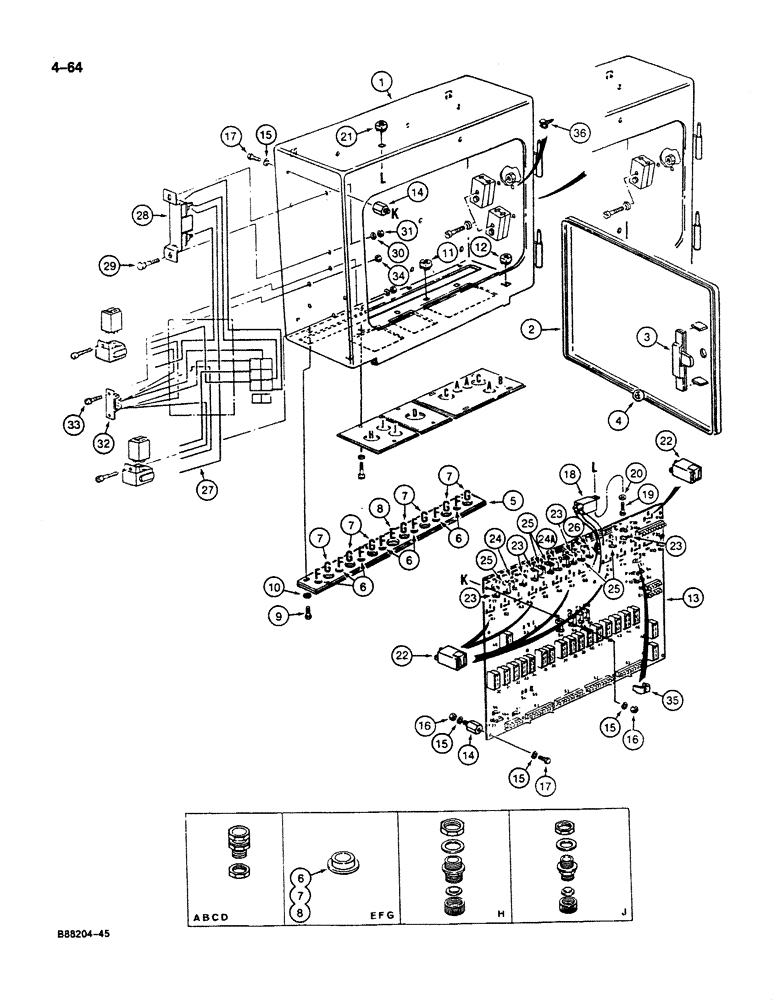

Запчасти Case 125B (4-64) - ELECTRICAL BOX, P.I.N. 74631 THROUGH 74879 (04) - ELECTRICAL SYSTEMS

1

P2241037

ELECTRICAL CABINET

BOX - electrical

1шт.

Ref #1 - P1451590 Decal for the Electrical Box

1шт.

P6643814

DOOR

ASSEMBLY - electrical box, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - electrical box

1шт.

3

P51922

LATCH

- door

1шт.

4

REF

INSTRUCTION

SEAL - door, rubber, 55-1/8" (1400 mm) long, cut from P303111

1шт.

P3141478

LARGE PLATE

PLATE ASSEMBLY - insulator, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - insulator

1шт.

6

P1337491

PLASTIC PLUG

PLUG - insulator plate, 0.61" (15.6 mm) dia., "F" hole in plate

7шт.

7

P2537453

PLASTIC PLUG

PLUG - insulator plate, 0.76" (19.3 mm) dia., "G" hole in plate

7шт.

8

P2537452

PLASTIC PLUG

PLUG - insulator plate, 1.20" (30.5 mm) dia., "E" hole in plate

1шт.

9

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

10

P350014

WASHER - lock, 6 mm

4шт.

11

P1334574

NUT

- cage type, 6 mm

8шт.

12

P1334560

NUT

- cage type, 10 mm

4шт.

13

P151678

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - electrical box

1шт.

14

P2329172

SPACER

- special, printed, Serial Range: circuit-box

12шт.

15

P34603

WASHER

- flat, 4 mm

24шт.

16

P2434505

SAFETY NUT

NUT - hex, self-locking, 4 mm

12шт.

17

P232604

SCREW

BOLT - hex head, 4 mm x 8 mm

12шт.

18

P2041150

IGNITION SWITCH

MAGNETIC SWITCH - bolt-on type

1шт.

19

P133857

SCREW

BOLT - hex head, 6 mm x 12 mm

1шт.

20

P35001

WASHER

- flat, 6 mm

1шт.

21

P1334574

NUT

- cage type, 6 mm

1шт.

22

P241140

RELAY

MAGNECTIC SWITCH - plug-in type, at printed circuit

5шт.

23

P841297

FUSE

- circuit, 5 amp.

5шт.

24

P841296

FUSE

- circuit, 8 amp.

1шт.

24a

P841295

FUSE

- circuit, 10 amp.

1шт.

25

P841294

FUSE

- circuit, 16 amp.

5шт.

26

P1241265

FUSE

- circuit, 30 amp.

1шт.

27

P8547278

HARNESS

- electrical box

1шт.

28

P342440

RESISTOR

- electrical circuit

1шт.

29

P133857

SCREW

BOLT - hex head, 6 mm x 12 mm

2шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

31

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm

2шт.

32

P40826

SLIDER

CONNECTOR - electrical circuit

1шт.

33

P32531

SCREW

- slotted head, 4 mm x 20 mm

2шт.

34

P34107

NUT - hex, 4 mm

2шт.

35

P640961

CONNECTION

CLIP - connector, printed circuit

1шт.

36

P2036942

SUPPORT

CLAMP - harness, electrical box

3шт.
