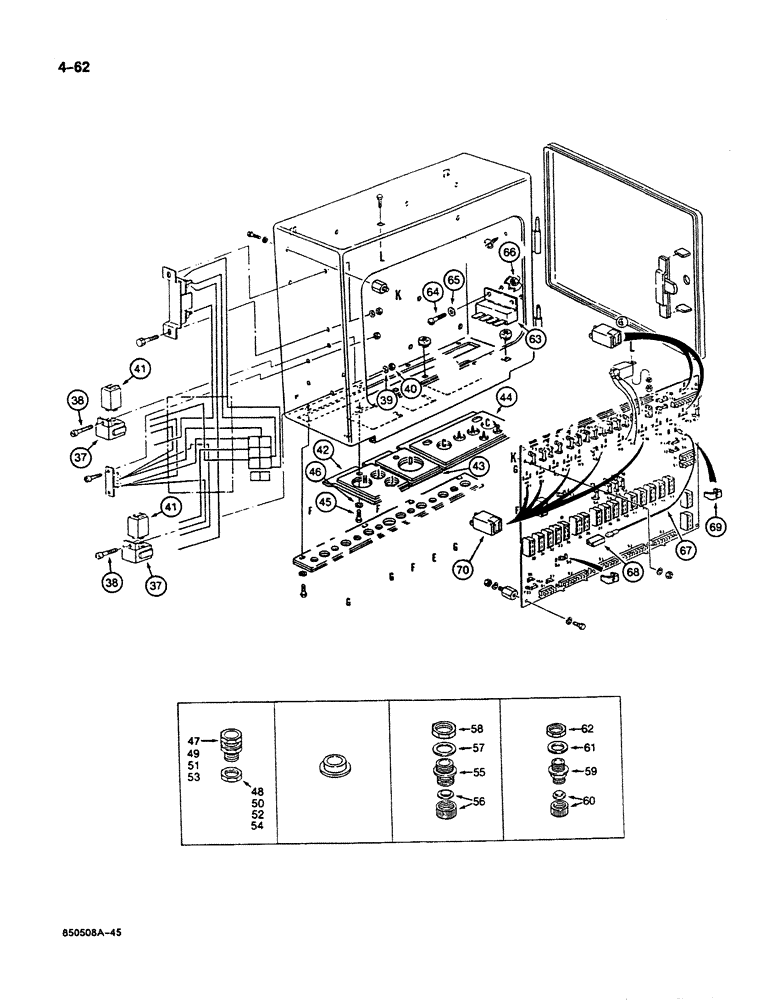

Запчасти Case 125B (4-62) - ELECTRICAL BOX, P.I.N. 74251 THROUGH 74630 (04) - ELECTRICAL SYSTEMS

37

P40710

PLATE

RECEPTACLE - harness, magnetic switch

2шт.

38

P32538

SCREW

- receptacle mounting

2шт.

39

P4328717

WASHER

SPACER - mounting screw

2шт.

40

P34108

NUT

- receptacle mounting

2шт.

41

P241140

RELAY

MAGNETIC SWITCH - plug-in type

2шт.

42

P3141479

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

43

P3141477

LARGE PLATE

PLATE - insulator, middle

1шт.

44

P3141482

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

45

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Plate mounting Hex, M6 - 1 x 16, 8.8

4шт.

46

P35001

WASHER

- lock

4шт.

47

P141431

GLAND

BUSHING - harness locking, 0.39" (10 mm) dia., "A" hole in plate

3шт.

48

P141439

NUT

- bushing, used with 0.39" (10 mm) dia. bushing

3шт.

49

P141430

GLAND

BUSHING - harness locking, 0.31" (8 mm) dia., "B" hole in plate

1шт.

50

P141438

NUT

- bushing, used with 0.31" (8 mm) dia. bushing

1шт.

51

P141434

GLAND

BUSHING - harness locking, 0.71" (18 mm) dia., "C" hole in plate

2шт.

52

P141452

NUT

- bushing, used with 0.71" (18 mm) dia. bushing

2шт.

53

P141435

GLAND

BUSHING - harness locking, 0.94" (24 mm) dia., "D" hole in plate

1шт.

54

P141453

NUT

- bushing, used with 0.94" (24 mm) dia. bushing

1шт.

55

P2340436

BODY

ADAPTER - plate cover, "H" hole in plate

1шт.

56

P2340435

CAP

COVER AND SEAL - adapter

1шт.

57

P7546067

SEAL

-, Serial Range: adapter-box

1шт.

58

P2434507

NUT

- locking, Serial Range: adapter-box

1шт.

59

P2340444

BODY

ADAPTER - plate cover, "J" hole in plate

2шт.

60

P2340443

CAP

COVER AND SEAL - adapter

2шт.

61

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

62

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.

63

P140615

ASSEMBLY

DIODE - electrical box, 1 used on units, Serial Range: 74251-74403

1-2шт.

63

P140615

ASSEMBLY

DIODE - electrical box, 2 used on units, Serial Range: 74404-74630

1-2шт.

64

P32538

SCREW

- diode mounting

2-4шт.

65

P4328717

WASHER

SPACER - mounting screw

2-4шт.

66

P34108

NUT

- hex, mounting screw

2-4шт.

67

P9247266

ELECTRICAL WIRE

WIRE - connector, printed circuit units / only, Serial Range: 74251-74300

1шт.

68

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip, units with / only, Serial Range: 74251-74300

1шт.

69

P640961

CONNECTION

CLIP - connector, printed circuit, units with / only, Serial Range: 74301-74630

1шт.

70

P241140

RELAY

MAGNETIC SWITCH - plug-in type, at printed circuit "K4" location, units with / only, Serial Range: 74404-74630

1шт.
