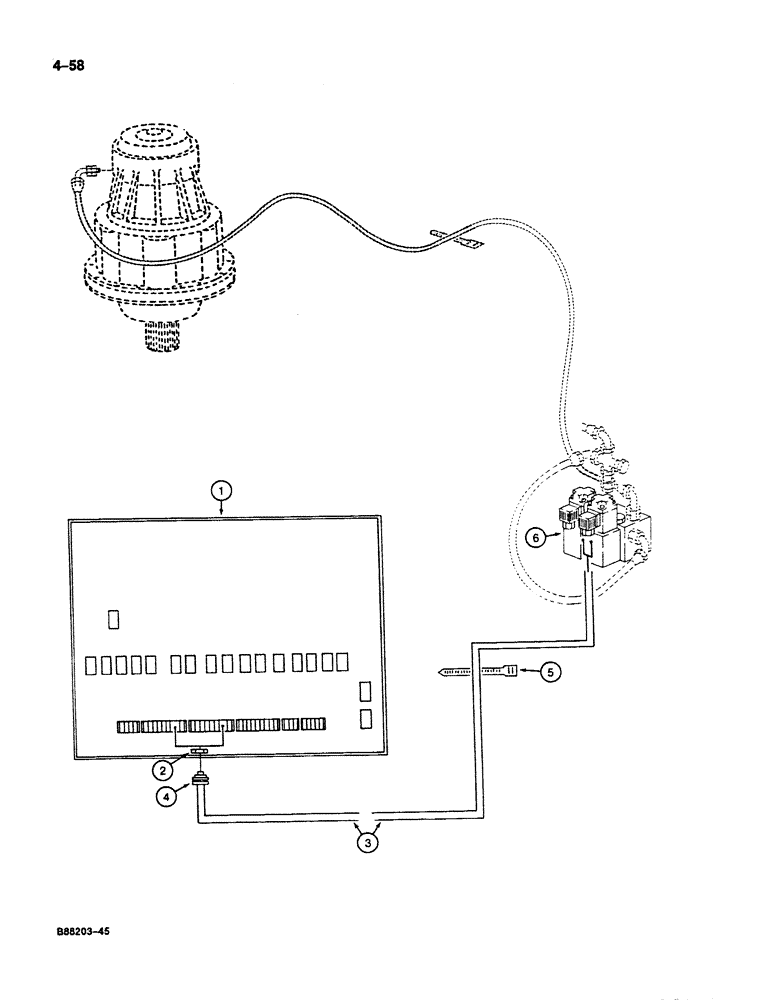

Запчасти Case 125B (4-58) - SWING BRAKE ELECTRICAL HARNESS, P.I.N. 74631 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BOX - electrical, see Figures 4-64 through 4-72

1шт.

2

P141439

NUT

- lock, bushing

1шт.

P8547254

CABLE

HARNESS ASSEMBLY - swing brake, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS - swing brake

1шт.

4

P141431

GLAND

BUSHING - harness locking

1шт.

5

P51946

CLAMP

TIE STRAP - harness

1шт.

6

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-242

1шт.
