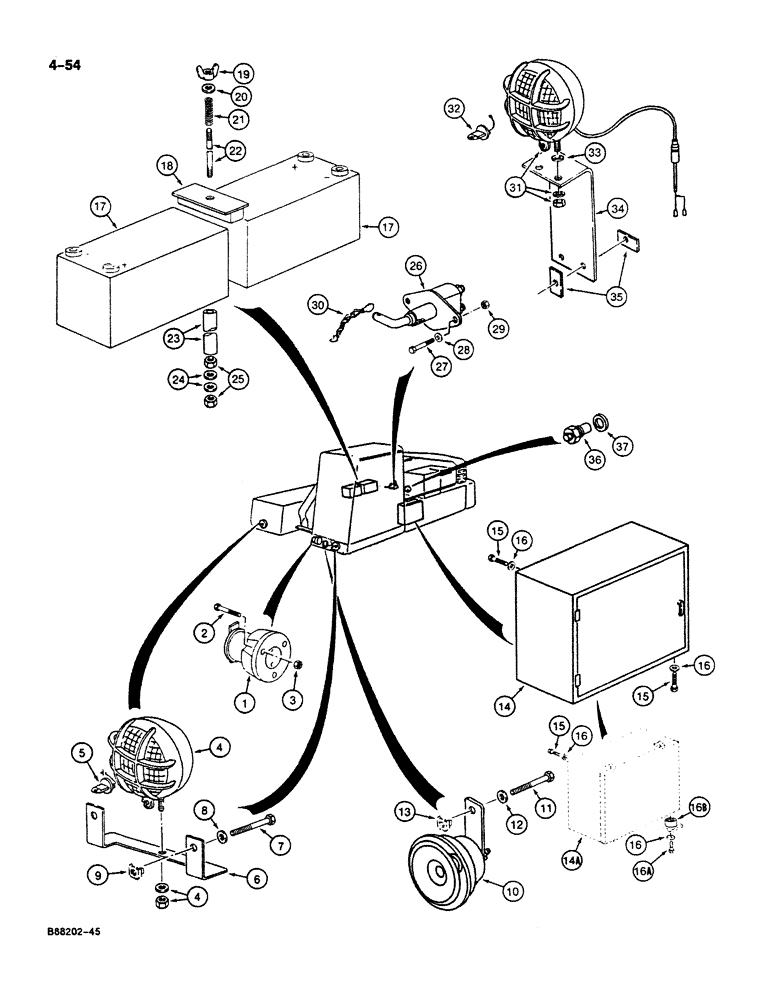

Запчасти Case 125B (4-54) - TURNTABLE ELECTRICAL COMPONENTS, P.I.N. 74631 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P40754

PEDESTAL

SOCKET - trouble lamp

1шт.

2

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.

3

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

3шт.

4

P841725

SPOTLIGHT

LAMP ASSEMBLY - work, at turntable, includes washer and nut

2шт.

5

P340501

LAMP

BULB - turntable lamp

2шт.

6

P4825675

SUPPORT

BRACKET - lamp mounting

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

8

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

9

P1334571

NUT

- cage type, 8 mm

2шт.

10

P841746

BUZZER

HORN - warning, component parts not serviced separately

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

12

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

13

P1334571

NUT

- cage type, 8 mm

1шт.

14

REF

INSTRUCTION

BOX - electrical, see Figures 4-64 and 4-66

1шт.

14a

REF

INSTRUCTION

BOX - electrical, see Figures 4-68 and 4-72

1шт.

15

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2-4шт.

16

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

16a

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

16b

P828504

BUSHING

SPACER - electrical box to mounting, used with 814-10055 bolt only (Ref. 16A)

2шт.

17

P941840

BATTERY, DRY

BATTERY - 12 volt, dry-type, see Figure 4-4 (Ref. 38) for corrosion protection washers

2шт.

18

P3141474

CONNECTING STRIP

BRACKET - battery hold down

3шт.

19

P34409

NUT, WING

WING NUT - stud

3шт.

20

P3528794

WASHER

SPACER - wing nut

3шт.

21

P138125

COMPRESSION SPRING

SPRING - tension

3шт.

22

P1727752

TRUSS ROD

STUD - battery retaining

3шт.

23

P1231832

TUBE

SLEEVE - stud

3шт.

24

P3528794

WASHER

SPACER - sleeve

6шт.

25

P34113

NUT

- hex, 8 mm, stud retaining

6шт.

26

P641221

IGNITION SWITCH

SWITCH - battery disconnect

1шт.

27

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm x 25 mm

2шт.

28

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

29

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm

2шт.

30

Q2631352

CHAIN (CE)

CHAIN - battery disconnect

1шт.

31

P841725

SPOTLIGHT

LAMP ASSEMBLY - work lamp, at boom, includes washer and nut

2шт.

32

P340501

LAMP

BULB - boom work lamp

2шт.

33

P35004

WASHER

- lamp mounting

2шт.

34

P2326776

LARGE PLATE

BRACKET - work lamp mounting, at boom cylinder tube clamp

2шт.

35

P22719

BRAKE

SPACER - bracket mounting

1шт.

36

P641661

PROBE

SENDER - temperature, hydraulic reservoir

1шт.

37

P28430

COMPOSITE SEAL

SEAL - temperature sender

1шт.
