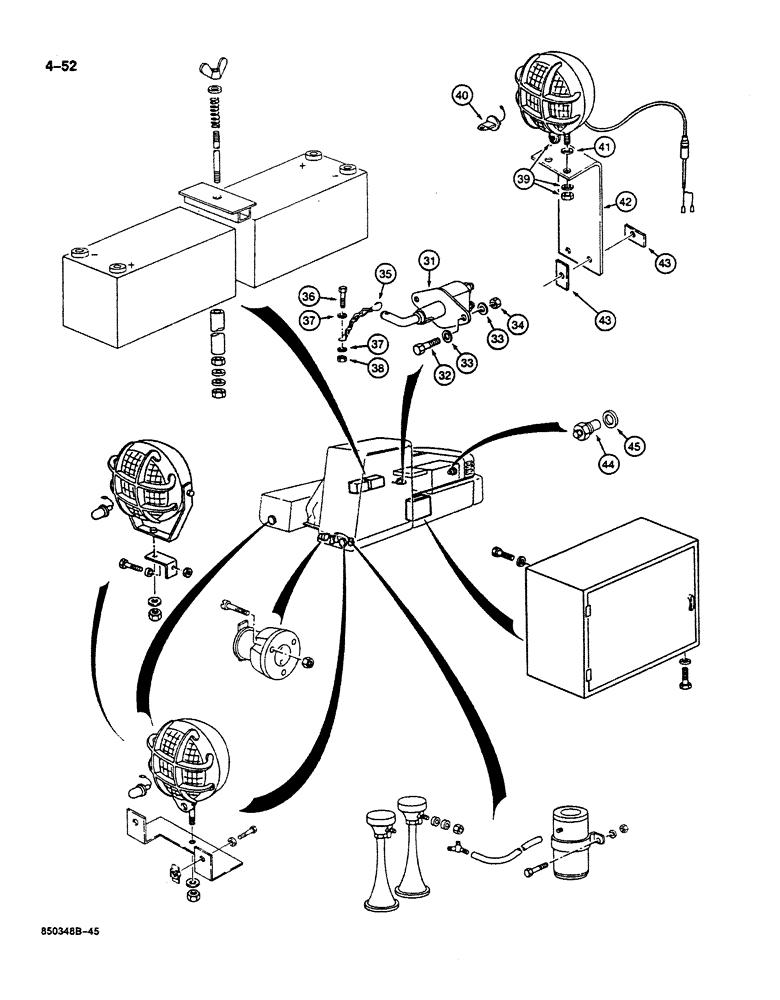

Запчасти Case 125B (4-52) - TURNTABLE ELECTRICAL COMPONENTS, P.I.N. 74251 THROUGH 74630 (04) - ELECTRICAL SYSTEMS

31

P641221

IGNITION SWITCH

SWITCH - battery disconnect, continued from Figure 4-50

1шт.

32

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- switch mounting

2шт.

33

P3528799

WASHER

SPACER - bolt

4шт.

34

825-1106

NUT,Hex, M6, Cl 8

- bolt

2шт.

35

P31523

CHAIN (AG)

CHAIN - battery disconnect

1шт.

36

P833886

SCREW

BOLT - chain mounting

1шт.

37

P4328717

WASHER

SPACER - bolt

2шт.

38

P34107

NUT - bolt

1шт.

39

P841725

SPOTLIGHT

LAMP ASSEMBLY - boom, work lamp, includes washer and nut

2шт.

40

P340501

LAMP

BULB - boom work lamp

2шт.

41

P35004

WASHER

- lamp mounting

2шт.

42

P4225650

PLATE

BRACKET - work lamp mounting, at boom cylinder tube clamp

2шт.

43

P22719

BRAKE

SPACER - bracket mounting

1шт.

44

P641661

PROBE

SENDER - temperature, hydraulic reservoir

1шт.

45

P28430

COMPOSITE SEAL

SEAL - temperature sender

1шт.
