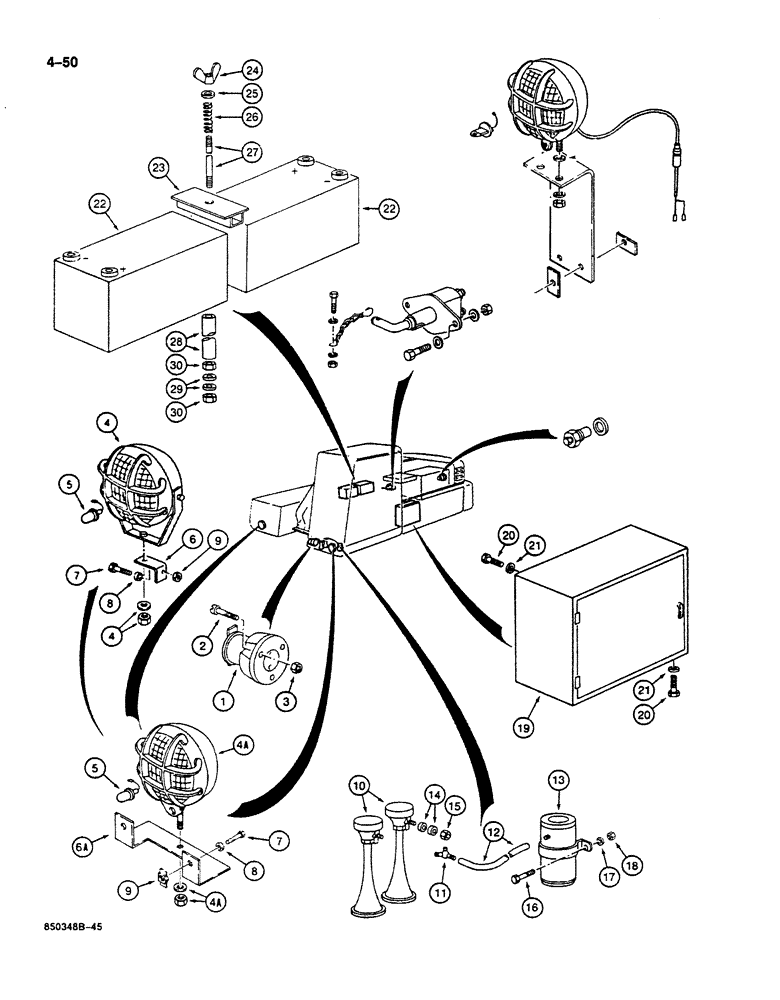

Запчасти Case 125B (4-50) - TURNTABLE ELECTRICAL COMPONENTS, P.I.N. 74251 THROUGH 74630 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
P40754
PEDESTAL
SOCKET - trouble lamp
1шт.
2
P32550
SCREW
BOLT - socket
3шт.
3
P234513
SAFETY NUT
NUT - bolt
3шт.
4
P141795
SPOTLIGHT
LAMP ASSEMBLY - turntable, Serial Range: 74251-74301
2шт.
4a
P841725
SPOTLIGHT
LAMP ASSEMBLY - turntable, Serial Range: 74302-74630
2шт.
5
P340501
LAMP
BULB - turntable lamp
2шт.
6
P4325697
HOOD
BRACKET - turntable lamp mounting, Serial Range: 74251-74301
2шт.
6a
P4825675
SUPPORT
BRACKET - turntable lamp mounting, Serial Range: 74302-74630
2шт.
7
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
BOLT, , Bracket Hex, M8 x 25, 8.8
2-4шт.
8
P3528794
WASHER
SPACER - bolt
2-4шт.
9
P1334571
NUT
- bolt
2-4шт.
P141768
BUZZER
HORN ASSEMBLY - air, Includes: Ref. 10 - 13
1шт.
10
P141767
HORN
- air
2шт.
11
P537241
TEE
- air compressor
1шт.
12
P1031978
TUBE
HOSE - to air compressor
1шт.
13
NSS
NOT SOLD SEPARAT
AIR COMPRESSOR ASSEMBLY - electric, horn, component parts not serviced separately
1шт.
14
P3528799
WASHER
SPACER - horn stud
4шт.
15
P34113
NUT
- horn stud
2шт.
16
814-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
air compressor mounting Hex, M8 x 30, 8.8
2шт.
17
P3528794
WASHER
SPACER - bolt
2шт.
18
P34113
NUT
- bolt
2шт.
19
REF
INSTRUCTION
BOX - electrical, see Figures 4-60 and 4-62
1шт.
20
814-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
Electric box Hex, M10 x 30, 8.8
6шт.
21
P3528795
WASHER
SPACER - bolt
6шт.
22
P941840
BATTERY, DRY
BATTERY - 12 volt, dry-type, see Figure 4-2 (Ref. 40) for corrosion protection washers
2шт.
23
P3141474
CONNECTING STRIP
BRACKET - battery hold down
3шт.
24
P34409
NUT, WING
WING NUT - stud
3шт.
25
P3528794
WASHER
SPACER - wing nut
3шт.
26
P138125
COMPRESSION SPRING
SPRING - tension
3шт.
27
P1727752
TRUSS ROD
STUD - battery retaining
3шт.
28
P1231832
TUBE
SLEEVE - stud
3шт.
29
P3528794
WASHER
SPACER - sleeve
6шт.
30
P34113
NUT
- STUD RETAINING
6шт.
Выбрано товаров: 33
