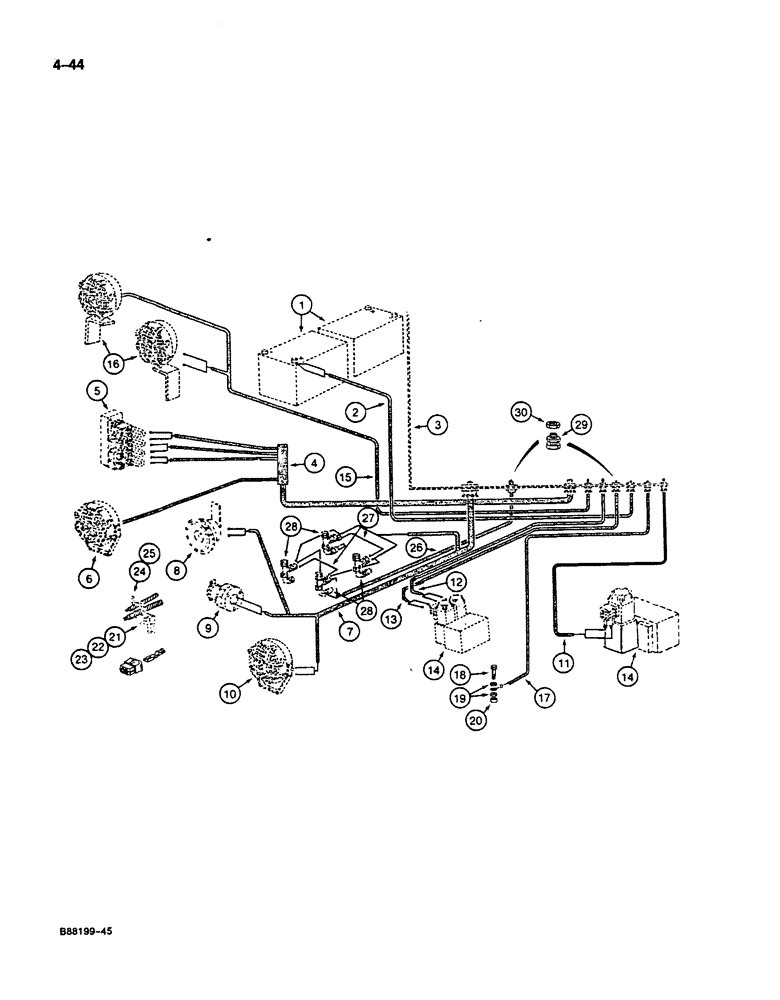

Запчасти Case 125B (4-44) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74631 THROUGH 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P941840

BATTERY, DRY

BATTERY - 12 volt, dry type

2шт.

2

P8547265

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

BOX - electrical, see Figures 4-64 through 4-72, see Figures 4-46 and 4-48 for turntable harness connections

1шт.

4

P9547230

HARNESS

- solenoid control valve and right-hand turntable lamp

1шт.

5

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figure 8-246

1шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, right-hand, see Figure 4-54 (Ref. 4

1шт.

7

P9247297

HARNESS

- horn, trouble lamp, and left-hand turntable lamp

1шт.

8

REF

INSTRUCTION

HORN - mounting parts on Figure 4-54

1шт.

9

REF

INSTRUCTION

SOCKET - trouble lamp, mounting parts on Figure 4-54

1шт.

10

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, left-hand, see Figure 4-54 (Ref. 4)

1шт.

11

P8547267

CABLE

HARNESS - safety switch

1шт.

12

P8547259

CABLE

HARNESS - travel brake switch

1шт.

13

P9547229

CABLE

HARNESS - second speed switch

1шт.

14

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figure 8-242

2шт.

15

P8547222

HARNESS

- work lamps

1шт.

16

REF

INSTRUCTION

LAMP ASSEMBLY - work, see Figure 4-54

2шт.

17

P8547239

CABLE

HARNESS - ground

1шт.

18

P1133803

SCREW

BOLT - ground harness mounting

1шт.

19

P3528799

WASHER

SPACER - ground harness mounting bolt

2шт.

20

825-1106

NUT,Hex, M6, Cl 8

- hex, ground harness mounting bolt

1шт.

21

P2036902

CLASP

CLIP - retainer, expands from 0.12" - 0.27" (3 - 7 mm)

1шт.

22

P2036903

CLASP

CLIP - retainer, expands from 0.31" - 0.51" (8 - 13 mm)

1шт.

23

PP2036939

CLASP

RETAINER - tie strap

1шт.

24

P336923

CLAMP

TIE STRAP - harness, 4-5/8" (117 mm) long

1шт.

25

P51946

CLAMP

TIE STRAP - harness, 10-1/8" (258 mm) long

1шт.

26

P9547228

CABLE

HARNESS - electrical, Serial Range: box-senders

1шт.

27

P9547227

ELECTRICAL WIRE

WIRE - connector, electrical senders

2шт.

28

REF

INSTRUCTION

SENDER - electrical, travel speed, see Figure 8-128 and 8-130 for related hydraulic components

4шт.

29

P141431

GLAND

BUSHING - harness locking, 0.39" (10 mm) diameter

2шт.

30

P141439

NUT

- bushing, used with 0.39" (10 mm) diameter bushing

2шт.
