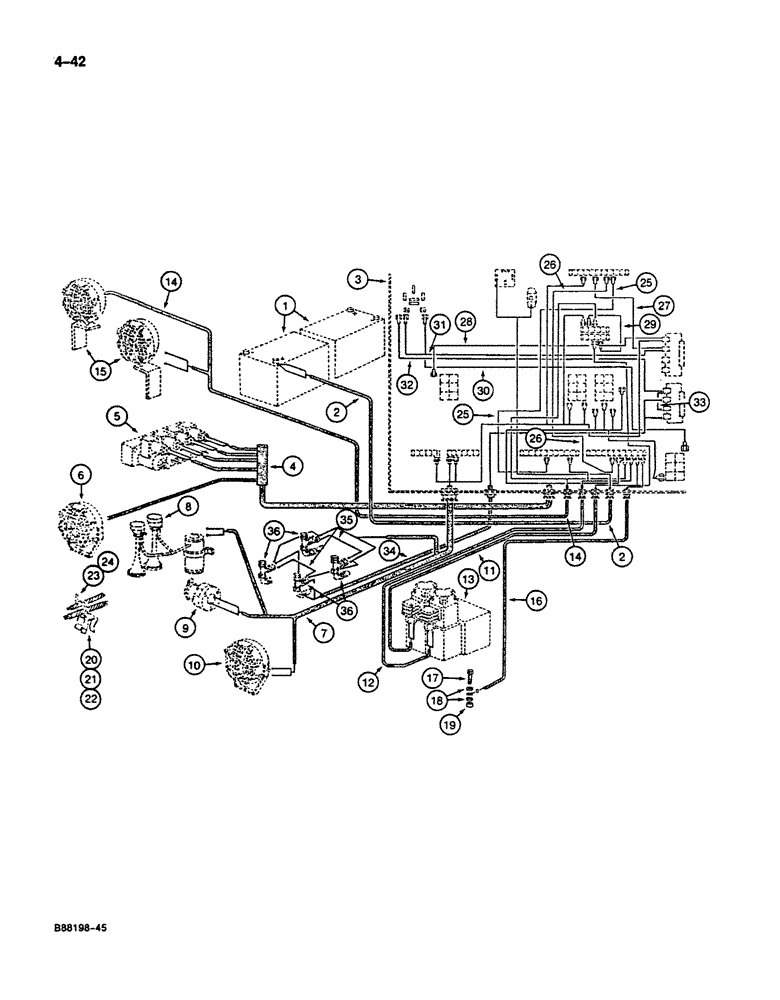

Запчасти Case 125B (4-42) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74404 THROUGH 74630 (04) - ELECTRICAL SYSTEMS

1

P941840

BATTERY, DRY

BATTERY - 12 volt, dry type

2шт.

2

P8547265

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 and 4-62

1шт.

4

P8547223

HARNESS

- solenoid control valve and right-hand turntable lamp

1шт.

5

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figure 8-246

1шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, right-hand, for correct assembly see Figure 4-50 (Refs. 4 and 4A)

1шт.

7

P9247224

HARNESS

- horn, trouble lamp, and left-hand turntable lamp

1шт.

8

REF

INSTRUCTION

HORN ASSEMBLY - air, see Figure 4-50

1шт.

9

REF

INSTRUCTION

SOCKET - trouble lamp, mounting parts on Figure 4-50

1шт.

10

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, left-hand, for correct assembly see Figure 4-50 (Refs. 4 and 4A)

1шт.

11

P8547267

CABLE

HARNESS - safety switch

1шт.

12

P8547259

CABLE

HARNESS - travel brake switch

1шт.

13

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figure 8-244

1шт.

14

P8547222

HARNESS

- work lamps

1шт.

15

REF

INSTRUCTION

LAMP ASSEMBLY - boom, work, see Figure 4-52

2шт.

16

P8547239

CABLE

HARNESS - ground

1шт.

17

P1133803

SCREW

BOLT - ground harness mounting

1шт.

18

P3528799

WASHER

SPACER - ground harness mounting bolt

2шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, ground harness mounting bolt

1шт.

20

P2036902

CLASP

CLIP - retainer, expands from 0.12" - 0.27" (3 - 7 mm)

1шт.

21

P2036903

CLASP

CLIP - retainer, expands from 0.31" - 0.51" (8 - 13 mm)

1шт.

22

P2036939

CLASP

RETAINER - tie strap

1шт.

23

P336923

CLAMP

TIE STRAP - harness, 4-5/8" (117 mm) long

1шт.

24

P51946

CLAMP

TIE STRAP - harness, 10-1/8" (258 mm) long

1шт.

25

P8647281

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

26

P9247220

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

27

P9247221

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

28

P9247222

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

29

P9247252

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

30

P9547220

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

31

P9547221

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

32

P9547225

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

33

P9547226

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

34

P9547228

CABLE

HARNESS - electrical, Serial Range: box-senders

1шт.

35

P9547227

ELECTRICAL WIRE

WIRE - connector, electrical senders

2шт.

36

REF

INSTRUCTION

SENDER - electrical, travel speed, see Figure 8-128 for related hydraulic components

4шт.
