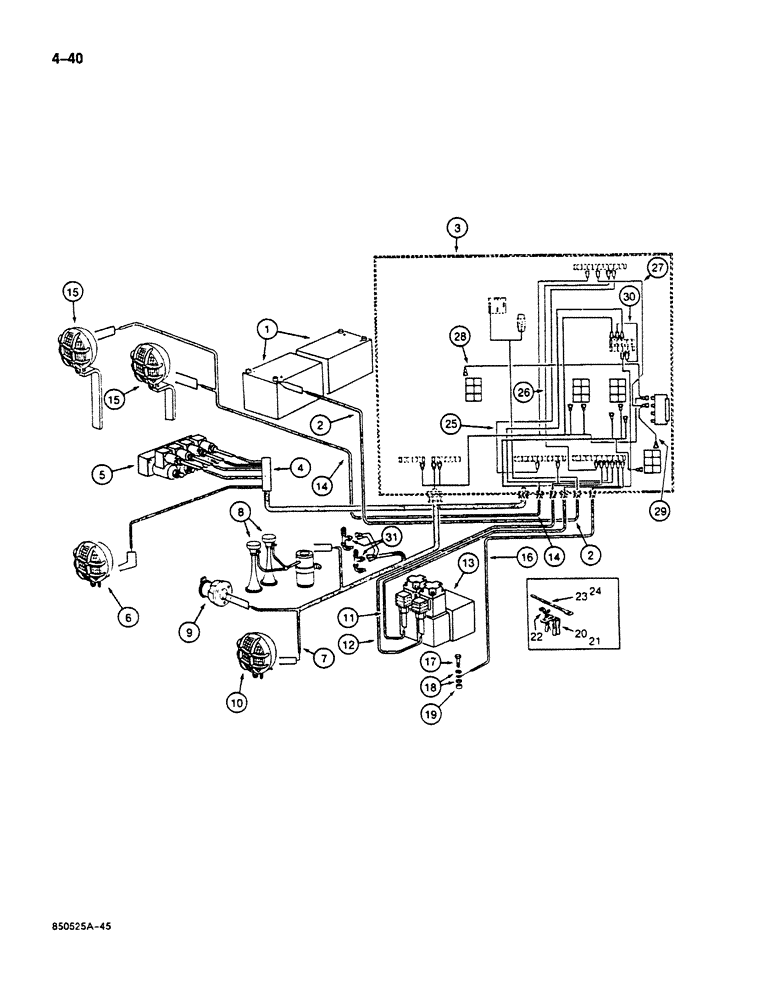

Запчасти Case 125B (4-40) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74251 THROUGH 74403 (04) - ELECTRICAL SYSTEMS

1

P941840

BATTERY, DRY

BATTERY - 12 volt, dry type

2шт.

2

P8547265

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 and 4-62

1шт.

4

P8547223

HARNESS

- solenoid control valve and right-hand turntable lamp

1шт.

5

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figures 8-244 and 8-246 for correct valve

1шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, right-hand, for correct assembly see Figure 4-50 (Ref. 4 and 4A)

1шт.

7

P9247224

HARNESS

- horn, trouble lamp, and left-hand turntable lamp

1шт.

8

REF

INSTRUCTION

HORN ASSEMBLY - air, see Figure 4-50

1шт.

9

REF

INSTRUCTION

SOCKET - trouble lamp, mounting parts on Figure 4-50

1шт.

10

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, left-hand, for correct assembly see Figure 4-50 (Ref. 4 and 4A)

1шт.

11

P8547267

CABLE

HARNESS - safety switch

1шт.

12

P8547259

CABLE

HARNESS - travel brake switch

1шт.

13

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, see Figure 8-244

1шт.

14

P8547222

HARNESS

- work lamps

14шт.

15

REF

INSTRUCTION

LAMP ASSEMBLY - work, see Figure 4-52

2шт.

16

P8547239

CABLE

HARNESS - ground

1шт.

17

P1133803

SCREW

BOLT - ground harness mounting

1шт.

18

P3528799

WASHER

SPACER - ground harness mounting bolt

2шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, ground harness mounting bolt

1шт.

20

P2036902

CLASP

CLIP - retainer, expands from 0.12" - 0.27" (3 - 7 mm)

1шт.

21

P2036903

CLASP

CLIP - retainer, expands from 0.31" - 0.51" (8 - 13 mm)

1шт.

22

PP2036939

CLASP

RETAINER - tie strap

1шт.

23

P336923

CLAMP

TIE STRAP - harness, 4.6" (117 mm) long

1шт.

24

P51946

CLAMP

TIE STRAP - harness, 10.2" (258 mm) long

1шт.

25

P8647281

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

26

P9247220

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

27

P9247221

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

28

P9247222

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

29

P9247223

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

30

P9247252

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

31

REF

INSTRUCTION

SENDER - electrical, travel speed, see Figure 8-126 for related hydraulic components

2шт.
