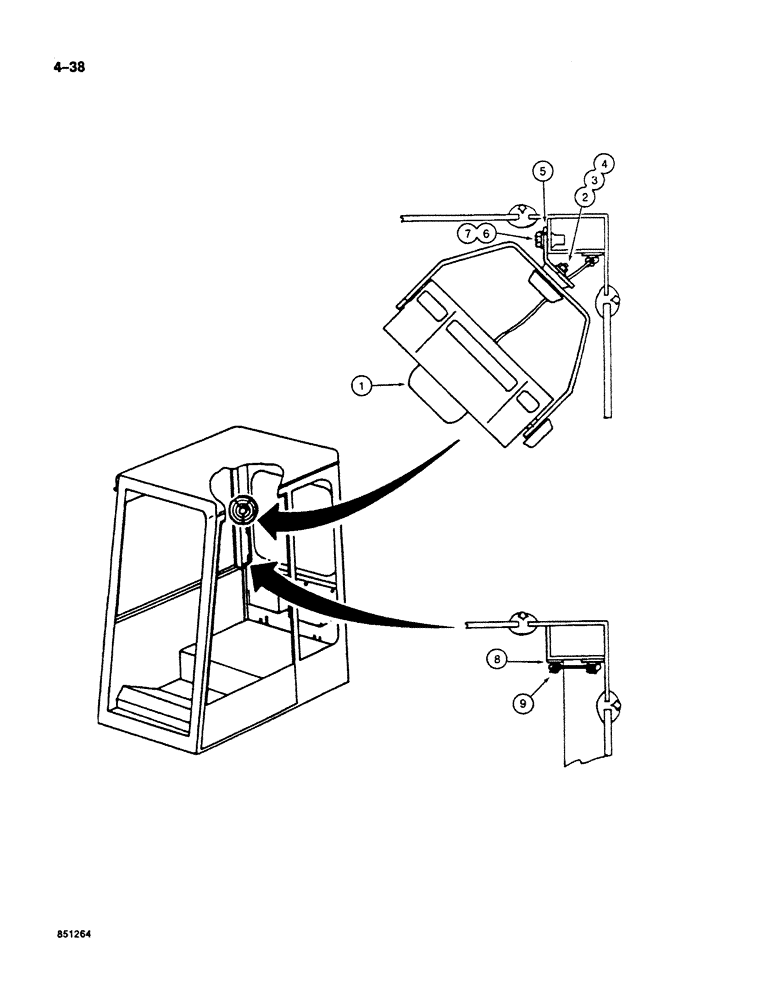

Запчасти Case 125B (4-38) - CAB FAN, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P1241868

VENTILATOR

FAN - cab

1шт.

2

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - fan to bracket

1шт.

3

P34603

WASHER

- lock, fan bolt

1шт.

4

P34107

NUT - hex, fan bolt

1шт.

5

P2426193

HOOD

BRACKET -, Serial Range: fan-cab

1шт.

6

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Bracket to cab Hex, M6 - 1 x 16, 8.8

1шт.

7

P35001

WASHER

- lock, bracket bolt

1шт.

8

P3036928

BASE

RETAINER - fan wire

1шт.

9

P1436941

MOUNTING CLIP

CLIP - retainer

1шт.
