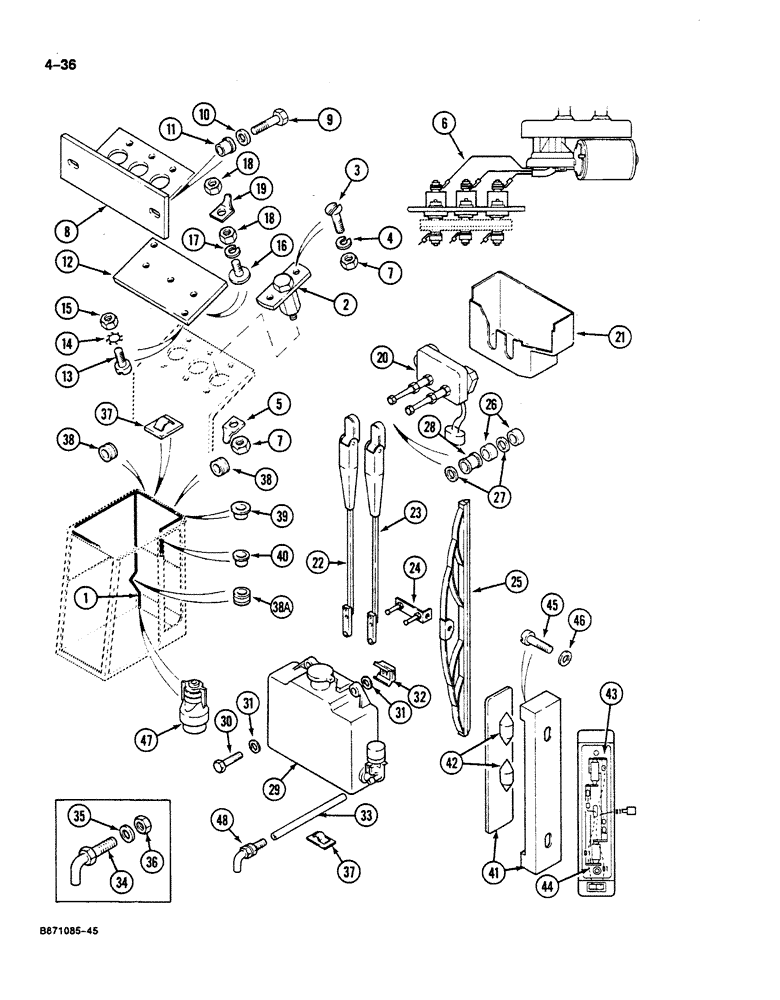

Запчасти Case 125B (4-36) - CAB ELECTRICAL COMPONENTS, P.I.N. 74600, 74605, 74607 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P8647276

HARNESS

- cab wiring

1шт.

2

P41676

IGNITION SWITCH

SWITCH - terminal, wiper motor

3шт.

3

P32427

SCREW

-, Serial Range: terminal-bracket

6шт.

4

P34703

WASHER

- lock

6шт.

5

P640921

CONNECTION

TERMINAL - wiper, Serial Range: motor-switch

3шт.

6

P5447281

ELECTRICAL WIRE

WIRE - terminal to wiper motor

1шт.

7

P34107

NUT - hex

9шт.

8

P2928214

SUPPORT

BRACKET - mounting, insulator and contact button

1шт.

9

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- bracket to cab

2шт.

10

P3528799

WASHER

SPACER - bolt

2шт.

11

P834513

NUT

RETAINER - bolt, sleeve type

2шт.

12

P1241437

RUBBER INSULATOR

INSULATOR - contact, Serial Range: button-bracket

1шт.

13

P32506

SCREW

-, Serial Range: insulator-bracket

2шт.

14

P34803

WASHER

- lock

2шт.

15

86508812

NUT,M3, Cl 8

2шт.

16

P1033082

SCREW

BUTTON - electrical contact

3шт.

17

P34706

WASHER

- lock

3шт.

18

P34108

NUT

- hex

6шт.

19

P640921

CONNECTION

TERMINAL - contact button to cab wiring

3шт.

20

P1241823

WIPER MOTOR

MOTOR ASSEMBLY - wiper, component parts not serviced separately

1шт.

21

P3840370

HOUSING

COVER - wiper motor

1шт.

22

P2343292

ARM

- wiper, outer

1шт.

23

P2343291

ARM

- wiper, inner

1шт.

24

P2343293

BRUSH HOLDER

LINKAGE - wiper arm

1шт.

25

P2343294

WIPER BLADE

WIPER - windshield

1шт.

26

P1128594

WASHER

SPACER - motor shaft, long

4шт.

27

P1446361

WASHER

SPACER - motor shaft, short

4шт.

28

P2541402

GROMMET

BUSHING - motor shaft

2шт.

29

P1241880

RESERVOIR ASSY.

PUMP AND RESERVOIR ASSEMBLY - windshield washer

1шт.

30

120100

BOLT,M6 x 20mm, Cl 8.8

Reservoir mounting to cab Hex, M6 x 20, 8.8

2шт.

31

P35002

WASHER

- flat

4шт.

32

P1334574

NUT

- retainer, clip type

2шт.

33

P1103643

PIPE

HOSE - washer nozzle

1шт.

34

P943210

JET

NOZZLE - windshield washer

1шт.

35

P4528713

WASHER

SPACER - washer nozzle

2шт.

36

100016

NUT,M10 x 1.5, Cl 8

Washer Nozzle M10, Cl 8

1шт.

37

P1241413

CLIP,ELECTRICAL

CLIP - washer hose and cab harness

4шт.

38

P41447

GROMMET

- rubber, Serial Range: harness-cab

3шт.

38a

P141458

GROMMET

- rubber, Serial Range: harness-cab

1шт.

39

P3141476

HALF-BUSHING

GROMMET - rubber, 0.79" (20 mm) diameter

1шт.

40

P3141475

HALF-BUSHING

GROMMET - rubber, 0.63" (16 mm) diameter

1шт.

41

P841718

COURTESY LIGHT

LAMP AND COVER - cab

1шт.

42

P40565

LAMP

BULB - cab lamp

2шт.

43

P6747257

ELECTRICAL WIRE

WIRE - lamp, upper

1шт.

44

P6747256

ELECTRICAL WIRE

WIRE - lamp, lower

1шт.

45

P32529

SCREW,Hex Soc Hd, M4 x 16

- lamp to cab

2шт.

46

P4328717

WASHER

SPACER - lamp screw

2шт.

47

P40746

CONNECTOR,ELECTRIC

PLUG - cab harness, 7-way

1шт.
