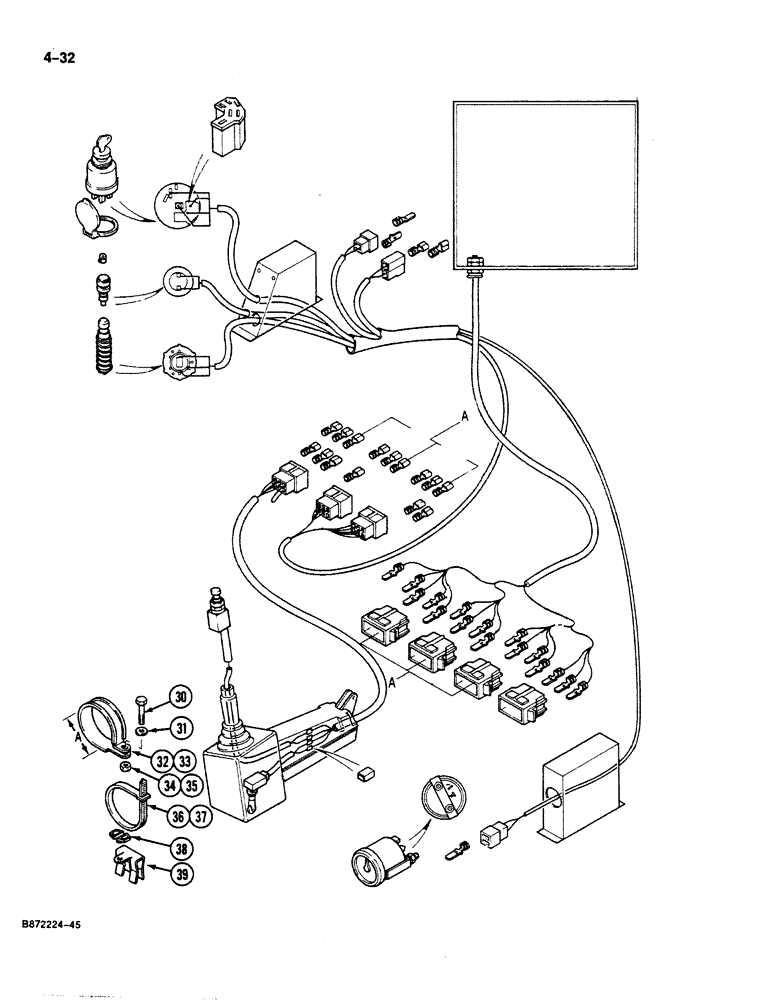

Запчасти Case 125B (4-32) - CAB ELECTRICAL HARNESS, P.I.N. 74771, 74773, 74775, 74777 THRU 74963, 21801- 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

30

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

1шт.

31

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

32

P51959

CLAMP

- harness, rubber coated, dimension "A" is 1-1/2" (38 mm)

1шт.

33

P1736988

CLAMP

- harness, rubber coated, dimension "A" is 1-3/4" - 2" (44 - 51 mm)

1шт.

34

P34113

NUT

- hex, 8 mm, used with P51959 clamp

1шт.

35

P1334571

NUT

- cage type, 8 mm, used with P1736988 clamp

1шт.

36

P336923

CLAMP

TIE STRAP - harness, 4-5/8" (117 mm) long

1шт.

37

P51946

CLAMP

TIE STRAP - harness, 10-1/8" (258 mm) long

1шт.

38

P2036939

CLASP

RETAINER - tie strap

1шт.

39

P2036902

CLASP

CLIP - retainer, expands from 1/8" - 1/4" (3 to 7 mm)_

1шт.
