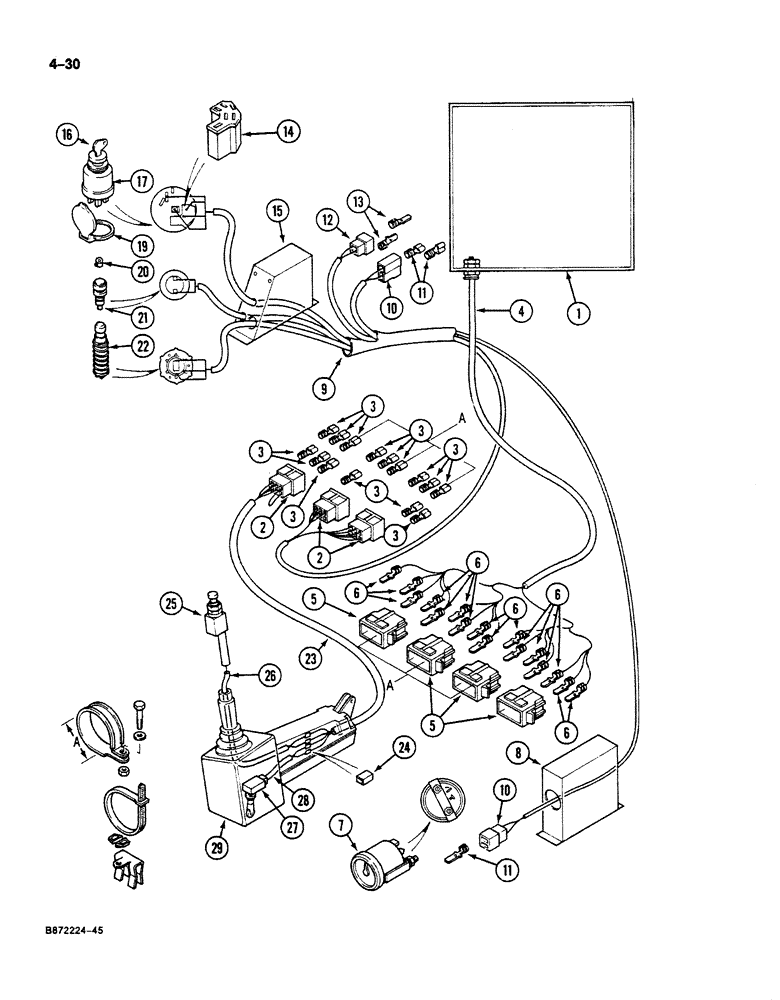

Запчасти Case 125B (4-30) - CAB ELECTRICAL HARNESS, P.I.N. 74771, 74773, 74775, 74777, THRU 74963, 21801 - 21868, 26801 & AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BOX - electrical, see Figures 4-64 through 4-70, see Figure 4-24 for cab harness connections

1шт.

2

P840757

CASE

CONNECTOR - male, 6-way

3шт.

3

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

4

P8547231

HARNESS

- wiring, electric box

1шт.

5

P740844

CASE

CONNECTOR - female, 6-way

4шт.

6

P40938

CONNECTION

RETAINER - wire

1шт.

7

P2141660

METER

HOURMETER - electric

1шт.

8

P2726370

SUPPORT

COVER AND MOUNTING BRACKET - throttle control, see Figure 3-6 (Ref. 8A)

1шт.

9

P9847204

HARNESS

- wiring, instruments, Includes: Ref. 10 - 14

1шт.

10

P440714

CASE

CONNECTOR - male, 2-way

2шт.

11

P640945

CLIP,ELECTRICAL

CLIP - wire

2шт.

12

P740848

CASE

CONNECTOR - female, 2-way

1шт.

13

P40938

CONNECTION

RETAINER - wire

1шт.

14

P1340710

CASE

CONNECTOR - harness, at key switch

1шт.

15

REF

INSTRUCTION

BRACKET - mounting, electrical components, see Figure 3-6 (Ref. 25A)

1шт.

P2741618

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 16 and 17

1шт.

16

P1352033

SET OF 2 KEYS

KEY - switch

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - electrical system

1шт.

18

RESERVED

1шт.

19

P2340476

LIGHT FAIRING

COVER - key swicth

1шт.

20

P40560

LAMP

BULB - engine preheating indicator

1шт.

21

P641648

SIGHTGLASS

INDICATOR - engine preheating

1шт.

22

P1343242

CIGAR LIGHTER

CIGARETTE LIGHTER - electric

1шт.

23

P8547227

HARNESS

- wiring, horn and safety switch control

1шт.

24

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

4шт.

P2141655

IGNITION SWITCH

BUTTON AND SWITCH ASSEMBLY - horn control, Includes: Ref. 25 and 26

1шт.

25

P1541665

SWITCH

- horn control

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - horn switch

1шт.

27

P1541649

DETECTOR

SWITCH ASSEMBLY - safety, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

HARNESS - safety switch

1шт.

29

REF

INSTRUCTION

CONSOLE - hand control valve, see Figures 9-34 through 9-40 for correct console

1шт.

P40949 IS FEMALE TERMINAL FOR 2 LARGE POSTS ON THE IGNITION SWITCH. SEE NEXMP 1-90.

1шт.
