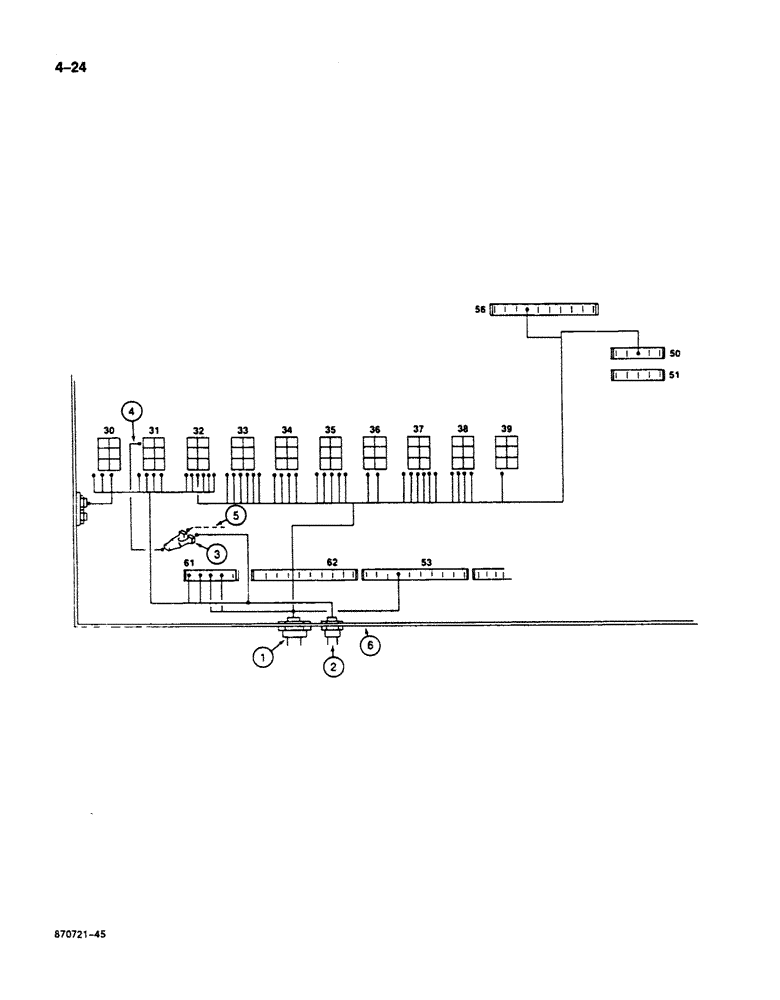

Запчасти Case 125B (4-24) - INSTRUMENT PANEL & CAB ELEC. HARNESS, HARNESS CONNECTIONS TO ELECTRICAL BOX (04) - ELECTRICAL SYSTEMS

1

P9547236

HARNESS

- instrument panel, see Figures 4-20 and 4-22

1шт.

2

REF

INSTRUCTION

HARNESS - cab wiring, see Figures 4-28 and 4-30 for correct harness

1шт.

3

P640964

FITTING

CONNECTOR - electrical, two wire

1шт.

4

P8647280

ELECTRICAL WIRE

WIRE - connector, cab harness

1шт.

5

REF

INSTRUCTION

HARNESS - engine, see Figures 4-34 and 4-36 for correct harness

1шт.

6

REF

INSTRUCTION

BOX - electrical, see Figures 4-66 through 4-70

1шт.
