(5-34) - TRACK ROLLER, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER

Запчасти Case 125B (5-34) - TRACK ROLLER, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (11) - TRACKS/STEERING

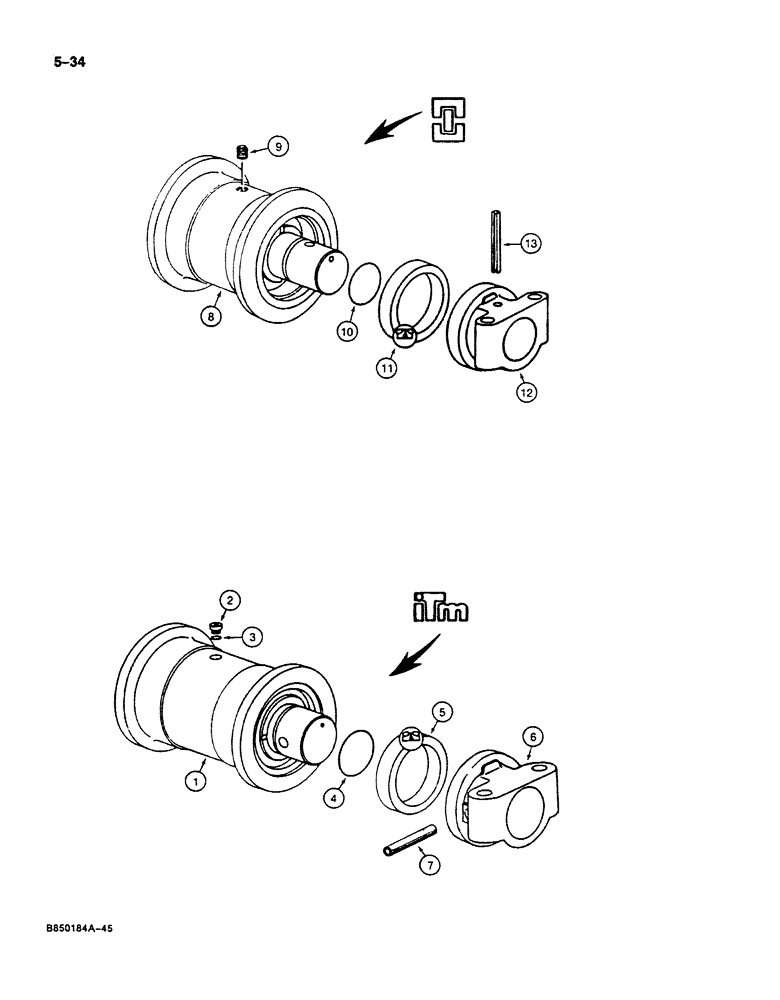

Схема запчастей Case 125B - (5-34) - TRACK ROLLER, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (11) - TRACKS/STEERING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1642330

ROLLER, TRACK

TRACK ROLLER ASSEMBLY - ITM identification, Includes: Ref. 1 - 7

18шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track, component parts not serviced separately

1шт.

2

P737448

PLUG

- filler, track roller

1шт.

3

P2230408

O-RING

- filler plug

1шт.

4

P2230409

O-RING

- roller shaft

2шт.

5

P646003

GASKET KIT

SEAL - oil, roller shaft

2шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

7

P435709

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.

P1642330

ROLLER, TRACK

TRACK ROLLER ASSEMBLY - INTERTRAC identification, Includes: Ref. 8 - 13

18шт.

8

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track, component parts not serviced separately

1шт.

9

P2537437

PLUG

- filler, track roller

1шт.

10

P6146092

SEAL

O-RING - roller shaft

2шт.

11

P7546073

SET OF GASKET

SEAL - oil, roller shaft

2шт.

12

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

13

P435709

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.
