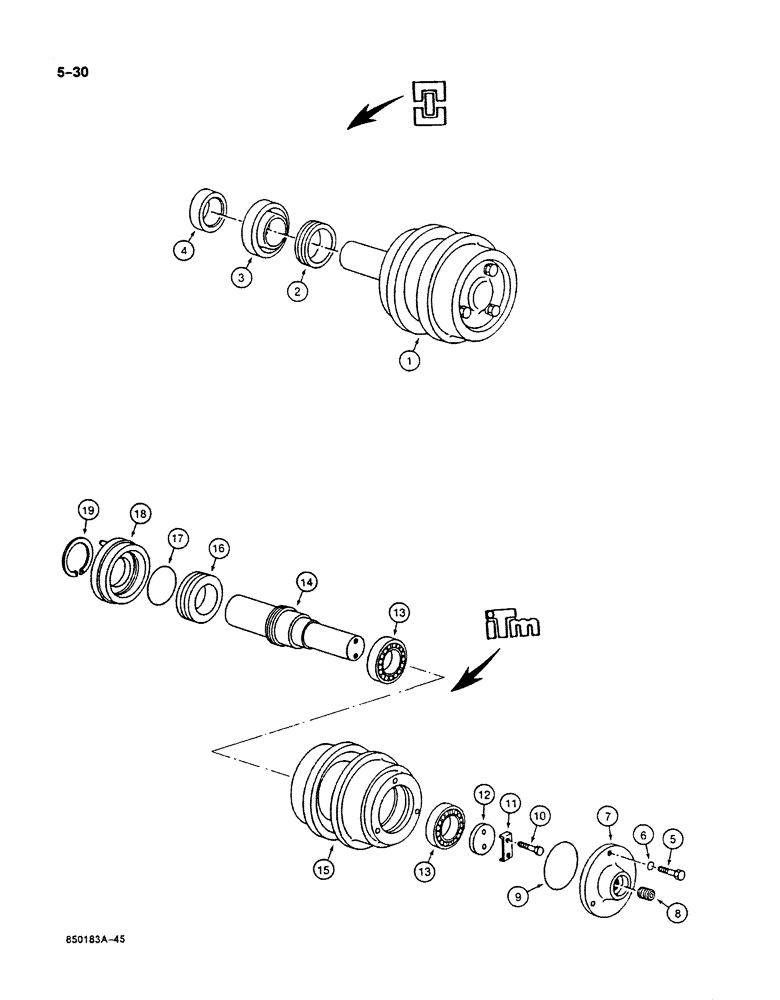

Запчасти Case 125B (5-30) - TRACK CARRIER ROLLER, P.I.N. 74251 THROUGH 74879, 21819 THROUGH 21861 (11) - TRACKS/STEERING

P1642328

ROLLER, TRACK

ROLLER ASSEMBLY - track carrier, INTERTRAC identification, Includes: Ref. 1 - 4

4шт.

1

NSS

NOT SOLD SEPARAT

ROLLER - track carrier

1шт.

2

P8846056

SET OF GASKET

SEAL - oil, carrier roller

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - oil seal

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - oil seal cover

1шт.

P1642328

ROLLER, TRACK

ROLLER ASSEMBLY - track carrier, ITM identification, if used, Includes: Ref. 5 - 19

4шт.

5

P233028

SCREW

BOLT - end cover retainer

3шт.

6

P34749

WASHER

- lock, cover bolt

3шт.

7

NSS

NOT SOLD SEPARAT

COVER - end, bearing

1шт.

8

P137420

PLUG

- filler, oil

1шт.

9

P2230414

O-RING

- end cover

1шт.

10

P1033054

SCREW

BOLT - retainer plate

2шт.

11

P1026138

BRAKE

RETAINER - bolt

1шт.

12

P545546

WASHER

PLATE - retainer, bearing

1шт.

13

P2039824

BEARING

- carrier roller

2шт.

14

P5327828

SHAFT

- carrier roller

1шт.

15

NS

NOT SERVICED

ROLLER - track carrier

1шт.

16

P346087

SET OF GASKET

SEAL - oil, carrier roller

1шт.

Ref #16 - Consists of R33607 Seal, R33602 End Plate and R33599 Seal Holder

1шт.

Ref #16 - (92 mm O.D. 3.622")

1шт.

17

P2230415

O-RING

- end cover

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - end, oil seal

1шт.

19

P936320

RING, SNAP

SNAP RING - end cover

1шт.
