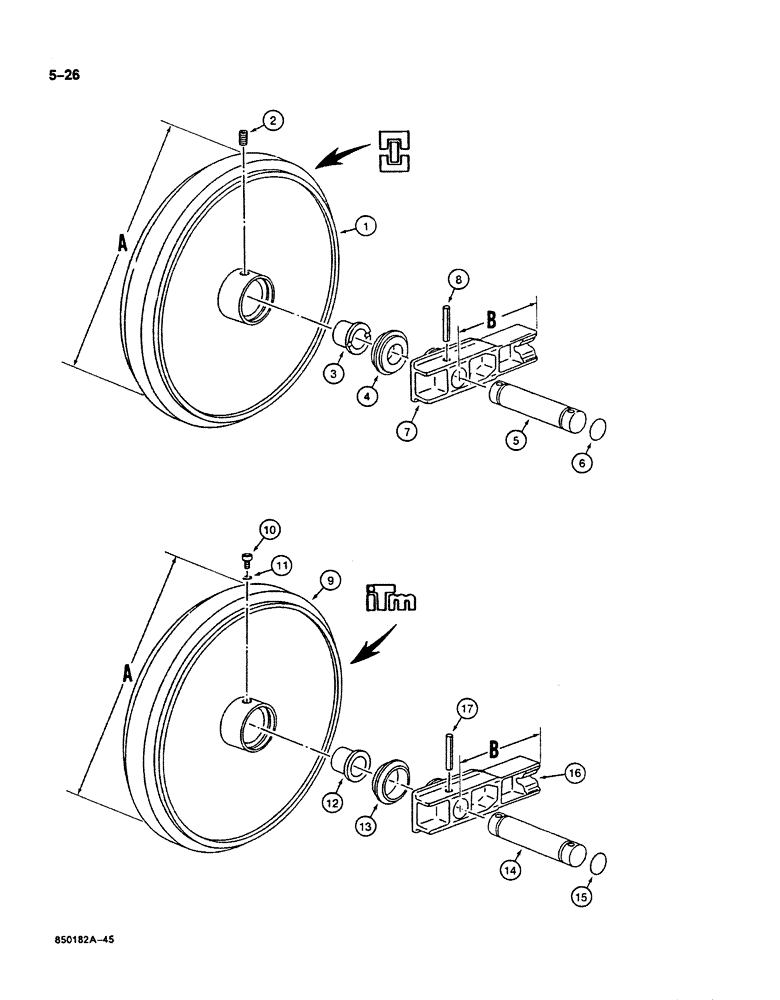

Запчасти Case 125B (5-26) - TRACK IDLER, WITH 22-13/16" (580 MM) IDLER WHEEL DIAMETER ( "A" DIMENSION), PIN 74251 THROUGH 74879 (11) - TRACKS/STEERING

P1642336

FLEETING PULLEY

IDLER ASSEMBLY - track, INTERTRAC identification, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler, diameter ("A" dimension) is 22-13/16" (580 mm)

1шт.

2

P2537437

PLUG

- filler, idler wheel

1шт.

3

P4746281

BEARING LINER

BUSHING - idler wheel

2шт.

4

P7546073

SET OF GASKET

SEAL - idler wheel

2шт.

5

P2127941

SHAFT

- idler

1шт.

6

P6146092

SEAL

O-RING - idler shaft

2шт.

7

P5028243

SUPPORT

BRACKET - idler wheel, "B" dimension is 13" (330 mm) long

2шт.

8

P435731

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

P1642336

FLEETING PULLEY

IDLER ASSEMBLY - track, ITM identification, Includes: Ref. 9 - 17

2шт.

9

NSS

NOT SOLD SEPARAT

WHEEL - idler, diameter ("A" dimension) is 22-13/16" (580 mm)

1шт.

10

P737448

PLUG

- filler, idler wheel

1шт.

11

P2230408

O-RING

- filler plug

1шт.

12

P1128685

BEARING LINER

BUSHING - idler wheel

2шт.

13

P646003

GASKET KIT

SEAL - idler wheel

2шт.

14

P5327827

SHAFT

- idler

1шт.

15

P2230409

O-RING

- idler shaft

2шт.

16

P4228250

SUPPORT

BRACKET - idler wheel, "B" dimension is 13" (330 mm) long

2шт.

17

P435709

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.
