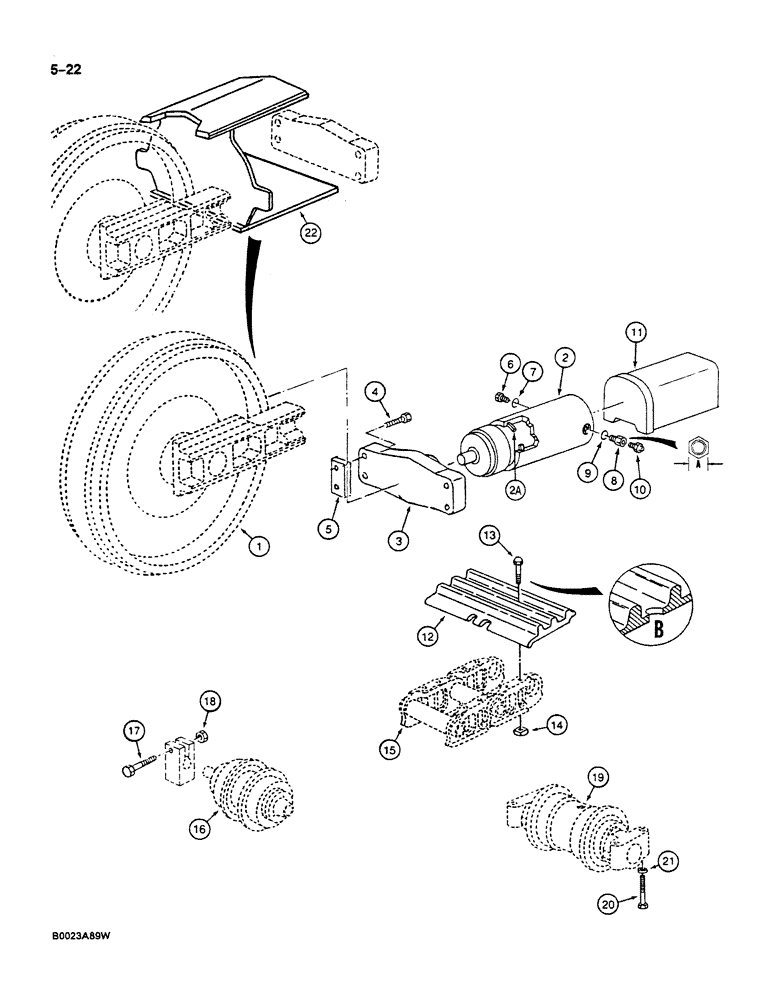

Запчасти Case 125B (5-22) - TRACK ADJUSTMENT CYLINDER AND TRACK SHOES, P.I.N. 21807 THRU 21818, 21862 THRU 21868, 26801 & AFTER (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, for correct assembly and components see Figure 5-28

2шт.

P2042332

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 2 and 2A

1шт.

Seal for the P2042332 Cylinder Assy is P9346033

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER - track adjustment

1шт.

2a

P9346033

GASKET

SEAL - track adjustment cylinder

1шт.

3

P4427176

CROSSBAR

BRACKET - mounting, track adjustment cylinder

2шт.

4

P33872

SCREW

BOLT - hex head, 20 mm x 110 mm, adjustment cylinder, Serial Range: bracket-idler

8шт.

5

P3523190

BLOCK

PLATE - spacer, Serial Range: bracket-idler

4шт.

P2537413

PLUG

ASSEMBLY - adjustment cylinder, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

PLUG - adjustment cylinder

1шт.

7

P1145268

SEAL

- plug

1шт.

P2643387

ADAPTER

ASSEMBLY - grease fitting, "A" dimension is 1" (27 mm), Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting

1шт.

9

J45801

LUBE NIPPLE,M8 x 1.25

- track adjustment M8 x 1.25

1шт.

10

P1145268

SEAL

- adapter

1шт.

11

P4427161

SPACER

RETAINER - track adjustment cylinder

2шт.

12

P1942310

TRACK SHOE

- grouser, 30" (750 mm) long, identified by hole detail "B"

100шт.

12

P1942311

TRACK SHOE

- grouser, 36" (900 mm) long, identified by hole detail "B"

100шт.

13

P3333001

SCREW

BOLT - special, track shoe

400шт.

14

P2434519

NUT

- special, track shoe

400шт.

15

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-36 for chain identification and parts list

2шт.

16

REF

INSTRUCTION

ROLLER ASSEMBLY - track carrier, for correct assembly and components see Figure 5-32

4шт.

17

P133801

SCREW

BOLT - hex head, 24 mm x 130 mm

4шт.

18

P134566

SAFETY NUT

NUT - hex, self-locking, 24 mm

4шт.

19

REF

INSTRUCTION

ROLLER ASSEMBLY - track, see Figure 5-34 for roller identification and parts list

18шт.

20

P133835

SCREW

BOLT - hex head, 20 mm x 100 mm, track, Serial Range: roller-frame

72шт.

21

P4328747

WASHER

SPACER - track roller bolt, 14 mm thick

72шт.

22

P4540359

BLANK-OFF PLUG

GUARD - idler wheel and adjustment cylinder, optional

2шт.
